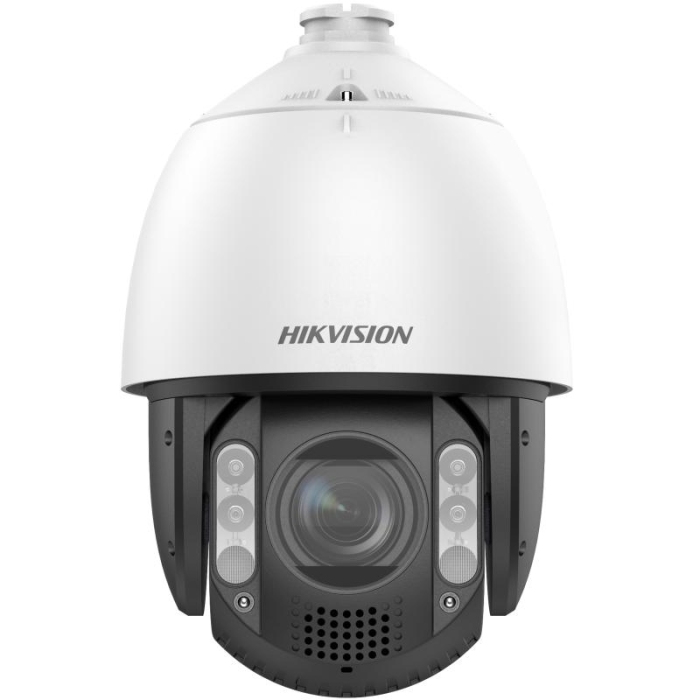

Hikvision DS-2DE7A220MCG-EB 2MP 20x Zoom ColorVu AcuSense 7-inch PTZ Dome Camera 150m IR
The Hikvision DS-2DE7A220MCG-EB 2MP 20x Zoom ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 7-inch PTZ Dome Camera 150m IR is a 2MP 7-inch PTZ Dome IP camera with ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 20x optical zoom and 150 m IR / 100 m white light night vision. Hikvision model name: 7-inch 2 MP 20X ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 Network Speed Dome.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 2MP (1920 × 1080) resolution, 1/1.8" Progressive Scan CMOS sensor
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 - full-colour images 24/7, even in very low light
- Audio and visual alarm - white flashing light and audible warning triggered by events
- 20x optical zoom and 16x digital zoom for close-up views over large areas
- Up to 150 m IR and 100 m white-light night vision
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies human and vehicle targets, cutting false alarms
- Face capture - up to 5 faces at the same time
- 360° pan, -15° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- IP67 weatherproof / IK10 vandal-resistant
- MicroSD slot up to 512 GB
- Alarm I/O: 2 inputs, 1 output; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: Hi-PoE injector / switch, or 24 VAC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2DE7A220MCG-EB 2MP 20x Zoom ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 7-inch PTZ Dome Camera 150m IR — IP PTZ Camera
2MP 7-inch PTZ Dome IP camera with ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 20x optical zoom and 150 m IR / 100 m white light night vision. Hikvision: 7-inch 2 MP 20X ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 Network Speed Dome.
Overview
The Hikvision DS-2DE7A220MCG-EB 2MP 20x Zoom ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 7-inch PTZ Dome Camera 150m IR is a 2MP 7-inch PTZ Dome IP camera with ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 20x optical zoom and 150 m IR / 100 m white light night vision. Its 20x optical zoom (6.7 mm to 134 mm) brings distant subjects in for identification while the pan-tilt mechanism (360° pan, -15° to 90° (auto flip) tilt) covers the whole scene from a single mounting point. It sees in colour down to 0.0005 lux and in black-and-white to 0.0001 lux (0 lux with the built-in illuminator). 120 dB wide dynamic range handles scenes with strong backlight. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics classify people and vehicles so alarms are not triggered by animals, foliage or weather. ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 delivers full-colour video at night where conventional cameras switch to black-and-white. Smart tracking (manual tracking, auto-tracking) follows a moving target automatically. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 2MP (1920 × 1080) resolution, 1/1.8" Progressive Scan CMOS sensor
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 - full-colour images 24/7, even in very low light
- Audio and visual alarm - white flashing light and audible warning triggered by events
- 20x optical zoom and 16x digital zoom for close-up views over large areas
- Up to 150 m IR and 100 m white-light night vision
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies human and vehicle targets, cutting false alarms
- Face capture - up to 5 faces at the same time
- 360° pan, -15° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- IP67 weatherproof / IK10 vandal-resistant
- MicroSD slot up to 512 GB
- Alarm I/O: 2 inputs, 1 output; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: Hi-PoE injector / switch, or 24 VAC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Car parks, forecourts and yards - one PTZ covers what several fixed cameras would
- Perimeters and open sites - long-range zoom for identification
- Operator-monitored sites - joystick / keyboard control and preset patrols
- Retail parks, town centres and public spaces - full-colour evidence at night
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- Hikvision Hi-PoE injectors / switches (DS-1H range) or a 24 VAC PSU
- Hikvision PTZHikvision PTZ Camera Installer Guide 2026 wall, corner, pole and pendant mounts (DS-1602ZJ / DS-1604ZJ / DS-1691ZJ range)
What's in the Box
- 1 × Hikvision DS-2DE7A220MCG-EB 2MP 20x Zoom ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 7-inch PTZ Dome Camera 150m IR
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2DE7A220MCG-EB 2MP 20x Zoom ColorVu AcuSense 7-inch PTZ Dome Camera 150m IR
Specifications as published by Hikvision (18-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2DE7A220MCG-EB(B) |
| MPN | DS-2DE7A220MCG-EB(B) |
| EAN | 6942160483269 |
| Brand | Hikvision |
| Hikvision product name | 7-inch 2 MP 20X ColorVu Network Speed Dome |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.0005Lux @ (F1.2, AGC ON), B/W:0.0001Lux @ (F1.2, AGC ON), 0 lux with light |
| Shutter Speed | 1/1 s to 1/30000 s |
| Day & Night | IR cut filter |
| Zoom | 20 × optical, 16 × digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 6.7 mm to 134 mm |
| FOV | Horizontal field of view: 53° to 4.9° (wide-tele), Vertical field of view: 31.3° to 2.7° (wide-tele), Diagonal field of view: 59.6° to 5.6° (wide-tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.2 |
| Zoom Speed | Approx. 7 s |
| Illuminator | |
| Supplement Light Type | Hybrid(IR and White Light) |
| Supplement Light Range | White light: up to 100 m IR: up to 150 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | Preset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) |
| Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16kHz, 32kHz, 48kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE11, Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | > 52 dB |
| Defog | Digital defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Speaker | 1 built-in speaker with effective distance reaching max. 30 meters |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 2 inputs, 1 output |
| Reset | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Smart Tracking | Manual tracking, auto-tracking |
| Deep Learning Function | |
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| General | |
| Power | 24 VAC, max. 42 W (including max. 12 W for IR and max. 2 W for heater); Hi-PoE |
| Dimension | Ø 220 mm × 357.3 mm (Ø8.66" × 14.07") |
| Weight | Approx. 5.5 kg (12.13 lb.) |
| Material | ADC12 |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Demist | Yes |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6000 V lightning protection, surge protection and voltage transient protection |
Frequently Asked Questions
What zoom does the Hikvision DS-2DE7A220MCG-EB(B) have?
20x optical zoom (6.7 mm to 134 mm) plus 16x digital zoom.
What is the night-vision range?
150 m IR / 100 m white light (hybrid IR + white light illuminator).
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range, plus digital defog.
Does it reduce false alarms?
Yes — deep-learning analytics classify people and vehicles; detects up to 5 faces simultaneously.
Can it track a moving target automatically?
Yes — Manual tracking, auto-tracking.
How is it powered?
24 VAC, max. 42 W (including max. 12 W for IR and max. 2 W for heater); Hi-PoE.
Is it suitable for outdoor use?
Yes — IP67 and IK10 vandal-resistant; operating range -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing).
Does it record locally?
Yes — Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, plus NAS and NVR recording.
What alarm and audio connections does it have?
Alarm: 2 inputs, 1 output. Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω. 1 built-in speaker with effective distance reaching max. 30 meters.
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
Documentation — Hikvision DS-2DE7A220MCG-EB 2MP 20x Zoom ColorVu AcuSense 7-inch PTZ Dome Camera 150m IR
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2DE7A220MCG-EB(B) Data Sheet (official PDF) | Download | |
| Hikvision DS-2DE7A220MCG-EB(B) Quick Start Guide (official PDF) | Download | |
| Hikvision DS-2DE7A220MCG-EB(B) User Manual (official PDF) | Download | |
| Hikvision DS-2DE7A220MCG-EB(B) product page | Web | View on hikvision.com |
| Hikvision PTZ Camera Installer Guide 2026 | Web | Read the guide |
| Browse all Hikvision IP PTZ Cameras | Web | View IP PTZ Cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester). Trade pricing: 0116 3800 838 or [email protected].
