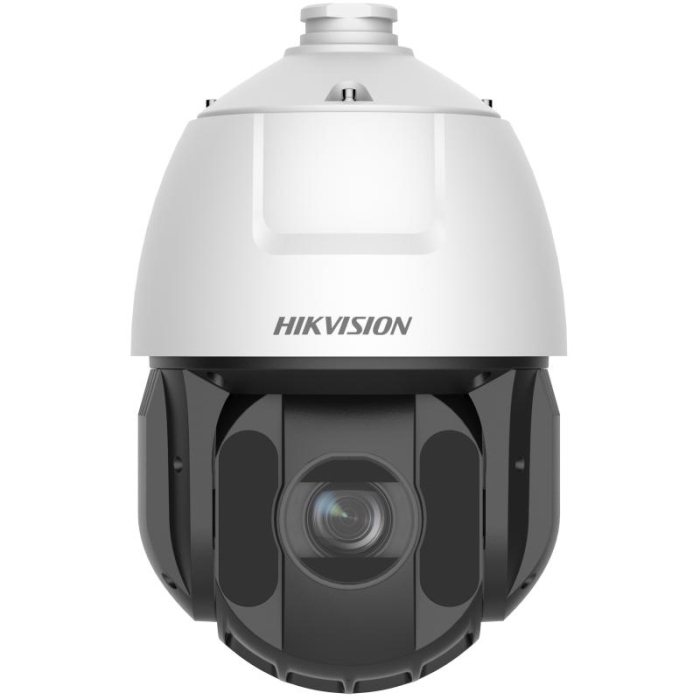

Hikvision DS-2DE5425IWG-4G 4MP 25x Zoom 5-inch PTZ Dome Camera 150m IR 4G
The Hikvision DS-2DE5425IWG-4G 4MP 25x Zoom 5-inch PTZ Dome Camera 150m IR 4G is a 4MP 5-inch PTZ Dome IP camera with 4G, 25x optical zoom and 150 m IR night vision. Hikvision model name: 4MP 25X Pro Solar-powered Security PTZ Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4MP (2560 × 1440) resolution, 1/2.8" progressive scan CMOS sensor
- Performance mode and low-power mode for solar / battery operation
- Low-power mode 3 W, sleep mode 0.3 W
- Built-in heating glass for effective defog
- IP66 weatherproof
- Built-in eMMC storage up to 256 GB
- Wi-Fi AP mode for short-range setup and debugging
- Up to 150 m IR night vision
- 360° pan, -15° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- MicroSD slot up to 256 GB
- Alarm I/O: 2 alarm inputs; audio in/out
- 4G LTE connectivity (SIM slot) for sites without network cabling - Wi-Fi AP for local setup
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: 12 VDC PSU (or the Hikvision solar / battery kit)
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF
Hikvision DS-2DE5425IWG-4G 4MP 25x Zoom 5-inch PTZ Dome Camera 150m IR 4G — IP PTZ Camera
4MP 5-inch PTZ Dome IP camera with 4G, 25x optical zoom and 150 m IR night vision. Hikvision: 4MP 25X Pro Solar-powered Security PTZ Camera.
Overview
The Hikvision DS-2DE5425IWG-4G 4MP 25x Zoom 5-inch PTZ Dome Camera 150m IR 4G is a 4MP 5-inch PTZ Dome IP camera with 4G, 25x optical zoom and 150 m IR night vision. Its 25x optical zoom (4.8 mm to 120 mm) brings distant subjects in for identification while the pan-tilt mechanism (360° pan, -15° to 90° (auto flip) tilt) covers the whole scene from a single mounting point. It sees in colour down to 0.05 lux and in black-and-white to 0.01 lux (0 lux with the built-in illuminator). 120 dB wide dynamic range handles scenes with strong backlight. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4MP (2560 × 1440) resolution, 1/2.8" progressive scan CMOS sensor
- Performance mode and low-power mode for solar / battery operation
- Low-power mode 3 W, sleep mode 0.3 W
- Built-in heating glass for effective defog
- IP66 weatherproof
- Built-in eMMC storage up to 256 GB
- Wi-Fi AP mode for short-range setup and debugging
- Up to 150 m IR night vision
- 360° pan, -15° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- MicroSD slot up to 256 GB
- Alarm I/O: 2 alarm inputs; audio in/out
- 4G LTE connectivity (SIM slot) for sites without network cabling - Wi-Fi AP for local setup
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: 12 VDC PSU (or the Hikvision solar / battery kit)
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF
Typical Applications
- Car parks, forecourts and yards - one PTZ covers what several fixed cameras would
- Perimeters and open sites - long-range zoom for identification
- Operator-monitored sites - joystick / keyboard control and preset patrols
- Night-time surveillance with long-range IR illumination
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS
- 12 VDC power supply, or the Hikvision solar panel + battery kit
- Hikvision PTZHikvision PTZ Camera Installer Guide 2026 wall, corner, pole and pendant mounts (DS-1602ZJ / DS-1604ZJ / DS-1691ZJ range)
What's in the Box
- 1 × Hikvision DS-2DE5425IWG-4G 4MP 25x Zoom 5-inch PTZ Dome Camera 150m IR 4G
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2DE5425IWG-4G 4MP 25x Zoom 5-inch PTZ Dome Camera 150m IR 4G
Specifications as published by Hikvision (18-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2DE5425IWG-4G |
| MPN | DS-2DE5425IWG-4G |
| EAN | 6942160426877 |
| Brand | Hikvision |
| Hikvision product name | 4MP 25X Pro Solar-powered Security PTZ Camera |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | color: 0.05Lux @ (F1.6，AGC ON), B/W: 0.01Lux @(F1.6，AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s~1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 25 × optical,16 × digital |
| Slow Shutter | yes |
| Lens | |
| Focal Length | 4.8 mm~120 mm |
| FOV | Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele) |
| Focus | semi-auto, manual, auto |
| Aperture | F1.6 |
| Zoom Speed | approx.3.6s |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | IR distance: up to 150 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| Proportional Pan | yes |
| Presets | 300 |
| Preset Freezing | yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Scheduled Task | preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power-off Memory | yes |
| Video | |
| Main Stream | 50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） 60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） |
| Sub-Stream | 50 Hz：25 fps（704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（704 × 480，640 × 480，352 × 240） |
| Third Stream | 50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240） |
| Video Compression | H.265, H.264, MJPEG |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | yes |
| Region of Interest (ROI) | fixed region |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC |
| Audio Sampling Rate | MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, Bonjour, WebSocket, WebSockets |
| API | Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect, ISUP, Open Network Video Interface |
| User/Host | 32 |
| Security | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| Client | iVMS-4200 |
| Web Browser | Chrome 57+、Firefox 52+、Safari 12+, IE10-11 |
| Wireless (Wi-Fi) | |
| Wireless Range | Up to 20 m (The performance varies based on actual environment) |
| Wireless (Mobile Communication) | |
| Frequency | LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE |
| Standard | LTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH |
| Image | |
| Image Parameters Switch | yes |
| Image Settings | saturation, brightness, contrast, sharpness |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ＞52dB |
| Defog | yes |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | up to 24 masks, mask color configurable |
| Regional Focus | yes |
| Regional Exposure | yes |
| Interface | |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Audio | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω |
| Alarm | 2 alarm inputs |
| Reset | yes |
| Power Output | 12 VDC, max. 1000 mA |
| Event | |
| Basic Event | motion detection, alarm input, alarm output, video tampering alarm, exception |
| Smart Event | face detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Linkage | preset, patrol scan, pattern scan, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording |
| General | |
| Power | 12 VDC |
| Dimension | Ø208 mm × 344.8 mm |
| Weight | Approx. 3.5 kg (7.7 lb.) |
| Material | Metal |
| Operating Condition | -30℃ to 65℃ (-22°F to 149°F) |
| Demist | yes |
| Power Consumption and Current | Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater); |
| Approval | |
| Protection | IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Frequently Asked Questions
What zoom does the Hikvision DS-2DE5425IWG-4G have?
25x optical zoom (4.8 mm to 120 mm) plus 16x digital zoom.
What is the night-vision range?
150 m IR (IR illuminator).
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range, plus defog.
How is it powered?
12 VDC.
Is it suitable for outdoor use?
Yes — IP66; operating range -30℃ to 65℃ (-22°F to 149°F).
Does it record locally?
Yes — Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, plus NAS and NVR recording.
What alarm and audio connections does it have?
Alarm: 2 alarm inputs. Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω.
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
Documentation — Hikvision DS-2DE5425IWG-4G 4MP 25x Zoom 5-inch PTZ Dome Camera 150m IR 4G
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2DE5425IWG-4G Data Sheet (official PDF) | Download | |
| Hikvision DS-2DE5425IWG-4G Quick Start Guide (official PDF) | Download | |
| Hikvision DS-2DE5425IWG-4G User Manual (official PDF) | Download | |
| Hikvision DS-2DE5425IWG-4G product page | Web | View on hikvision.com |
| Hikvision PTZ Camera Installer Guide 2026 | Web | Read the guide |
| Browse all Hikvision IP PTZ Cameras | Web | View IP PTZ Cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester). Trade pricing: 0116 3800 838 or [email protected].
