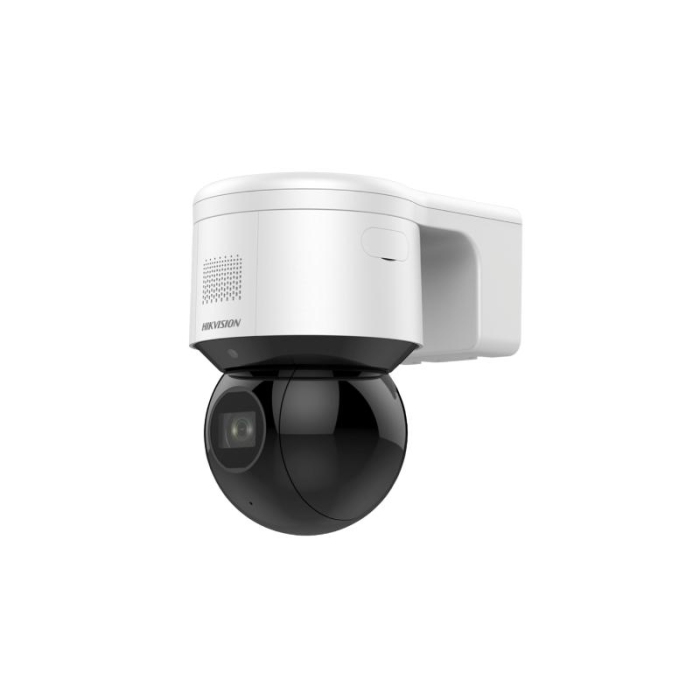

Hikvision DS-2DE3A404IWG-E/W 4MP 4x Zoom DarkFighter AcuSense Wi-Fi 3-inch Mini PT Dome Camera 50m IR
The Hikvision DS-2DE3A404IWG-E/W 4MP 4x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Wi-Fi 3-inch Mini PT Dome Camera 50m IR is a 4MP 3-inch Mini PT Dome IP camera with DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / Wi-Fi, 4x optical zoom and 50 m IR night vision. Hikvision model name: 4 MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4MP (2560 × 1440) resolution, 1/2.8" progressive scan CMOS sensor
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies human and vehicle targets, cutting false alarms
- DarkFighter ultra-low-light imaging
- 120 dB WDR for clear images against strong backlight
- 4x optical zoom for close-up views over large areas
- Up to 50 m IR night vision
- Wi-Fi (2.4 GHz) connection as well as wired PoE - easy installation
- Audio and visual alarm - white flashing light and audible warning triggered by events
- 0° to 350° pan, 0° to 90° tilt; 300 presets, 8 patrols
- IP66 weatherproof
- MicroSD slot up to 256 GB
- Alarm I/O: 1 input, 1 output; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE+ (802.3at) switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF
Hikvision DS-2DE3A404IWG-E/W 4MP 4x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Wi-Fi 3-inch Mini PT Dome Camera 50m IR — IP PTZ Camera
4MP 3-inch Mini PT Dome IP camera with DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / Wi-Fi, 4x optical zoom and 50 m IR night vision. Hikvision: 4 MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera.
Overview
The Hikvision DS-2DE3A404IWG-E/W 4MP 4x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Wi-Fi 3-inch Mini PT Dome Camera 50m IR is a 4MP 3-inch Mini PT Dome IP camera with DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / Wi-Fi, 4x optical zoom and 50 m IR night vision. Its 4x optical zoom (2.8 to 12 mm) brings distant subjects in for identification while the pan-tilt mechanism (0° to 350° pan, 0° to 90° tilt) covers the whole scene from a single mounting point. It sees in colour down to 0.005 lux and in black-and-white to 0.001 lux (0 lux with the built-in illuminator). 120 dB wide dynamic range handles scenes with strong backlight. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics classify people and vehicles so alarms are not triggered by animals, foliage or weather. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4MP (2560 × 1440) resolution, 1/2.8" progressive scan CMOS sensor
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies human and vehicle targets, cutting false alarms
- DarkFighter ultra-low-light imaging
- 120 dB WDR for clear images against strong backlight
- 4x optical zoom for close-up views over large areas
- Up to 50 m IR night vision
- Wi-Fi (2.4 GHz) connection as well as wired PoE - easy installation
- Audio and visual alarm - white flashing light and audible warning triggered by events
- 0° to 350° pan, 0° to 90° tilt; 300 presets, 8 patrols
- IP66 weatherproof
- MicroSD slot up to 256 GB
- Alarm I/O: 1 input, 1 output; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE+ (802.3at) switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF
Typical Applications
- Shops, offices, driveways and small sites - one compact PT camera covers the whole area
- Homes and small business - pan / tilt from the Hik-Connect app
- Entrances and reception areas - zoom in on faces and vehicles
- Night-time surveillance with long-range IR illumination
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS
- PoE+ (802.3at) switches and injectors or a 12 VDC PSU
- Hikvision mini PT dome wall and pendant brackets
What's in the Box
- 1 × Hikvision DS-2DE3A404IWG-E/W 4MP 4x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Wi-Fi 3-inch Mini PT Dome Camera 50m IR
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2DE3A404IWG-E/W 4MP 4x Zoom DarkFighter AcuSense Wi-Fi 3-inch Mini PT Dome Camera 50m IR
Specifications as published by Hikvision (19-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2DE3A404IWG-E/W |
| MPN | DS-2DE3A404IWG-E/W |
| EAN | 6931847199364 |
| Brand | Hikvision |
| Hikvision product name | 4 MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR |
| Shutter Speed | 1 to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 4 × optical, 16 × digital |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| FOV | Horizontal field of view: 96.7° to 31.6° (wide-tele) Vertical field of view: 51.1° to 17.7° (wide-tele) Diagonal field of view: 115.1° to 36.3° (wide-tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.5 |
| Zoom Speed | Approx. 2 s (optical lens, wide-tele) |
| Illuminator | |
| Supplement Light Range | IR distance: up to 50 m, white light distance: up to 6 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 0° to 350° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s |
| Tilt Speed | Configurable, from 0.1°/s to 50°/s. Preset speed: 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Park Action | Preset,Patrol Scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset,Patrol Scan,dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile/main profile/high profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface, ISAPI, SDK, ISUP |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral, Hik-Connect *Wi-Fi connection with Hik-Connect directly is not possible. |
| Web Browser | IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+ |
| Wireless (Wi-Fi) | |
| Encryption Mode | 64/128-bit WEP,WPA/WPA2,WPS |
| Wi-Fi Protocols | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz - 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Transfer Rate | 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: mcs0 - msc7 |
| Wireless Range | Up to 150 m (The performance varies based on actual environment) |
| Antenna | Built-in 2 antennas |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| Defog | Digital defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone | 1 built-in microphone |
| Built-in Speaker | 1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm) |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 1 input, 1 output |
| Power Output | 12 VDC, max. 60 mA |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output |
| Smart Event | Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Linkage | Preset, Patrol Scan, Upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning, Flashing Alarm |
| Deep Learning Function | |
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle |
| General | |
| Power | 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 16 W (including max. 2.4 W for IR, 1.2 W for white light flashing) |
| Dimension | 179.3 mm × 120.5 mm × 182 mm (7.06" × 4.74" × 7.17") |
| Weight | Approx. 1.125 kg (2.48 lb.) |
| Material | ADC12 + PC |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Approval | |
| Protection | IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection |
Frequently Asked Questions
What zoom does the Hikvision DS-2DE3A404IWG-E/W have?
4x optical zoom (2.8 to 12 mm) plus 16x digital zoom.
What is the night-vision range?
50 m IR.
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range, plus digital defog.
Does it reduce false alarms?
Yes — deep-learning analytics classify people and vehicles.
How is it powered?
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 16 W (including max. 2.4 W for IR, 1.2 W for white light flashing).
Is it suitable for outdoor use?
Yes — IP66; operating range -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing).
Does it record locally?
Yes — Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, plus NAS and NVR recording.
What alarm and audio connections does it have?
Alarm: 1 input, 1 output. Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω. 1 built-in microphone. 1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm).
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
Documentation — Hikvision DS-2DE3A404IWG-E/W 4MP 4x Zoom DarkFighter AcuSense Wi-Fi 3-inch Mini PT Dome Camera 50m IR
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2DE3A404IWG-E/W Data Sheet (official PDF) | Download | |
| Hikvision DS-2DE3A404IWG-E/W Quick Start Guide (official PDF) | Download | |
| Hikvision DS-2DE3A404IWG-E/W User Manual (official PDF) | Download | |
| Hikvision DS-2DE3A404IWG-E/W product page | Web | View on hikvision.com |
| Hikvision PTZ Camera Installer Guide 2026 | Web | Read the guide |
| Browse all Hikvision IP PTZ Cameras | Web | View IP PTZ Cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
