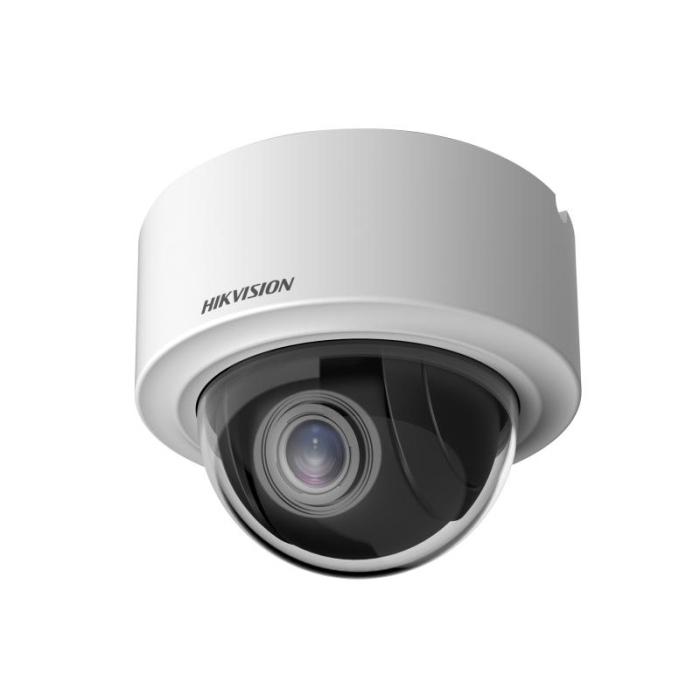

Hikvision DS-2DE3404W-DE 4MP 4x Zoom 3-inch Mini PT Dome Camera
The Hikvision DS-2DE3404W-DE 4MP 4x Zoom 3-inch Mini PT Dome Camera is a 4MP 3-inch Mini PT Dome IP camera with Hikvision smart features, 4x optical zoom (no built-in illuminator). Hikvision model name: 3-inch 4 MP 4x Zoom Mini PT Dome Network Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4MP (2560 × 1440) resolution, 1/2.8" progressive scan CMOS sensor
- 120 dB WDR for clear images against strong backlight
- 4x optical zoom for close-up views over large areas
- IP66 weatherproof
- 350° pan, 0° to 90° tilt; 300 presets, 8 patrols
- IK10 vandal-resistant
- MicroSD slot up to 256 GB
- Alarm I/O: 1 input, 1 output; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF
Hikvision DS-2DE3404W-DE 4MP 4x Zoom 3-inch Mini PT Dome Camera — IP PTZ Camera
4MP 3-inch Mini PT Dome IP camera with Hikvision smart features, 4x optical zoom (no built-in illuminator). Hikvision: 3-inch 4 MP 4x Zoom Mini PT Dome Network Camera.
Overview
The Hikvision DS-2DE3404W-DE 4MP 4x Zoom 3-inch Mini PT Dome Camera is a 4MP 3-inch Mini PT Dome IP camera with Hikvision smart features, 4x optical zoom (no built-in illuminator). Its 4x optical zoom (2.8 to 12 mm) brings distant subjects in for identification while the pan-tilt mechanism (350° pan, 0° to 90° tilt) covers the whole scene from a single mounting point. It sees in colour down to 0.005 lux and in black-and-white to 0.001 lux. 120 dB wide dynamic range handles scenes with strong backlight. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4MP (2560 × 1440) resolution, 1/2.8" progressive scan CMOS sensor
- 120 dB WDR for clear images against strong backlight
- 4x optical zoom for close-up views over large areas
- IP66 weatherproof
- 350° pan, 0° to 90° tilt; 300 presets, 8 patrols
- IK10 vandal-resistant
- MicroSD slot up to 256 GB
- Alarm I/O: 1 input, 1 output; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF
Typical Applications
- Shops, offices, driveways and small sites - one compact PT camera covers the whole area
- Homes and small business - pan / tilt from the Hik-Connect app
- Entrances and reception areas - zoom in on faces and vehicles
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS
- PoE switches and injectors or a 12 VDC PSU
- Hikvision mini PT dome wall and pendant brackets
What's in the Box
- 1 × Hikvision DS-2DE3404W-DE 4MP 4x Zoom 3-inch Mini PT Dome Camera
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2DE3404W-DE 4MP 4x Zoom 3-inch Mini PT Dome Camera
Specifications as published by Hikvision (18-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2DE3404W-DE(T5) |
| MPN | DS-2DE3404W-DE(T5) |
| EAN | 6931847140632 |
| Brand | Hikvision |
| Hikvision product name | 3-inch 4 MP 4x Zoom Mini PT Dome Network Camera |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON) |
| Shutter Speed | 1/1 to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 4 × optical, 16 × digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| FOV | Horizontal field of view: 93.8° to 31.7° (wide-tele) Vertical field of view: 50.9° to 17.9° (wide-tele) Diagonal field of view: 110.3° to 36.1° (wide-tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.5 |
| Zoom Speed | Approx. 2.0 s |
| PTZ | |
| Movement Range (Pan) | 350° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps |
| Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHz; PCM: 8kHz, 16kHz, 32kHz, 48kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | ISUP, ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200, Hik-Connect, HikCentral |
| Web Browser | Firefox 52+, Safari 11+, Chrome 57+, IE11 |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 1 input, 1 output |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan) |
| General | |
| Power | 12 VDC, PoE (802.3af) Max. 10 W |
| Dimension | Ø140.7 mm × 107.2 mm (Ø5.54" × 4.22") |
| Weight | Approx. 950 g (2.09 lb.) |
| Material | ADC12, PC |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| General Function | Privacy mask, mirror, password protection, watermark, IP address filter |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP66 (IEC 60529-2013), TVS 4000V lightning protection, surge protection and voltage transient protection |
Frequently Asked Questions
What zoom does the Hikvision DS-2DE3404W-DE(T5) have?
4x optical zoom (2.8 to 12 mm) plus 16x digital zoom.
Does it have night vision?
There is no built-in illuminator; it relies on its low-light sensor (Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON)) and any external lighting or IR illuminator on site.
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range, plus digital defog.
How is it powered?
12 VDC, PoE (802.3af) Max. 10 W.
Is it suitable for outdoor use?
Yes — IP66 and IK10 vandal-resistant; operating range -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing).
Does it record locally?
Yes — Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, plus NAS and NVR recording.
What alarm and audio connections does it have?
Alarm: 1 input, 1 output. Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω.
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF.
Documentation — Hikvision DS-2DE3404W-DE 4MP 4x Zoom 3-inch Mini PT Dome Camera
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2DE3404W-DE(T5) Data Sheet (official PDF) | Download | |
| Hikvision DS-2DE3404W-DE(T5) User Manual (official PDF) | Download | |
| Hikvision DS-2DE3404W-DE(T5) product page | Web | View on hikvision.com |
| Hikvision PTZ Camera Installer Guide 2026 | Web | Read the guide |
| Browse all Hikvision IP PTZ Cameras | Web | View IP PTZ Cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester). Trade pricing: 0116 3800 838 or [email protected].
