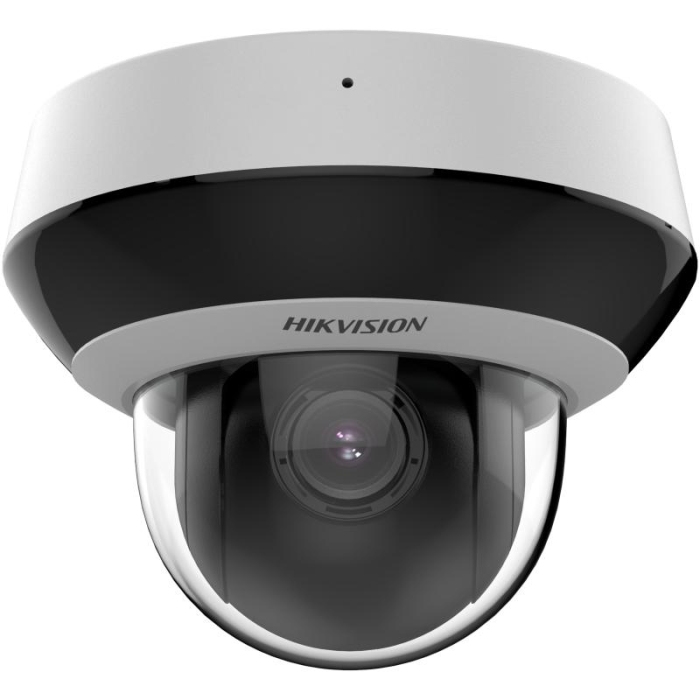

Hikvision DS-2DE2A404IWG1-E 4MP 4x Zoom DarkFighter AcuSense 2-inch Mini PT Dome Camera 20m IR
The Hikvision DS-2DE2A404IWG1-E 4MP 4x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 2-inch Mini PT Dome Camera 20m IR is a 4MP 2-inch Mini PT Dome IP camera with DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 4x optical zoom and 20 m IR night vision. Hikvision model name: 4MP 4X IR Mini Outdoor AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide PTZ Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4MP (2560 × 1440) resolution, 1/2.8" Progressive Scan CMOS sensor
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies human and vehicle targets, cutting false alarms
- DarkFighter ultra-low-light imaging
- 4x optical zoom for close-up views over large areas
- Built-in microphone and speaker for two-way audio
- Up to 20 m IR night vision
- IP66 weatherproof and IK10 vandal-resistant
- 0° to 355° pan, 0° to 90° tilt; 300 presets
- MicroSD slot up to 512 GB
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2DE2A404IWG1-E 4MP 4x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 2-inch Mini PT Dome Camera 20m IR — IP PTZ Camera
4MP 2-inch Mini PT Dome IP camera with DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 4x optical zoom and 20 m IR night vision. Hikvision: 4MP 4X IR Mini Outdoor AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide PTZ Camera.
Overview
The Hikvision DS-2DE2A404IWG1-E 4MP 4x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 2-inch Mini PT Dome Camera 20m IR is a 4MP 2-inch Mini PT Dome IP camera with DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 4x optical zoom and 20 m IR night vision. Its 4x optical zoom (2.8 to 12 mm) brings distant subjects in for identification while the pan-tilt mechanism (0° to 355° pan, 0° to 90° tilt) covers the whole scene from a single mounting point. It sees in colour down to 0.005 lux and in black-and-white to 0.001 lux (0 lux with the built-in illuminator). 120 dB wide dynamic range handles scenes with strong backlight. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics classify people and vehicles so alarms are not triggered by animals, foliage or weather. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4MP (2560 × 1440) resolution, 1/2.8" Progressive Scan CMOS sensor
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies human and vehicle targets, cutting false alarms
- DarkFighter ultra-low-light imaging
- 4x optical zoom for close-up views over large areas
- Built-in microphone and speaker for two-way audio
- Up to 20 m IR night vision
- IP66 weatherproof and IK10 vandal-resistant
- 0° to 355° pan, 0° to 90° tilt; 300 presets
- MicroSD slot up to 512 GB
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Shops, offices, driveways and small sites - one compact PT camera covers the whole area
- Homes and small business - pan / tilt from the Hik-Connect app
- Entrances and reception areas - zoom in on faces and vehicles
- Night-time surveillance with long-range IR illumination
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- PoE switches and injectors or a 12 VDC PSU
- Hikvision mini PT dome wall and pendant brackets
What's in the Box
- 1 × Hikvision DS-2DE2A404IWG1-E 4MP 4x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 2-inch Mini PT Dome Camera 20m IR
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2DE2A404IWG1-E 4MP 4x Zoom DarkFighter AcuSense 2-inch Mini PT Dome Camera 20m IR
Specifications as published by Hikvision (18-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2DE2A404IWG1-E |
| MPN | DS-2DE2A404IWG1-E |
| EAN | 6936422161941 |
| Brand | Hikvision |
| Hikvision product name | 4MP 4X IR Mini Outdoor Acusense PTZ Camera |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 4x optical, 16x digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| FOV | Horizontal field of view: 99.4° to 32.8°, vertical field of view: 51.7° to 18.4°, diagonal field of view: 119.9° to 37.5° |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.8 |
| Zoom Speed | Approx. 2 s |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 20 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| PTZ | |
| Movement Range (Pan) | 0° to 355° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Park Action | Preset,patrol scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | patrol scan,Preset,dome reboot,dome adjust |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed regions for main stream |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711),16 Kbps (G.722.1),32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.726) |
| Audio Sampling Rate | 8 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | Chrome80+、Firefox80+、Safari13+、Edge89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ＞52dB |
| Defog | Digital Defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters |
| Built-in Speaker | 1 built-in speaker, with effective distance reaching max. 10 meters |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Reset | Yes |
| Power Output | 12 VDC, max. 60 mA |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| Smart Event | Line crossing detection,intrusion detection,region exiting detection,region entrance detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning |
| General | |
| Power | 12 VDC, Max. 9.2 W; PoE (802.3af) |
| Dimension | Ø130.7 mm × 103.6 mm (Ø5.15" × 4.00") |
| Weight | Approx. 560 g (1.23 lb.),With Package Weight: Approx. 780 g (1.72 lb.) |
| Operating Condition | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing) |
| General Function | Mirror, password protection |
| Approval | |
| Protection | IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection |
Frequently Asked Questions
What zoom does the Hikvision DS-2DE2A404IWG1-E have?
4x optical zoom (2.8 to 12 mm) plus 16x digital zoom.
What is the night-vision range?
20 m IR (IR illuminator).
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range, plus digital defog.
Does it reduce false alarms?
Yes — deep-learning analytics classify people and vehicles.
How is it powered?
12 VDC, Max. 9.2 W; PoE (802.3af).
Is it suitable for outdoor use?
Yes — IP66 and IK10 vandal-resistant; operating range -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing).
Does it record locally?
Yes — Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, plus NAS and NVR recording.
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
Documentation — Hikvision DS-2DE2A404IWG1-E 4MP 4x Zoom DarkFighter AcuSense 2-inch Mini PT Dome Camera 20m IR
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2DE2A404IWG1-E Data Sheet (official PDF) | Download | |
| Hikvision DS-2DE2A404IWG1-E Quick Start Guide (official PDF) | Download | |
| Hikvision DS-2DE2A404IWG1-E User Manual (official PDF) | Download | |
| Hikvision DS-2DE2A404IWG1-E product page | Web | View on hikvision.com |
| Hikvision PTZ Camera Installer Guide 2026 | Web | Read the guide |
| Browse all Hikvision IP PTZ Cameras | Web | View IP PTZ Cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester). Trade pricing: 0116 3800 838 or [email protected].
