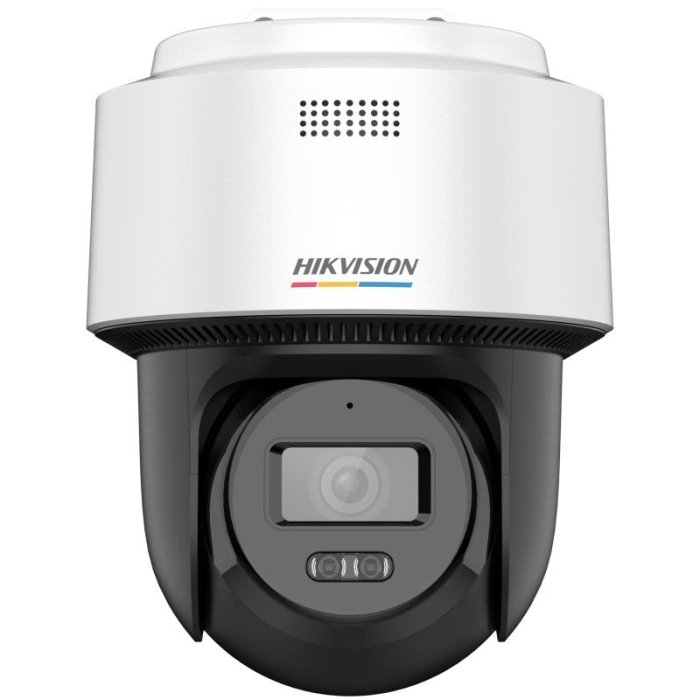

Hikvision DS-2CE60KF0T-PTLXTS 3K 2.8mm ColorVu Smart Hybrid Outdoor PT Turbo HD Camera with Two-Way Audio & Siren WHITE
The Hikvision DS-2CE60KF0T-PTLXTS 3K 2.8mm ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 Smart HybridSmart Hybrid Light Outdoor PT Turbo HD Camera with Two-Way Audio & Siren WHITE is a 3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 outdoor pan/tilt Turbo HD camera with an F1.0 2.8 mm lens, Smart HybridSmart Hybrid Light Light (40 m IR / 40 m white light), two-way audio and a red & blue strobe with siren. Hikvision model name: 3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 Two Way Audio & Siren Fixed Outdoor PT Camera.
Genuine Hikvision product. Trade pricing and availability from Netview CCTV Leicester — authorised Hikvision wholesale distributor (call 0116 3800 838).
Key Features
- 3K (2960 × 1664) high-resolution imaging
- 2.8 mm fixed lens, 105.0° horizontal field of view
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026: 24/7 colour imaging with an F1.0 aperture
- Smart HybridSmart Hybrid Light Light - IR, white-light or smart mode (white light switches on when a target is detected)
- 3D DNR for clean, sharp images
- Up to 40 m IR and 40 m white light for night imaging
- Red & blue strobe light and audio alarm (siren / voice) to warn intruders off
- Built-in microphone - audio over the coax cable (AoCWhat is Hikvision AOC), no separate audio cable
- Two-way audio - talk to visitors via a compatible two-way-audio DVR (/T models) or the app
- IP66 weatherproof
- Pan / tilt adjustment: pan 0° to 345°, tilt 0° to 80°
- Digital WDR with BLC / HLC for backlit scenes
- Turbo HD (HD-TVI) output over standard coax - works with Hikvision and HiLook Turbo HD DVRs
- Power: 12 VDC ± 25%, max. 9.5 W
Hikvision DS-2CE60KF0T-PTLXTS 3K 2.8mm ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 Smart HybridSmart Hybrid Light Outdoor PT Turbo HD Camera with Two-Way Audio & Siren WHITE — Turbo HD Analogue Camera
3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 outdoor pan/tilt Turbo HD camera with an F1.0 2.8 mm lens, Smart HybridSmart Hybrid Light Light (40 m IR / 40 m white light), two-way audio and a red & blue strobe with siren. Hikvision: 3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 Two Way Audio & Siren Fixed Outdoor PT Camera.
Overview
The Hikvision DS-2CE60KF0T-PTLXTS 3K 2.8mm ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 Smart HybridSmart Hybrid Light Outdoor PT Turbo HD Camera with Two-Way Audio & Siren WHITE is a 3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 outdoor pan/tilt Turbo HD camera with an F1.0 2.8 mm lens, Smart HybridSmart Hybrid Light Light (40 m IR / 40 m white light), two-way audio and a red & blue strobe with siren. New for Q3 2026 in the Hikvision 3K ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 PT range. ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 and the F1.0 aperture keep the picture in colour at night, while Smart HybridSmart Hybrid Light Light uses covert IR by default and switches the white light on when a person or vehicle is detected. A red & blue strobe and an audible alarm (siren or voice warning) deter intruders the moment they are detected. The built-in microphone and speaker give two-way audio over the existing coax cable when paired with a compatible two-way-audio DVR - no separate audio cable. Turbo HD (HD-TVI) analogue output works with Hikvision Turbo HD DVRs. Order from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing for installers; call 0116 3800 838 for availability.
Key Features
- 3K (2960 × 1664) high-resolution imaging
- 2.8 mm fixed lens, 105.0° horizontal field of view
- ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026: 24/7 colour imaging with an F1.0 aperture
- Smart HybridSmart Hybrid Light Light - IR, white-light or smart mode (white light switches on when a target is detected)
- 3D DNR for clean, sharp images
- Up to 40 m IR and 40 m white light for night imaging
- Red & blue strobe light and audio alarm (siren / voice) to warn intruders off
- Built-in microphone - audio over the coax cable (AoCWhat is Hikvision AOC), no separate audio cable
- Two-way audio - talk to visitors via a compatible two-way-audio DVR (/T models) or the app
- IP66 weatherproof
- Pan / tilt adjustment: pan 0° to 345°, tilt 0° to 80°
- Digital WDR with BLC / HLC for backlit scenes
- Turbo HD (HD-TVI) output over standard coax - works with Hikvision and HiLook Turbo HD DVRs
- Power: 12 VDC ± 25%, max. 9.5 W
Typical Applications
- Homes, shops and small businesses - visible deterrent with talk-down audio
- Gates, doors, yards and car parks
- Upgrading existing coax systems - reuse the cable run, just change the camera and DVR
Compatible Devices
- Hikvision Turbo HD DVRs (HD-TVI)
- Two-way audio: DVRs with audio over coax and two-way talk (e.g. /T models)
- Hik-Connect / HiLookVision app and iVMS-4200 via the DVR
- 12 VDC power supply (one adapter per camera recommended)
What's in the Box
- 1 × Hikvision DS-2CE60KF0T-PTLXTS 3K 2.8mm ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 Smart HybridSmart Hybrid Light Outdoor PT Turbo HD Camera with Two-Way Audio & Siren WHITE
- Drill template and fixing screws (where supplied)
- Quick start guide
Detailed Specifications — Hikvision DS-2CE60KF0T-PTLXTS 3K 2.8mm ColorVu Smart Hybrid Outdoor PT Turbo HD Camera with Two-Way Audio & Siren WHITE
Specifications as published by Hikvision (22-10-2026): Hikvision product page (https://www.hikvision.com/uk/products/Turbo-HD-Products/Turbo-HD-Cameras/ColorVu-Series/ds-2ce60kf0t-ptlxts/). Where two lenses are listed, the 2.8 mm values apply. Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2CE60KF0T-PTLXTS(2.8MM) |
| MPN | DS-2CE60KF0T-PTLXTS(2.8mm) |
| EAN | 6942640552478 |
| Brand | Hikvision |
| Hikvision product name | 3K ColorVu Two Way Audio & Siren Fixed Outdoor PT Camera |
| Product Type | Turbo HD Analogue Camera |
| Camera | |
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 (H) × 1664 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/30 s to 1/50000 s, NTSC: 1/15 s to 1/50000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 345°, Tilt: 0° to 80° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 105.0°, vertical FOV: 62.5°, diagonal FOV: 129°; 3.6 mm, horizontal FOV: 90.0°, vertical FOV: 50.2°, diagonal FOV: 109° |
| Lens Mount | M12 |
| Microphone | |
| Pickup Distance | In a radius of up to 5 m |
| Amount | 1 |
| Speaker | |
| Rated Power | 2 W |
| Speaker Range | In a radius of up to 5 m |
| Illuminator | |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 40 m, White Light: Up to 40 m |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Anti-banding, Saturation, Brightness, Contrast, Sharpness, Smart IR |
| Frame Rate | 3K@10fps/12.5fps/20fps/25fps, 4MP@25fps/30fps, 1080P@25fps/30fps |
| Day/Night Mode | Auto/Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | Global, DWDR, BLC, HLC |
| Noise Reduction | 3D DNR |
| White Balance | Auto, Manual |
| Audio | |
| Audio Function | Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
| Interface | |
| Video Output | 1 HD analog output |
| Event | |
| Light Alarm | Flashing Light Alarm (Red and Blue) |
| Audible Alarm | Yes |
| General | |
| Power | 12 VDC ± 25%, max. 9.5 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required. |
| Material | Main body: Plastic Base: Plastic |
| Weight | Approx. 820 g (1.81 lb.) |
| Operating Condition | -30 °C to 60 °C (-30 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Dimension | Ø131.9 mm × 185.8 mm (Ø5.19" × 7.31") |
| Approval | |
| Protection | IP66 |
Frequently Asked Questions
What is the Hikvision DS-2CE60KF0T-PTLXTS?
3K ColorVu outdoor pan/tilt Turbo HD camera with an F1.0 2.8 mm lens, Smart Hybrid Light (40 m IR / 40 m white light), two-way audio and a red & blue strobe with siren.
What is the night-vision range?
Up to 40 m IR / 40 m white light — Smart Hybrid Light (IR, white light or smart mode).
Does it have audio?
Yes — built-in microphone and speaker for two-way audio over coax with a compatible DVR.
Does it have a deterrent?
Yes — a red & blue strobe light and an audible alarm (siren or voice) trigger on detection.
What field of view does the lens give?
2.8 mm fixed lens, 105.0° horizontal.
Will it work with my DVR?
It outputs Turbo HD (HD-TVI) over coax — use a Hikvision Turbo HD DVR with two-way audio support for talk-down.
Is it weatherproof?
Yes — IP66.
How is it powered?
12 VDC ± 25%, max. 9.5 W.
Documentation — Hikvision DS-2CE60KF0T-PTLXTS 3K 2.8mm ColorVu Smart Hybrid Outdoor PT Turbo HD Camera with Two-Way Audio & Siren WHITE
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2CE60KF0T-PTLXTS Data Sheet (official PDF) | Download | |
| Hikvision DS-2CE60KF0T-PTLXTS product page | Web | View on hikvision.com |
| Browse all HD / Turbo HD cameras | Web | View HD camera range |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester). Trade pricing: 0116 3800 838 or [email protected].
