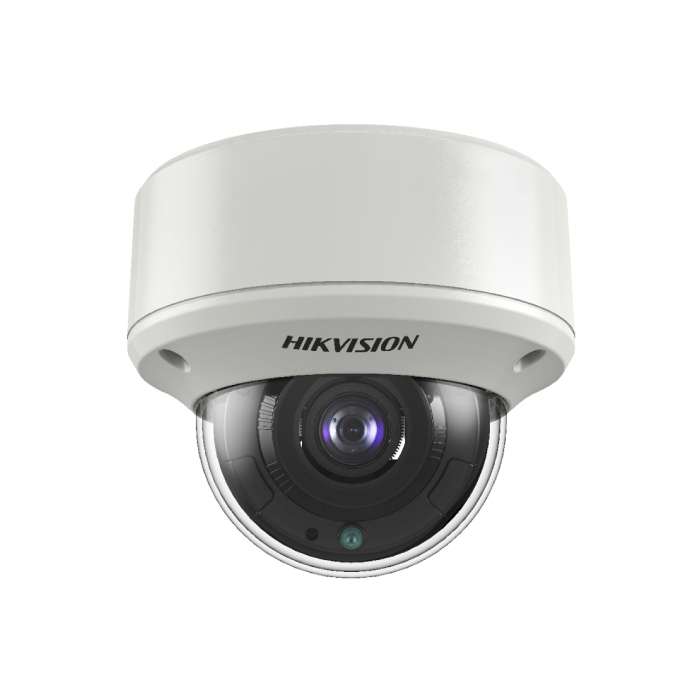

5MP DS-2CE59H8T-AVPIT3ZF Hikvision motorized Lens Ultra-Low Light Vandal Dome Camera

Overview

The Hikvision DS-2CE59H8T-AVPIT3ZF(2.7-13.5mm) is a 5 MP Turbo HD motorised-lens vandal dome — IK10 impact-resistant housing pairs with 2.7 – 13.5 mm motorized varifocal for site-tuned field of view, controlled from the DVR over coax (UTC) without revisiting the camera once mounted.

IK10 impact resistance is the headline spec. The dome housing is engineered to survive sustained physical attack — well suited to communal entrances, stairwells, school grounds, retail back-of-house and low-mount perimeter installs where exposed cameras are at risk. Motorised 2.7 – 13.5 mm motorized varifocal adjusts zoom and focus from the DVR over coax (UTC) without revisiting the camera. Ultra Low Light (ULL) sensor extends colour and detail capture into poorly-lit scenes.

5-in-1 hybrid coax is the major selling angle. The DS-2CE59H8T-AVPIT3ZF(2.7-13.5mm) auto-detects HD-TVI, AHD, HDCVI or CVBS on connection — drops straight into virtually any UK analogue DVR in stock with installers today. That makes it an ideal upgrade path for sites still running an older HD-TVI / AHD / HDCVI DVR that doesn't justify a full IP migration: keep the recorder, keep the cables, swap in the 5 MP camera. Digital WDR + 3D-DNR clean up back-lit and noisy low-light scenes.

Construction: IP67 weatherproof housing with IK10 impact-resistant dome, -40 °C to 60 °C operating range. Power: 12 VDC. CE / UKCA / RoHS / REACH / WEEE certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked Turbo HD product.

Key Features

• 5 MP resolution (2560 x 1944)
• 1/2.5″ Progressive Scan CMOS sensor (5 MP)
• 2.7 – 13.5 mm motorized varifocal with auto-focus
• F1.6 / F2.0 typical aperture
• 60 m IR range with Smart IR intensity adjustment
• IK10 impact-resistant vandal dome housing
• Ultra Low Light (ULL) sensor — extended low-light sensitivity
• 5-in-1 hybrid coax video output — HD-TVI / AHD / HDCVI / CVBS auto-detect
• Drops into any existing UK analogue DVR or BNC coax run
• Digital WDR (DWDR)
• 3D-DNR digital noise reduction
• Day & Night with IR-cut filter (auto-switch)
• On-screen menu adjustable from DVR over coax (UTC)
• IP67 rated outdoor body
• Operating temperature: -40 °C to 60 °C
• Power: 12 VDC
• CE / UKCA / FCC / RoHS / REACH / WEEE certified

Typical Applications

• Communal entrances / stairwells — IK10 impact resistance handles attack-prone sites
• School grounds and education sites — low-mount playground and corridor cameras need a vandal-rated dome
• Retail back-of-house and warehouse interiors
• Variable-distance perimeter — motorised varifocal lets the installer dial in the framing from the DVR
• Analogue DVR retrofits — sites running an older HD-TVI / AHD / HDCVI / CVBS DVR that doesn't justify a full IP migration
• Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock

Compatible Hikvision Devices

• Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR range — iDS-7200HUHI / iDS-7300HUHI / iDS-9000HUHI-K series (5-in-1 input, AoCWhat is Hikvision AOC audio-over-coax recording)
• Hikvision Turbo HD standard DVR range — DS-7200HQHI / DS-7300HQHI / DS-7100HGHI-F families (HD-TVI / AHD / HDCVI / CVBS / IP input)
• Third-party HD-TVI, AHD, HDCVI and CVBS DVRs — auto-detect on connection
• Hikvision iVMS-4200 desktop client when used with a compatible DVR
• Hikvision video-balun / coax accessories — BNC connectors, surge protectors, video amplifiers
• Any UK analogue / hybrid recorder accepting BNC composite or HD-TVI / AHD / HDCVI input

What's in the Box

• 1 × Hikvision DS-2CE59H8T-AVPIT3ZF(2.7-13.5mm) 5 MP Motorised-Lens Vandal Dome
• 1 × mounting bracket / hardware kit
• 1 × cable / connector accessory bag
• 1 × waterproof BNC / power adaptor set
• 1 × quick start guide
