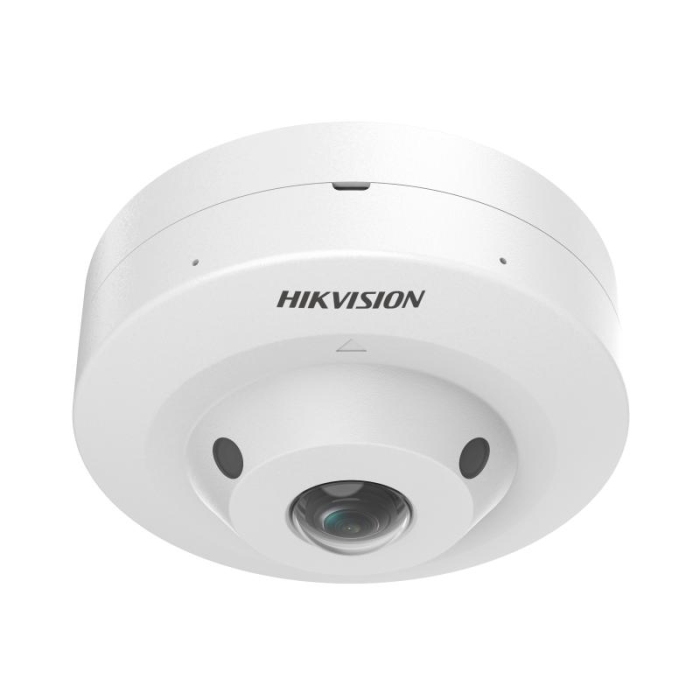

Hikvision DS-2CE52K0T-LPS 3K 1.8mm Smart Hybrid Light 180° Fisheye Turbo HD Camera with Mic WHITE
The Hikvision DS-2CE52K0T-LPS 3K 1.8mm Smart HybridSmart Hybrid Light Light 180° Fisheye Turbo HD Camera with Mic WHITE is a 3K Turbo HD fisheye camera with a 1.8 mm lens giving a 180° panoramic view, Smart HybridSmart Hybrid Light Light (10 m IR / 10 m white light) and a built-in microphone. Hikvision model name: 3K Smart HybridSmart Hybrid Light Light Audio Fisheye Camera.
Genuine Hikvision product. Trade pricing and availability from Netview CCTV Leicester — authorised Hikvision wholesale distributor (call 0116 3800 838).
Key Features
- 3K (2960 × 1665) high-resolution imaging
- 1.8 mm fixed fisheye lens
- Smart HybridSmart Hybrid Light Light - IR, white-light or smart mode (white light switches on when a target is detected)
- 180° panoramic fisheye view - one camera covers a whole room
- 3D DNR for clean, sharp images
- Up to 10 m IR and 10 m white light for night imaging
- Built-in microphone - audio over the coax cable (AoCWhat is Hikvision AOC), no separate audio cable
- IP67 weatherproof and IK08 vandal-resistant
- Digital WDR with BLC / HLC for backlit scenes
- Turbo HD (HD-TVI) output over standard coax - works with Hikvision and HiLook Turbo HD DVRs
- Power: 12 VDC ± 25%, max. 8.2 W
Hikvision DS-2CE52K0T-LPS 3K 1.8mm Smart HybridSmart Hybrid Light Light 180° Fisheye Turbo HD Camera with Mic WHITE — Turbo HD Analogue Camera
3K Turbo HD fisheye camera with a 1.8 mm lens giving a 180° panoramic view, Smart HybridSmart Hybrid Light Light (10 m IR / 10 m white light) and a built-in microphone. Hikvision: 3K Smart HybridSmart Hybrid Light Light Audio Fisheye Camera.
Overview
The Hikvision DS-2CE52K0T-LPS 3K 1.8mm Smart HybridSmart Hybrid Light Light 180° Fisheye Turbo HD Camera with Mic WHITE is a 3K Turbo HD fisheye camera with a 1.8 mm lens giving a 180° panoramic view, Smart HybridSmart Hybrid Light Light (10 m IR / 10 m white light) and a built-in microphone. New for Q3 2026 in the Hikvision 3K Smart HybridSmart Hybrid Light Light range. Its 1.8 mm fisheye lens covers a full 180° from one mounting point, ideal for rooms, shops and corridors where a single camera must see everything. Smart HybridSmart Hybrid Light Light records in mono on covert IR and switches to full colour with the white light when activity is detected, or can stay in colour permanently. The built-in microphone records audio over the existing coax cable (audio over coax) to a compatible DVR. Turbo HD (HD-TVI) analogue output works with Hikvision Turbo HD DVRs. Order from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing for installers; call 0116 3800 838 for availability.
Key Features
- 3K (2960 × 1665) high-resolution imaging
- 1.8 mm fixed fisheye lens
- Smart HybridSmart Hybrid Light Light - IR, white-light or smart mode (white light switches on when a target is detected)
- 180° panoramic fisheye view - one camera covers a whole room
- 3D DNR for clean, sharp images
- Up to 10 m IR and 10 m white light for night imaging
- Built-in microphone - audio over the coax cable (AoCWhat is Hikvision AOC), no separate audio cable
- IP67 weatherproof and IK08 vandal-resistant
- Digital WDR with BLC / HLC for backlit scenes
- Turbo HD (HD-TVI) output over standard coax - works with Hikvision and HiLook Turbo HD DVRs
- Power: 12 VDC ± 25%, max. 8.2 W
Typical Applications
- Shops, offices and rooms - 180° view from one ceiling or wall point
- Corridors and reception areas
- Upgrading existing coax systems - reuse the cable run, just change the camera and DVR
Compatible Devices
- Hikvision Turbo HD DVRs (HD-TVI)
- Audio recording: DVRs with audio over coax
- Hik-Connect / HiLookVision app and iVMS-4200 via the DVR
- 12 VDC power supply (one adapter per camera recommended)
What's in the Box
- 1 × Hikvision DS-2CE52K0T-LPS 3K 1.8mm Smart HybridSmart Hybrid Light Light 180° Fisheye Turbo HD Camera with Mic WHITE
- Drill template and fixing screws (where supplied)
- Quick start guide
Detailed Specifications — Hikvision DS-2CE52K0T-LPS 3K 1.8mm Smart Hybrid Light 180° Fisheye Turbo HD Camera with Mic WHITE
Specifications as published by Hikvision (22-10-2026): Hikvision datasheet DS-2CE52K0T-LPS_Datasheet_20260203.pdf (web page has no spec table); Operating Condition °F corrected (datasheet says 160 °F for 60 °C). Where two lenses are listed, the 1.8 mm values apply. Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2CE52K0T-LPS(1.8MM) |
| MPN | DS-2CE52K0T-LPS(1.8mm) |
| EAN | 6942640552430 |
| Brand | Hikvision |
| Hikvision product name | 3K Smart Hybrid Light Audio Fisheye Camera |
| Product Type | Turbo HD Analogue Camera |
| Camera | |
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 1.8 mm fixed focal lens |
| Focal Length & FOV | 1.8 mm, horizontal FOV: 180°, vertical FOV: 114°, diagonal FOV: 180° |
| Lens Mount | M12 |
| Microphone | |
| Pickup Distance | In a radius of up to 10 m |
| Amount | 1 |
| Illuminator | |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 10 m, White Light: Up to 10 m |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Anti-banding, AGC |
| Frame Rate | TVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps |
| Day/Night Mode | Auto/Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, Global, DWDR |
| Noise Reduction | 3D DNR |
| White Balance | Auto, Manual |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Power | 12 VDC ± 25%, max. 8.2 W (one power adapter per camera recommended; a 15 VDC adapter is required with a high-impedance cable such as the 18 m extension cable) |
| Material | Plastic |
| Dimension | Ø 121.78 mm × 59.5 mm (Ø 4.79" × 2.34") |
| Weight | Approx. 270 g (0.595 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP67, IK08 |
Frequently Asked Questions
What is the Hikvision DS-2CE52K0T-LPS?
3K Turbo HD fisheye camera with a 1.8 mm lens giving a 180° panoramic view, Smart Hybrid Light (10 m IR / 10 m white light) and a built-in microphone.
What is the night-vision range?
Up to 10 m IR / 10 m white light — Smart Hybrid Light (IR, white light or smart mode).
Does it have audio?
Yes — a built-in microphone; audio is carried over the coax cable to a compatible DVR.
What field of view does it cover?
180° horizontal from a 1.8 mm fisheye lens — one camera for a whole room.
Will it work with my DVR?
It outputs Turbo HD (HD-TVI) over coax — use a Hikvision Turbo HD DVR.
Is it weatherproof?
Yes — IP67 and IK08 vandal-resistant.
How is it powered?
12 VDC ± 25%, max. 8.2 W.
Documentation — Hikvision DS-2CE52K0T-LPS 3K 1.8mm Smart Hybrid Light 180° Fisheye Turbo HD Camera with Mic WHITE
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2CE52K0T-LPS Data Sheet (official PDF) | Download | |
| Hikvision DS-2CE52K0T-LPS product page | Web | View on hikvision.com |
| Browse all HD / Turbo HD cameras | Web | View HD camera range |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester). Trade pricing: 0116 3800 838 or [email protected].
