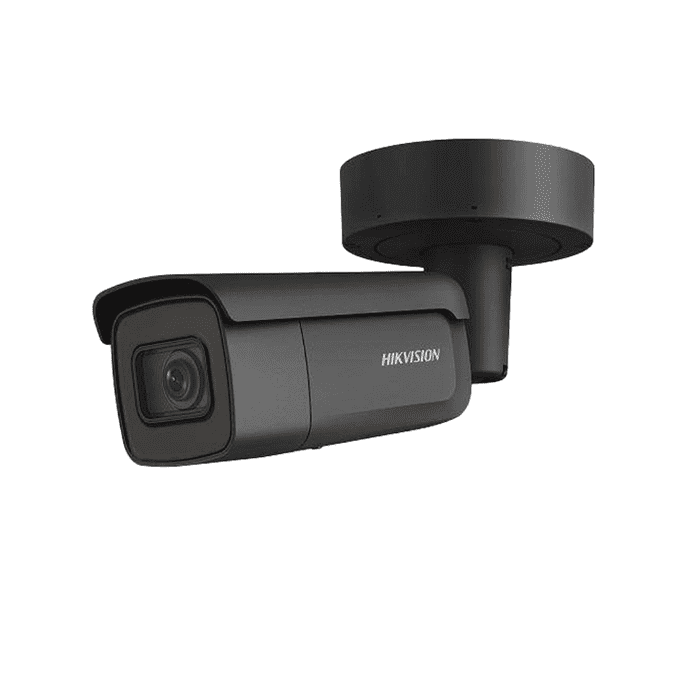

8MP DS-2CD2686G2-IZS(2.8-12mm)(C) Acusense Motorized Lens IP Bullet Camera BLACK

Name: 8MP DS-2CD2686G2-IZS(2.8-12mm)(C) Acusense Motorized Lens IP Bullet Camera BLACK
Brand: Hikvision
SKU: DS-2CD2686G2-IZS(2.8-12mm)(C)(BLACK)
Availability: InStock

Be the first to review this product

Unlock Trade Price

In stock

SKU

DS-2CD2686G2-IZS(2.8-12mm)(C)(BLACK)

Barcode: 6941264095170

Notify me when the price drops

Hikvision 8MP DS-2CD2686G2-IZS(2.8-12mm)(C) BLACK AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide IP Bullet Camera

Hikvision AcuSense IP Camera 2.8~12mm Motorized Lens with 50m IR

Ultra-low Light Powered by Darkfighter Technology
Turning Night into day even faces can be clearly identified

H265+
H.265+ Encoding Technology Halves Your Bandwidth and Storage. It is compatible with most of the software/hardware supporting H.265, and It plays a significant role in cutting the storage cost and promoting the ultra-HD video popularity

Acusense Technology
Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Technology provides accurate sensing in security hardware. Empowered by deep learning algorithms, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide technology distinguishes people and vehicles from other moving objects. Empowered by deep learning algorithms, Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide technology brings human or vehicle target classification alarms to greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

High quality imaging with 8MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
False alarm reduction through human and vehicle target classification based on deep learning
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized vari-focal lens for easy installation and monitoring
Audio and alarm interface available
Connecter panel interface for easy installation
Robust structure design with full metal materials

Compatible with All Hikvision NVR's.
This camera can also be used as a standalone IP camera to connect directly using the Hik-Connect App

For bracket options available, see accessories tab below.
WD Purple Surveillance Drives

Barcode: 6941264095170

Description

In Depth

Documents

Firmware

Tools

iVMS-4200

DS-2CD2686G2-IZS(2.8-12mm)(C)(BLACK)

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
Lens MountØ14
Iris TypeFixed
ApertureF1.4

DORI
DORI
2.8 to 12 mm:

Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m

Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 60 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
Target CroppingYes

Audio
Audio TypeMono sound
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in micro SD slot, up to 256 GB
Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes

Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

Scene change detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function
Face CaptureYes

General
Power
12 VDC, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
DimensionØ144.1 mm × 345.7 mm (Ø5.7" × 13.6")
Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
WeightApprox. 1430 g (3.2 lb.)
With Package WeightApprox. 2490 g (5.5 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)

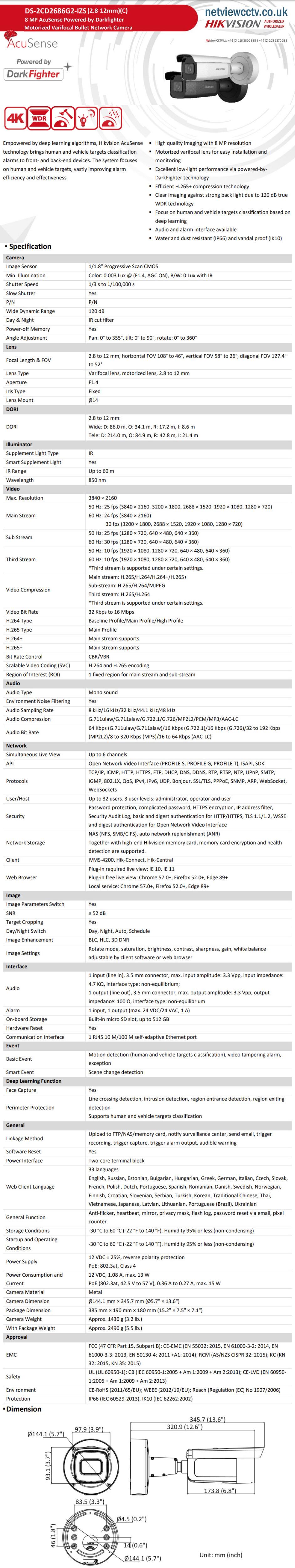

Hikvision DS-2CD2686G2-IZS(2.8-12mm)(C) Acusense IP Bullet Camera Datasheet

Hikvision DS-2CD2686G2-IZS(2.8-12mm)(C) Acusense IP Bullet Camera Quick Start Guide

Hikvision DS-2CD2686G2-IZS(2.8-12mm)(C) Acusense IP Bullet Camera User Manual

Hikvision DS-2CD2686G2-IZS(2.8-12mm)(C) Acusense IP Bullet Camera FAQ
