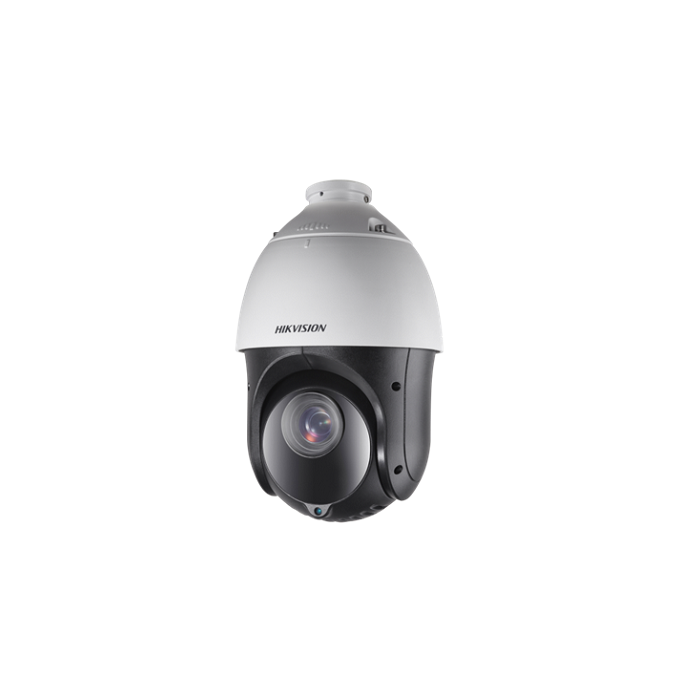

HD 1080P DS-2AE4215TI-D(E) Hikvision Turbo PTZ Camera 15x 100m IR
The Hikvision DS-2AE4215TI-D(E) is a 2 MP (1080P) Turbo HD PTZ Speed Dome with 15× optical zoom (5.0-75 mm), 100 m Smart IR, IP66 rated, with 5-in-1 hybrid coax output — HD-TVI, AHD, HDCVI and CVBS auto-detect drops into any existing DVR or coax cable run. Coaxitron control over the BNC line removes the need for a separate RS-485 cable on simple installs.
15× optical zoom with 5.0-75 mm motorised lens. 360° endless pan, -15° to 90° tilt with auto-flip, manual speed 0.1°/s – 160°/s and preset speed up to 240°/s — 256 presets, 8 patrols and 4 patterns programmable from any compatible DVR or joystick controller. 100 m Smart IR with intensity adjustment to prevent close-range overexposure. 5-in-1 hybrid coax video (HD-TVI / AHD / HDCVI / CVBS) auto-detects on connection — the camera works with virtually any UK analogue DVR in stock with installers today.
Key Features
- 2 MP (1080P) resolution (1920 x 1080)
- 15× optical zoom — 5.0-75 mm motorised lens
- 360° endless pan, -15° to 90° tilt (auto-flip)
- 256 presets, 8 patrols, 4 patterns; preset speed up to 240°/s
- Coaxitron control over BNC — no separate RS-485 run needed for compatible Hikvision / HiLook DVRs
- 100 m IR range with Smart IR
- 5-in-1 hybrid coax video — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or coax cable run (BNC)
- Digital WDR + 3D-DNR for clean low-light / back-lit scenes
- IP66 weatherproof
- Operating temperature: -40 °C to 65 °C
- Power: 12 VDC / 24 VAC for PTZ models
- CE / UKCA / RoHS approved
Note: Turbo HD PTZ speed domes use coaxial cable for both video and control — pan/tilt/zoom commands ride down the same BNC line via Coaxitron (no separate RS-485 cable required for compatible DVRs). An RS-485 control loop is still wired in for legacy joystick keyboards or third-party DVRs.
Hikvision DS-2AE4215TI-D(E) — Turbo HD PTZ Speed Dome
2 MP (1080P) Turbo HD PTZ Speed Dome, 15× optical zoom (5.0-75 mm), 100 m Smart IR, 5-in-1 hybrid coax (HD-TVI / AHD / HDCVI / CVBS), IP66.
Overview
The Hikvision DS-2AE4215TI-D(E) is a 2 MP (1080P) Turbo HD analogue PTZ speed dome — the high-zoom analogue dome that drops into existing BNC infrastructure without needing an IP / network upgrade. 15× optical zoom covers 5.0-75 mm (motorised), 360° endless pan and -15° to 90° tilt with auto-flip give full hemispheric coverage, , 100 m Smart IR keeps plate / face capture clean after dark, and a tough IP66-rated housing handles UK outdoor environments year-round.
Control rides down the same coaxial cable as the video signal via Coaxitron: any compatible Hikvision / HiLook Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR can pan/tilt/zoom the camera and program presets without a separate RS-485 cable run — a huge time-saver on retrofit installs into legacy analogue infrastructure. An RS-485 loop is still wired in for legacy joystick keyboards or third-party DVRs (Pelco-D / Pelco-P). The camera supports 256 presets, 8 patrols (16 presets each), 4 patterns, scheduled tasks and park action.
The 5-in-1 hybrid coax video output auto-detects on connection — the DS-2AE4215TI-D(E) happily talks HD-TVI, AHD, HDCVI or CVBS, dropping into virtually any UK analogue DVR in stock with installers today. That makes this an ideal upgrade path for sites still running an older HD-TVI / AHD / HDCVI DVR that doesn't justify a full IP migration: keep the recorder, keep the cables, swap in the analogue PTZ.
Construction: IP66 weatherproof housing, -40 °C to 65 °C operating range. Power: 24 VAC / 12 VDC (PoE+ not applicable to analogue PTZ). CE / UKCA / RoHS certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked Turbo HD product.
Key Features
- 2 MP (1080P) resolution (1920 x 1080)
- 1/2.8″ Progressive Scan CMOS sensor
- 15× optical zoom with 5.0-75 mm motorised lens
- 16× digital zoom (combined with optical)
- 360° endless pan, -15° to 90° tilt with auto-flip
- Manual pan speed 0.1°/s – 160°/s; preset speed up to 240°/s
- 256 presets, 8 patrols (16 presets each), 4 patterns
- Scheduled tasks and park action (return-to-home after dwell)
- Coaxitron control over BNC — no separate RS-485 run needed for compatible Hikvision DVRs
- RS-485 control loop (Pelco-D / Pelco-P) for legacy keyboards / third-party DVRs
- 100 m IR range with Smart IR intensity adjustment
- 5-in-1 hybrid coax video output — HD-TVI / AHD / HDCVI / CVBS auto-detect
- Drops into any existing UK analogue DVR or BNC coax run
- Digital WDR (DWDR)
- 3D-DNR digital noise reduction
- Day & Night with IR-cut filter (auto-switch)
- IP66 rated outdoor body
- Operating temperature: -40 °C to 65 °C
- Power: 24 VAC / 12 VDC
- CE / UKCA / FCC / RoHS / REACH / WEEE certified
Typical Applications
- Car-park / forecourt surveillance — high-zoom analogue dome covers a wide area from a single mounting point
- Retail forecourts / petrol stations — preset patrols cycle through pump bays, entry/exit and shop frontage
- Industrial yards and depots — HGV courts, warehouse loading bays, plant hire compounds
- Schools and education sites — central PTZ covers playgrounds, sports fields and entrance gates from a single pole
- Retrofit upgrades — replaces legacy analogue PTZ on existing Pelco / coax infrastructure without recabling
- Public-realm / town-centre coverage where IP backhaul is not available or cost-justified
- Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision Turbo HD AcusenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR range — iDS-7200HUHI / iDS-7300HUHI / iDS-9000HUHI-K series (5-in-1 input, AoCWhat is Hikvision AOC audio-over-coax recording)
- Hikvision Turbo HD standard DVR range — DS-7200HQHI / DS-7300HQHI / DS-7100HGHI-F families (HD-TVI / AHD / HDCVI / CVBS / IP input)
- Third-party HD-TVI, AHD, HDCVI and CVBS DVRs — auto-detect on connection
- Hikvision iVMS-4200 desktop client (Windows / macOS) when used with a compatible DVR
- Hik-Connect mobile app (iOS / Android) for remote view when used with a compatible DVR
- Hikvision video-balun / coax accessories — BNC connectors, surge protectors, video amplifiers
- Any UK analogue / hybrid recorder accepting BNC composite or HD-TVI / AHD / HDCVI input
- Pelco-D / Pelco-P keyboards and joystick controllers (RS-485 control loop)
- DS-1200KI / DS-1100KI / DS-1005KI Hikvision network keyboards for joystick PTZ control
What's in the Box
- 1 × Hikvision DS-2AE4215TI-D(E) Turbo HD PTZ Speed Dome
- 1 × pendant / wall-bracket mounting hardware kit
- 1 × cable / connector accessory bag
- 1 × 24 VAC / 12 VDC power adaptor
- 1 × quick start guide
📄 Download: Hikvision DS-2AE4215TI-D(E) Datasheet (PDF) — full technical specification including video-format compatibility table, I/O wiring diagram and approval certificates.
Detailed Specifications — Hikvision DS-2AE4215TI-D(E)
Full technical specification taken from the official Hikvision DS-2AE4215TI-D(E) Turbo HD PTZ Speed Dome datasheet.
| Camera & Image | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Resolution | 2 MP (1080P) (1920 x 1080) |
| Max Frame Rate | max 1920 × 1080 @ 25/30 fps |
| Minimum Illumination | 0.005 lux @ F1.6 (Colour); 0.001 lux @ F1.6 (B/W); 0 lux with IR |
| WDR | Digital WDR (DWDR) |
| Noise Reduction | 3D-DNR digital noise reduction |
| Shutter | 1/3 s to 1/100,000 s (auto / manual) |
| Day & Night | IR-cut filter with auto-switch |
| BLC / HLC | Supported |
| Lens & Optical | |
| Lens Type | Motorised zoom + auto-focus |
| Focal Length | 5.0-75 mm |
| Optical Zoom | 15× |
| Digital Zoom | 16× (combined with optical zoom) |
| Aperture | F1.6 (typical, varies across focal range) |
| Focus Mode | Auto / Manual / Semi-auto |
| IR Cut Filter | Yes — auto-switch |
| Illumination & Night Vision | |
| IR Range | 100 m Smart IR (intensity adjustment) |
| Day/Night | IR-cut filter with auto-switch; selectable Colour / B/W / Auto |
| Video Output | |
| Video Standards | 5-in-1 hybrid coax — HD-TVI / AHD / HDCVI / CVBS |
| Auto-Detect | Yes — camera auto-detects DVR video standard on connection |
| Default Output | HD-TVI (switchable on-screen menu over coax) |
| Output Impedance | 75 ohm (BNC, composite-style) |
| Coaxial Cable Reach | Up to 500 m on RG-59 (HD-TVI); longer with video balun / amplifier |
| OSD Control | Up the Coax (UTC) — menu adjustable from compatible DVR over BNC |
| Pan & Tilt | |
| Pan Range | 360° endless |
| Tilt Range | -15° to 90° with auto-flip |
| Manual Pan Speed | 0.1°/s to 160°/s |
| Manual Tilt Speed | 0.1°/s to 120°/s |
| Preset Speed | Up to 240°/s |
| Presets | 256 presets |
| Patrols | 8 patrols, 16 presets each |
| Patterns | 4 patterns (record-and-replay) |
| Scheduled Tasks | Yes — per-day timeline |
| Park Action | Return to preset / patrol / pattern after dwell timeout |
| Auto-Flip | Yes — continuous tracking past nadir |
| Control Protocols | Coaxitron over BNC + RS-485 (Pelco-D / Pelco-P) |
| General | |
| Power Supply | 24 VAC / 12 VDC |
| Body / Form Factor | PTZ Speed Dome (4-inch mini) |
| IP Rating | IP66 |
| Operating Temperature | -40 °C to 65 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Approvals | FCC, CE (EN 55032, EN 55035, EN 50130-4, EN 61000-3-2, EN 61000-3-3), UKCA, RoHS, REACH, WEEE |
Frequently Asked Questions
What is the Hikvision DS-2AE4215TI-D(E)?
A 2MP (1080P) Turbo HD PTZ speed dome — it pans, tilts and zooms over standard coax cable.
What zoom and night vision does it have?
15× optical zoom (5–75mm) with 100m Smart IR.
Will it work with my existing DVR?
Yes — its 5-in-1 hybrid coax output (HD-TVI/AHD/HDCVI/CVBS auto-detect) drops into almost any existing DVR or coax run, and Coaxitron control over the BNC removes the need for a separate RS-485 cable on simple installs.
Is it weatherproof?
Yes — IP66 rated for outdoor installation.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing for installers.
Documentation — Hikvision DS-2AE4215TI-D(E) Turbo HD PTZ Speed Dome
Download the official Hikvision datasheet for the DS-2AE4215TI-D(E), plus browse related categories on netviewcctv.co.uk.
