Ajax DoubleButton Jeweller Wireless Two-Button Hold-Up Panic Button - WHITE
The Ajax DoubleButton Jeweller is a wireless hold-up (panic) button with two tightly spaced buttons and a plastic divider — the alarm is raised only when both buttons are pressed together, so accidental presses in a pocket, bag or under a counter don't cause false alarms.
It joins any Ajax hub over two-way encrypted Jeweller radio (up to 1,300 m line of sight), is active 24/7 and supports confirmed hold-up alarms for UK ARC monitoring under PD 6662:2017. Carry it on a keyring, wrist strap or lanyard, or fix it with the Ajax Holder.
Key Features
- Two-button activation with plastic divider — protection against accidental presses
- Confirmed alarm from one DoubleButton (short + long press) or from two devices
- Always active, whatever the arming mode — no need to set the system
- Two-way encrypted Jeweller radio, up to 1,300 m in open space
- IP55 dust and splash protection, LED command confirmation
- Pre-installed CR2032 battery — up to 5 years
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →
Ajax DoubleButton Jeweller — Wireless Two-Button Hold-Up Device, White
A hold-up button that only raises the alarm when it is meant to — both buttons pressed together.
Overview

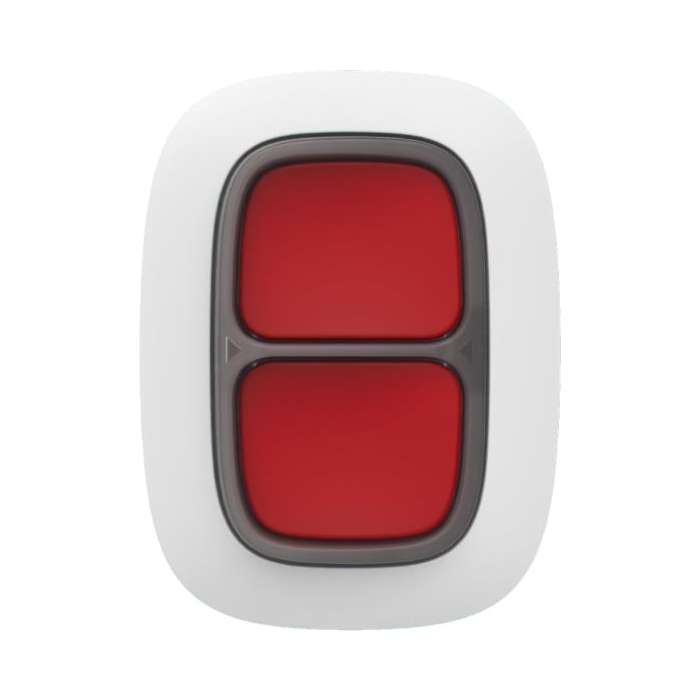

The Ajax DoubleButton Jeweller (Ajax 38103, also listed as DoubleButton (8EU) ASP) is a wireless hold-up device for Ajax intruder alarm systems. Two stiff, tightly spaced buttons sit either side of a plastic divider and an alarm is raised only when both are pressed at the same time — a single accidental press does nothing. That makes it safe to carry in a pocket or bag, or to fit under a counter, without the false hold-up alarms that single-button devices can cause.
DoubleButton is active 24/7, whatever the arming mode, and sends a hold-up event to the Ajax app and to the alarm receiving centre (SIA DC-09 or Contact ID). It also supports confirmed hold-up alarms: a short press followed by a long press (or the reverse) on one DoubleButton, or presses on two different DoubleButtons, sends a separate confirmed event. With OS Malevich 2.10 or later the system complies with PD 6662:2017 for UK ARC monitoring.
It talks to the hub over two-way encrypted Jeweller radio at up to 1,300 m in open space, enrols by QR code and runs for up to five years on its pre-installed CR2032 battery. The LED frame confirms every command and the IP55 enclosure is dust and splash resistant. Automation scenarios can lock electric doors, start a fog generator or lower shutters while the response is on its way. Same-day dispatch from Netview CCTV Leicester, with trade pricing on Ajax product.
Key Features
- Two buttons and a plastic divider — the alarm is raised only when both are pressed together
- Short press or long press (over 2 s) — shown differently in the app, same hold-up event to the ARC
- Confirmed hold-up alarm from a single DoubleButton or from two devices
- Always active — raises a hold-up alarm in any security mode, no arming needed
- Two-way encrypted Jeweller radio with frequency hopping, up to 1,300 m line of sight
- LED command-delivery confirmation, brightness adjustable or off
- Optional siren on button press for an audible response
- IP55 dust and splash protection
- Pre-installed CR2032 battery, up to 5 years, with low-battery reporting to users and the ARC
- Carry it on a keyring, wrist strap or lanyard, or fix it with the Ajax Holder (sold separately)
Typical Applications
- Retail tills and reception desks — fixed under the counter in a Holder
- Banks, pharmacies, post offices and cash offices needing a PD 6662 hold-up device
- Lone workers and staff — carried on a keyring, wrist strap or lanyard
- Homes — a bedside or front-door hold-up button that won't go off by accident
- Martyn’s Law lockdown systems — a dependable manual trigger for lockdown scenarios
Compatible Ajax Devices
- Ajax hubs — Hub 2, Hub 2 Plus, Hub Hybrid (OS Malevich 2.10 or later)
- Ajax ReX / ReX 2 range extenders
- Ajax Holder for Button/DoubleButton (white) for fixed mounting
- Ajax app (iOS / Android / macOS / Windows) and Ajax PRO for installers
What's in the Box
- 1 × Ajax DoubleButton Jeweller, white
- 1 × CR2032 battery (pre-installed)
- 1 × quick start guide
Detailed Specifications — Ajax DoubleButton Jeweller 38103
| Identification | |
|---|---|
| SKU | 38103 |
| MPN | 38103.79.WH1 |
| EAN | 5056599116924 |
| Brand | Ajax |
| Colour | White |
| Product Type | Wireless hold-up device (two-button panic button) |
| Also Listed As | DoubleButton (8EU) ASP |
| Operation | |
| Buttons | 2 — alarm only when both are pressed together |
| Accidental-Press Protection | Simultaneous press of both buttons + plastic divider |
| Press Types | Short or long (over 2 s) |
| Confirmed Alarm | Yes — one DoubleButton (short + long press) or two devices |
| Alarm Type | Hold-up (fixed; automation control mode not supported) |
| Availability | Always active (24/7), in any security mode |
| Command Indication | LED frame, brightness adjustable |
| Radio & Communication | |
| Radio Technology | Ajax Jeweller (two-way, encrypted, frequency hopping) |
| Frequency Band | 868.0–868.6 MHz or 868.7–869.2 MHz (depending on sales region) |
| Modulation | GFSK |
| Max Effective Radiated Power | Up to 20 mW |
| Open-space Range | Up to 1,300 m |
| ARC Protocols (via hub) | SIA DC-09, Contact ID |
| Power | |
| Power Supply | 1 × CR2032, 3 V (pre-installed) |
| Battery Life | Up to 5 years (depending on use) |
| Low-Battery Reporting | To users and the monitoring station |
| Mechanical & Environment | |
| Protection Class | IP55 |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | Up to 75% |
| Dimensions | 47 × 35 × 16 mm |
| Weight | 17 g |
| Mounting | Holder for Button/DoubleButton (sold separately), or carried |
| Compatibility | |
| Ajax Hubs | All Ajax hubs with OS Malevich 2.10 or later (Hub 2, Hub 2 Plus, Hub Hybrid) |
| Range Extenders | ReX, ReX 2 |
| Not Compatible | ocBridge Plus, uartBridge, third-party control panels |
| Approvals | |
| Standards | EN 50131 series, EN 50134-2, PD 6662:2017 (with OS Malevich 2.10+) |
| Warranty | 2 years (Ajax Systems) |
Frequently Asked Questions
What is the Ajax DoubleButton?
A wireless hold-up (panic) button for Ajax alarm systems. It has two buttons and only raises an alarm when both are pressed together, so it does not go off by accident.
How is it different from the Ajax Button?
The Button has a single key and can also be used as a smart-home control. The DoubleButton is a dedicated hold-up device — two buttons pressed together, confirmed-alarm support and IP55 — designed to stop false hold-up alarms.
Can it send a confirmed hold-up alarm to the ARC?
Yes. A short press followed by a long press (or the reverse), or presses on two different DoubleButtons, sends a separate confirmed alarm event. With OS Malevich 2.10 or later the system complies with PD 6662:2017.
Does the alarm need to be armed?
No — DoubleButton is active 24/7 and raises a hold-up alarm in any security mode.
How is it mounted?
Fix it with the Ajax Holder for Button/DoubleButton (sold separately) using screws or tape, or carry it on a keyring, wrist strap or lanyard.
Which hubs does it work with?
Ajax hubs and ReX range extenders running OS Malevich 2.10 or later. It is not compatible with ocBridge Plus, uartBridge or third-party control panels.
Do you stock it?
Yes — same-day dispatch from Netview CCTV Leicester, with trade pricing for installers.
Documentation — Ajax DoubleButton Jeweller
| Document | Format | Link |
|---|---|---|
| Ajax DoubleButton user manual | Web | View manual |
| Ajax DoubleButton Jeweller technical specifications | Web | View specifications |
| Holder for Button/DoubleButton (white) | Web | View holder |
| Build a complete Ajax system | Web | Ajax Kit Builder |
| Browse the full Ajax range | Web | View Ajax wireless alarms |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
