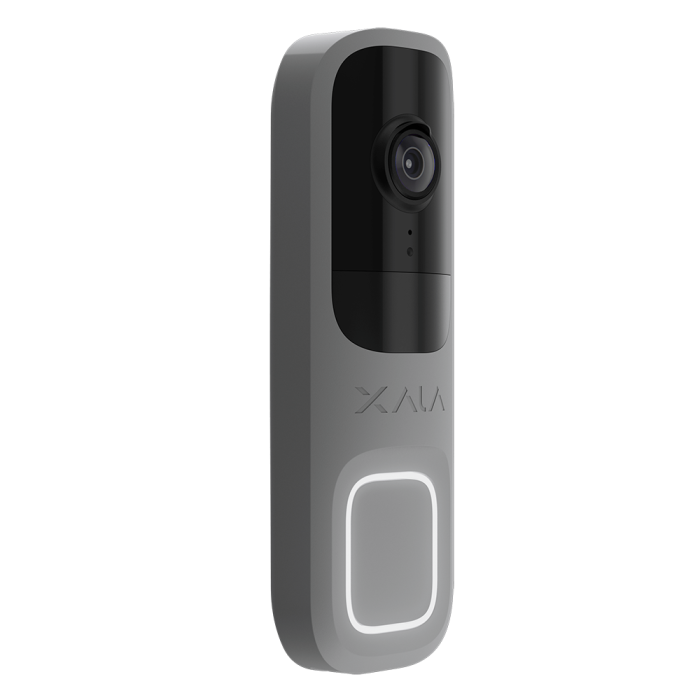

Ajax Doorbell 66393.125.GR1 Video Doorbell with Built-in AI and PIR Sensor GREY
The Ajax Doorbell 66393.125.GR1 Video Doorbell with Built-in AI and PIR Sensor GREY is a wireless video doorbell — Wireless video doorbell module with a built-in camera, AI human detection and a PIR sensor, integrated into the Ajax app.
Part of the Ajax professional wireless security range — Jeweller two-way radio with encryption, frequency hopping and anti-jamming, controlled from the Ajax mobile app and commissioned remotely with Ajax PRO. EN 50131 Grade 2 system support with optional ARC / CMS monitoring.
Key Features
- Wireless video doorbell with a built-in camera and AI human detection
- PIR sensor and motion zones reduce nuisance triggers
- Two-way audio and live view through the Ajax app
- Two-way Ajax Jeweller radio for alarms plus Wings for photo transmission - encrypted, frequency-hopping, jamming-resistant
- Integrates with the Ajax security system and scenarios
- Ingress protection: IP54 for outdoor mounting
- Powered from an existing doorbell transformer
Ajax Doorbell 66393.125.GR1 Video Doorbell with Built-in AI and PIR Sensor GREY — Wireless Video Doorbell
Wireless video doorbell module with a built-in camera, AI human detection and a PIR sensor, integrated into the Ajax app.
Overview
The Ajax Doorbell 66393.125.GR1 Video Doorbell with Built-in AI and PIR Sensor GREY is a wireless video doorbell from the Ajax professional wireless security range - two-way Jeweller radio with encryption, frequency hopping and anti-jamming supervision, all managed from the Ajax app. Wireless video doorbell module with a built-in camera, AI human detection and a PIR sensor, integrated into the Ajax app.
A wireless video doorbell with a built-in camera, AI human detection and a PIR sensor, fully integrated into the Ajax system. Answer the door, view live video and use two-way audio from the Ajax app, with motion zones to cut nuisance triggers.
Two-way Ajax Jeweller + Wings radio carries events and imagery to the hub and app. Powered from an existing doorbell transformer, with IP54 weather protection for outdoor mounting.
Construction: tamper-protected enclosure with communication and battery supervision. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — UK Ajax stockist — with trade pricing on stocked Ajax product.
Key Features
- Wireless video doorbell with a built-in camera and AI human detection
- PIR sensor and motion zones reduce nuisance triggers
- Two-way audio and live view through the Ajax app
- Two-way Ajax Jeweller radio for alarms plus Wings for photo transmission - encrypted, frequency-hopping, jamming-resistant
- Integrates with the Ajax security system and scenarios
- Ingress protection: IP54 for outdoor mounting
- Powered from an existing doorbell transformer
Typical Applications
- Front-door video answering via the Ajax app
- Visitor and delivery detection with AI human filtering
- Homes already running an Ajax system
- Small business entrances
- Trade installs needing same-day stock - Netview CCTV Leicester ships Ajax from UK stock
Compatible Ajax Devices
- Ajax hubs - Hub 2, Hub 2 Plus, Hub Hybrid
- Ajax app (iOS / Android) - remote arm / disarm / notifications
- Ajax PRO app and Ajax PRO Desktop for installer commissioning
What's in the Box
- 1 × Ajax DoorBellPlus
- 1 × SmartBracket / mounting kit
- 1 × battery (pre-installed where applicable)
- 1 × quick start guide
📄 Download: Ajax DoorBellPlus Datasheet (PDF) — full technical specification, radio, battery and mechanical detail.
Detailed Specifications — Ajax Doorbell 66393.125.GR1 Video Doorbell with Built-in AI and PIR Sensor GREY
Full technical specification for the Ajax Doorbell 66393.125.GR1 Video Doorbell with Built-in AI and PIR Sensor GREY, drawn from the official Ajax datasheet.
| Identification | |
|---|---|
| SKU | 66393 |
| MPN | 66393.125.GR1 |
| EAN | 4823114066160 |
| Brand | Ajax |
| Product Type | Wireless Video Doorbell |
| Detection / Function | |
| Detection / Function | Video camera + AI detection + PIR |
| Photo Verification | Yes - via Wings protocol |
| Radio & Communication | |
| Radio Technology | Ajax Jeweller + Wings |
| Transmission | Two-way encrypted RF |
| Encryption | Block encryption (AES-based) |
| Open-space Range | up to 1700 m |
| Frequency Hopping | Supported |
| Anti-Jamming | Supported with notifications |
| Supervision | Automatic device polling |
| Power | |
| Power Supply | Mains / 8-24 V or 12-24 V transformer |
| Low-Battery Reporting | Supported to the hub |
| Mechanical & Environment | |
| Tamper Protection | Yes |
| Ingress Protection | IP54 |
| Installation | SmartBracket / surface mount |
| Operating Temperature | -10 C to +40 C |
| Compatibility | |
| Ajax Hubs | Hub 2, Hub 2 Plus, Hub Hybrid |
| End-User App | Ajax app (iOS / Android / desktop) |
| Installer Tools | Ajax PRO / Ajax PRO Desktop |
| Monitoring | ARC / CMS via SIA-DC09 (Contact ID / SIA) |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| Security Grade | EN 50131 Grade 2 / PD 6662:2017 compatible |
Frequently Asked Questions
What is the Ajax Doorbell?
A wireless video doorbell with a built-in camera, AI human detection and a PIR sensor, in grey, integrated into the Ajax app.
What does the AI add?
It distinguishes people from other movement, giving meaningful visitor and approach alerts rather than nuisance notifications.
Does it tie into my alarm?
Yes — it lives in the same Ajax app as your security system.
How does it communicate?
Over Ajax's encrypted radio, integrated with the Ajax ecosystem.
What do I need to use it?
An Ajax hub; managed via the Ajax app.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Ajax Doorbell 66393.125.GR1 Video Doorbell with Built-in AI and PIR Sensor GREY
Download the official Ajax datasheet for the DoorBellPlus, plus related Ajax alarm categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| Ajax DoorBellPlus Datasheet | Download datasheet | |
| Browse all Ajax Video Doorbells | Web | View Ajax Video Doorbells |
| Browse the full Ajax range | Web | View Ajax wireless alarms |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — UK Ajax stockist (Leicester). For trade pricing on Ajax product, contact our team on 0116 3800 838 or [email protected].
