Veracity VOR-ORL OUTREACH Lite IP Extender
Veracity VOR-ORL VOR-ORL OUTREACH Lite IP Extender
Ethernet Extender for non-POE connections
OUTREACH Lite provides a simple way to double the length of a 10/100 Ethernet connection. No configuration is required, it does not require a local power supply, and it does not restrict the throughput of the network link at all.
Compact and wall-mountable, OUTREACH Lite takes its power from the network cable using the universal 802.3af Power over Ethernet (POE) standard. Network connections can easily be upgraded to POE compatibility if it is not already available using a simple injector.
Note: OUTREACH Lite is powered by POE but does not forward it to other equipment. To extend network connections to devices that need POE or POE Plus, see Veracity's OUTREACH Max POE-forwarding Ethernet extender.

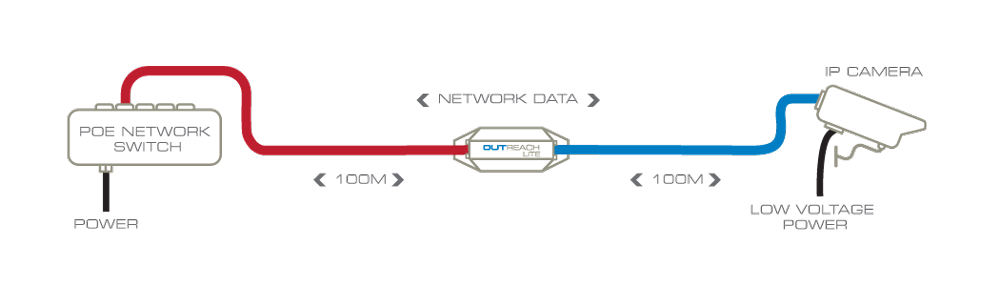

For Rapid installation : Extending network cable runs from an existing POE switch port is as simple as connecting OUTREACH Lite in-line with the cable. Cable runs of up to 200 metres (656 feet) in length are possible, by using a single OUTREACH Lite to connect two individual sections of up to 100 metres (328 feet) each.
Veracity's OUTREACH Lite Ethernet extender requires no external power supply. It simply has two network ports which configure automatically on connection for network speed, duplex and crossover. If no POE is available on the network, Veracity's OUTSOURCE injector can easily be added at either end of the connection. No other equipment is required by end devices, as all Cat5/Cat6 links are regular Ethernet connections.
