SFX 305m Cat6 UTP Cable Solid Copper LSZH Low Smoke Purple
The Securiflex SFX/C6-UTP-LSZH-PUR-305 is a 305m box of Category 6 U/UTP network cable with a purple LSZH (low smoke zero halogen) jacket — the low smoke choice for IP CCTV, access control and data runs inside offices, schools, hospitals, shops and other public buildings.
Solid 0.53mm bare copper conductors, Gigabit Ethernet and PoE ready up to 90m, CPR Euroclass Eca. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester.
Key Features
- Low smoke zero halogen jacket - limits smoke and toxic gas if a fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems occurs
- Cat6 4-pair UTP - 1000Mbps / 250MHz to 90m
- Solid bare copper conductors (0.53mm) - not CCA
- Supplied as a 305m easy-pull box
- Ideal for IP cameras, NVRs, PoE switches and LAN cabling

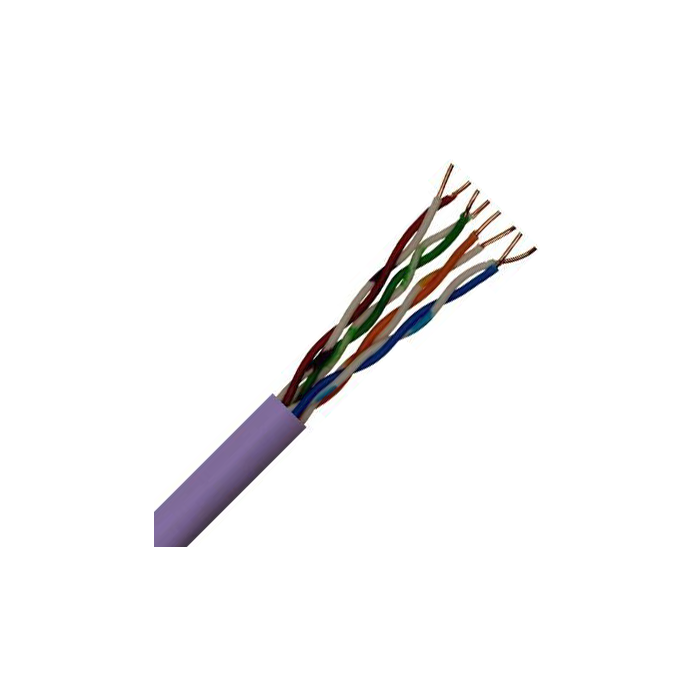

Securiflex SFX/C6-UTP-LSZH-PUR-305 — 305m Cat6 UTP Low Smoke (LSZH) Network Cable, Purple
Solid copper Cat6 cable with a low smoke zero halogen jacket for installs inside public and commercial buildings.
Overview
The Securiflex SFX/C6-UTP-LSZH-PUR-305 is a 305 metre box of Category 6, 4-pair unscreened (U/UTP) network cable with a purple LSZH (low smoke zero halogen, also called LSOH) outer jacket. If the cable is caught in a fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems, the LSZH jacket gives off far less smoke and no toxic halogen gases compared with standard PVC cable. That makes it the cable to specify inside offices, schools, hospitals, care homes, retail units, escape routes and any public building where low smoke cable is required.
Each pair uses solid 0.53mm bare copper conductors (not copper-clad aluminium), giving reliable Gigabit Ethernet and Power over Ethernet for IP CCTV cameras, NVRs, PoE switches, Wi-Fi access points, door entry and access control. The cable supports 1000Mbps / 250MHz over runs up to 90 metres and is supplied in an easy-pull box. Netview CCTV holds Securiflex cable in stock in Leicester with same-day dispatch and trade pricing for installers.
Key Features
- Low smoke zero halogen (LSZH) jacket - improved safety and protection in a fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems
- Category 6, 4-pair U/UTP - 1000Mbps transfer speed, 250MHz, up to 90m
- Solid bare copper 0.53mm conductors - full-copper performance for PoE
- CPR Euroclass Eca
- Unscreened design - thinner, more flexible and quicker to terminate
- White nylon rip-cord for fast jacket stripping
- Purple jacket (RAL 4005) to identify low smoke data runs
- 305m easy-pull box
Typical Applications
- IP CCTV - cabling PoE cameras back to NVRs and PoE switches
- Public and commercial buildings where low smoke cable is specified
- Structured LAN cabling - offices, schools, healthcare and retail
- Access control, intercom and Wi-Fi access point runs
Specifications
| Product code | SFX/C6-UTP-LSZH-PUR-305 |
| Cable type | Category 6, 4 pair U/UTP (unscreened) |
| Supplied as | 305m reel in easy-pull box |
| Performance | 1000Mbps / 250MHz at up to 90m |
| CPR Euroclass | Eca |
| Conductor | Solid bare copper, 0.53mm ±0.01 |
| Insulation | HDPE, 0.18mm |
| Pair colours | Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown |
| Jacket | LSZH (low smoke zero halogen), 0.55mm ±0.03 |
| Jacket colour | Purple (RAL 4005) |
| Overall diameter | 6.10mm ±0.03 |
| Rip-cord | White nylon 210D |
| Max conductor DC resistance @ 20°C | <95 Ω/km |
| Rated temperature | -40°C to +70°C |
What's in the Box
- 1 × 305m reel of Securiflex Cat6 U/UTP LSZH purple cable in easy-pull box
Detailed Specifications — Securiflex SFX/C6-UTP-LSZH-PUR-305
| Identification | |
|---|---|
| SKU | SFX/C6-UTP-LSZH-PUR-305 |
| MPN | SFX/C6-UTP-LSZH-PUR-305 |
| Brand | Securiflex |
| Product Type | Network Cable |
| Cable Construction | |
| Category | Cat6, 4 pair U/UTP |
| Length | 305 m |
| CPR Euroclass | Eca |
| Conductor | Bare copper, 0.53mm ±0.01 |
| Insulation | HDPE, 0.18mm |
| Jacket | |
| Material | LSZH (low smoke zero halogen) |
| Colour | Purple, RAL 4005 |
| Thickness | 0.55mm ±0.03 |
| Overall diameter | 6.10mm ±0.03 |
| Rip-cord | White nylon 210D |
| Electrical & Environmental | |
| Performance | 1000Mbps / 250MHz to 90m |
| Max DC resistance @ 20°C | <95 Ω/km |
| Rated temperature | -40°C to +70°C |
Frequently Asked Questions
What is the SFX/C6-UTP-LSZH-PUR-305?
A 305m box of Securiflex Cat6 U/UTP network cable with solid bare copper conductors and a purple low smoke zero halogen (LSZH) jacket.
What does LSZH mean?
Low Smoke Zero Halogen (also called LSOH). If the cable burns it produces much less smoke and no toxic halogen gas than PVC cable, which is why it is specified inside public and commercial buildings.
When should I use LSZH instead of PVC Cat6?
Use LSZH wherever the building owner, fire strategy or specification asks for low smoke cable — for example schools, hospitals, offices, retail and escape routes. For general indoor use PVC (SFX/C6-UTP-PVC-GRY-305) is fine; for outdoor runs choose the PE external-grade SFX/C6-UTP-PE-BLK-305.
Can I use it outdoors?
No — LSZH is an internal cable. Use the black PE external-grade version for outside runs.
Will it power PoE cameras?
Yes — the solid copper conductors suit PoE IP cameras, access points and switches over runs up to 90m.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch; trade and public welcome.
Documentation — Securiflex SFX/C6-UTP-LSZH-PUR-305
| Document | Format | Link |
|---|---|---|
| Technical Datasheet | Download datasheet | |
| Certificate of Conformity | View certificate | |
| HDBaseT accreditation | View accreditation | |
| Browse all CCTV Cable | Web | View CCTV Cable |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV (Leicester). Trade pricing: 0116 3800 838 or [email protected].
