4CH IP over Coax Extender. Long-Range PoE & PoE+ CCTV distance up to 2500m

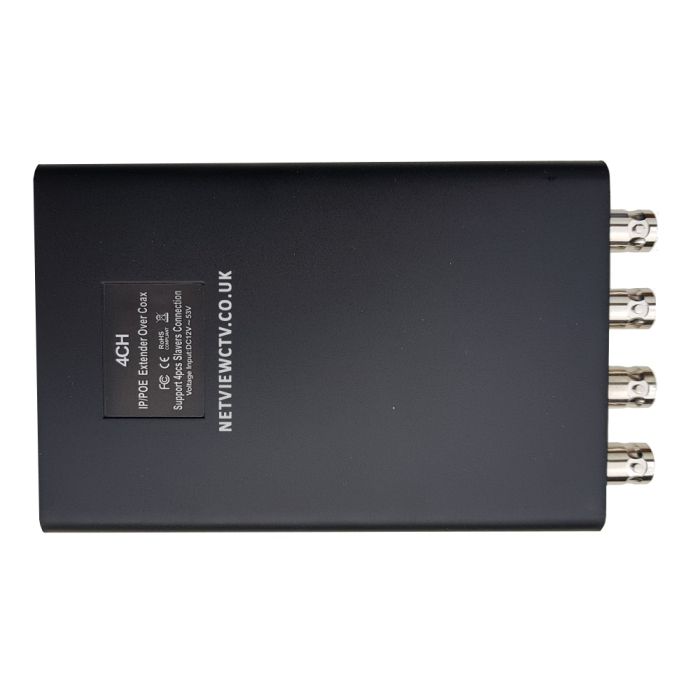

NV-JXIPVE604-POC/POE 4 Channel IP over Coax Video Extender
Suitable for PoE (15.4W) PoE+ (30W) & High Power PoE (60W)
Ideal for Locating CCTV Cameras requiring PoE power a long distance away
Designed for extending Network Signal & Power over Coax Cable (RG59) to a maximum distance of 2500m (600m with power). The extender has 4 BNC connectors supporting 4 Channels at the same time, each channel supporting @4-6 IP Cameras, with a max of 50watts of power per channel, network max rate of 100Mbps. Widely used in CCTV surveillance for PoE IP Cameras.
Min 2x Units required per setup: 1 to act as a Sender & 1 to act as a Receiver
- Long range Ethernet, POE & PoE+ over Coax Cable RG59
- Transmit 10/100Mbps Full Duplex Ethernet up to 2500m or more
- PoE Power up to 120W - enough for up to 20+ IP cameras (units daisy-chained)
- supports PoE+(30W) & High PoE(60W) PTZ Cameras e.g 8" Hkvision Darkfighter PTZ Cameras
- Power, Data & Control IP PTZ Cameras long distance using a single Coax cable
- Use standard BNC Connectors and BNC-T's to split off different cameras
- Fully automatic, simple to install and maintenance-free
- Transient Protection, Industrial temperature range, Lightning & Surge Protection
- Advaned 128-bit AES encrypted transmission
- Internal use Only
Some Example Scenarios:
8 IP Cameras
CH1~CH4: 2x POE IP Cameras on each channel @6.5watts each
16 IP Cameras
CH1~CH4: 4x POE IP Cameras on each channel @6.5watts each
15 IP Cameras and 1 PoE+ PTZ camera
CH1~CH3: 4x PoE IP Cameras + CH4: 1x PoE+ PTZ Camera @30W
28 IP Cameras and 2 PoE+ PTZ camera
CH1~CH3: 4x IP Cameras + CH4: to Extender2:
Extender2: CH1~CH3: 4x IP Cameras + CH4 to 2CH Extender3 + PSU
Extender3: CH1 4x IP Cameras + CH2 2x PTZ Cameras
Power supplies will be required for PoE transmission (not included) (Max 2 per system)
(i) 24W Power Supply
(i) 120W Power Supply
Compatible with the 2CH Extender
