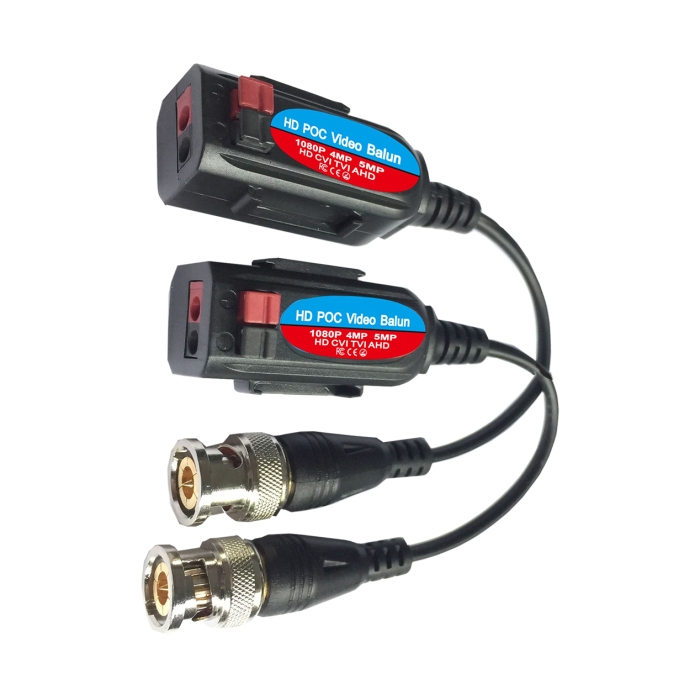

Netview PoC Balun for CCTV Hikvision PoC DVR compatible

£5.88 £4.90
ETA 23March
SKU
NV-HY801C-HD

Power Over Coax PoC Baluns with tail (PAIR)
Compatible with all HD-CVI TVI AHD CVBS & Hikvision Turbo HD PoC DVR
Sold as a pair : you will receive 2-Baluns in 1 pack

The  HD POC video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video, power and data signal via cost-effective Unshielded Twisted Paired (UTP) cable for application of POC camera and POC DVR. The HD POC video balun is also compatible with all HD-TVI, HD-CVI, AHD cameras up to 4K and CVBS analog cameras.

  • Single Channel POC & HD Video Balun
  • Real-time transmission over UTP cat5e/6
  • Compatible with all HD-TVI/CVI/AHD/CVBS and POC analog camera
  • Low crosstalk and noise suppression
  • Male BNC connector
  • Surge Protection: 2KV
  • Wave Filter Design, Anti-Static Design
  • Power and video signals transmit over one twist pair cable
  • 60 dB crosstalk and noise immunity
  • Exceptional interference rejection
  • ABS engineering plastic housing

Male BNC of the HD POC video balun allows connection directly to the camera and DVR. Push-pin terminal block allows tool-less connection of UTP cable output. Used in pairs, the HD POC video balun eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the HD POC video balun allow video signals to coexist in the same wire bundle as telephone, datacom. This allows the use of a shared or existing cable plant. The Surge Protection is up to 2KV to protect video equipment, and its crosstalk and noise immunity ensure quality video signals.
