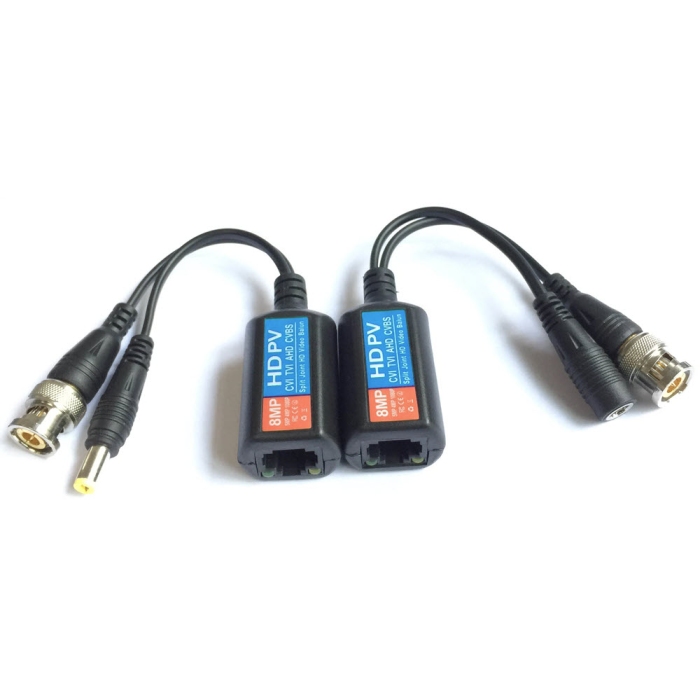

Netview Professional 4K Balun RJ45 to BNC Video + 12v DC Power
Netview NV-HY801C-HD 4K Professional PoCWhat is Hikvision PoC Balun Push-Fit (+Tail) for TVI/CVI/AHD/CVBS
*Compatible with all Power-Over-Coax (PoCWhat is Hikvision PoC) DVR's & PoCWhat is Hikvision PoC Cameras
Compatible with Hikvision Turbo HD PoCWhat is Hikvision PoC DVR's
Feature
1080P HD Video BalunFull-motion CCTV video at distance up to 350m-600m when used with any passive transceiver. Up to 300m for 960H/1080P AHD Cameras, up to 300m for 720P/1080P for HDTVI Cameras in DVR support.
Tool-Less Installation
No need to strip the wires, this 1080P AHD/HD-CVI/TVI/CVBS Passive HD Video Balun Transmitter adopted rj45 jack free installation method, tool-less, installs in seconds, save your time, makes the installation work more convenient!
1000V Max Surge Protection
This 1080P hd video balun has 1000V max surge protection. Built-in transient suppression protection, lasts for over 10000 hours/417 days. In addition, a specification which has detailed installation steps make the procession of installation simple and convenient was attached.
Widely Application
Compatible with HD-CVI, HD-TVI, HD-AHD, CVBS, NTSC, PAL, and SECAM video formats. 60 db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI /AHD or camera system, gold plated BNC better transmission quality long distance HD transmitter.
- Single Channel up to 8MP HD Video Balun
- Real-time transmission over UTP Cat5e Cat6 Cable
- Compatible with all HD-TVI/CVI/AHD/CVBS and POCWhat is Hikvision PoC analog camera
- Low crosstalk and noise suppression
- Male BNC connector & Female 12v DC Plug
- Surge Protection: 2KV
- Wave Filter Design, Anti-Static Design
- Power and video signals transmit over one twist pair cable
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- ABS engineering plastic housing
Male BNC of the HD video balun allows connection directly to the camera and DVR. RJ45 terminal block allows crimped connection of UTP cable. Used in pairs, the HD video balun eliminates costly and bulky coaxial cable.
The superior interference rejection and low emissions of the HD video balun allow video signals to coexist in the same wire bundle as telephone, datacom. This allows the use of a shared or existing cable plant. The Surge Protection is up to 2KV to protect video equipment, and its crosstalk and noise immunity ensure quality video signals.
2pcs (1 pair) in each pack
Passive Video Balun For HD-CVI/TVI/AHD 8MP 5MP 4MP 3MP 1080P 720P 960H Transceiver Supply Power for HD Camera
Features:
Wave Filter Design, Anti-Static Design
60dB crosstalk and noise immunity
Exceptional interference rejection
Built-in TVS for Surge Protection
-
Male BNC allows connection directly to the camera or DVR
-
Real-Time Transmission
-
No power/pigtail Required
-
LED lights up indicating the power input and surge protection
