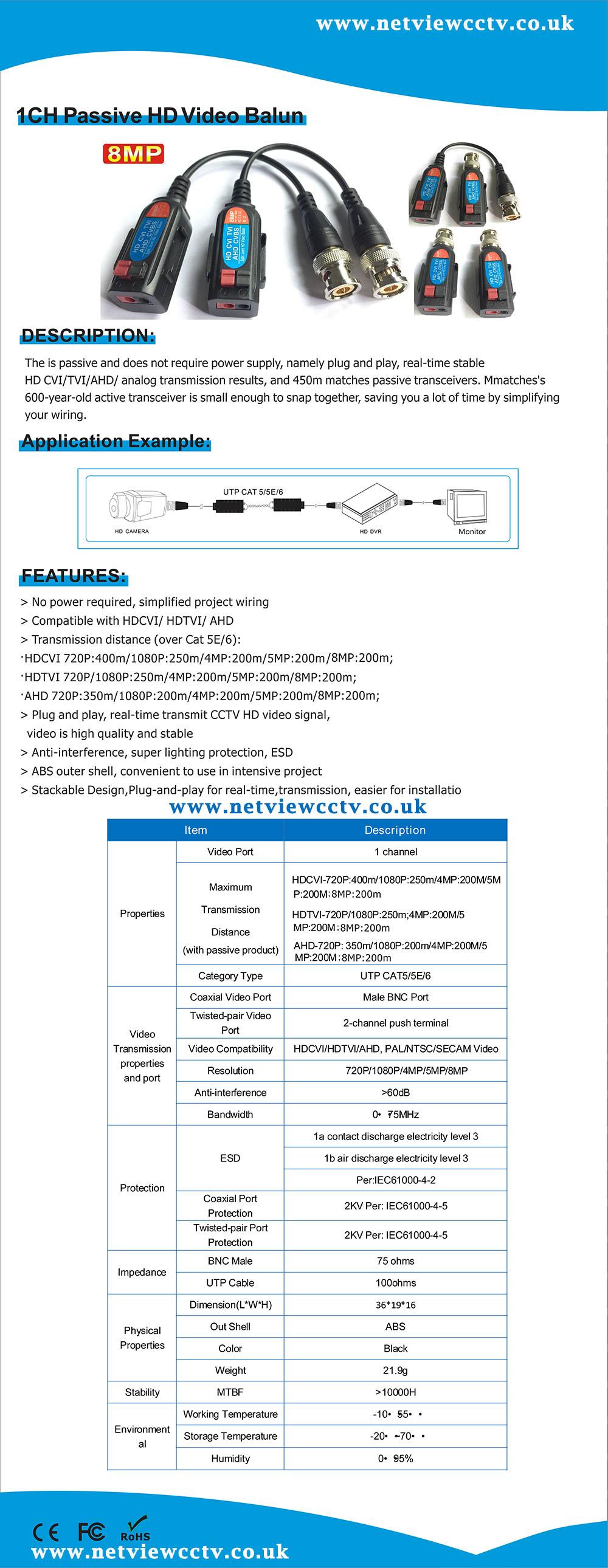

Netview Professional 4K Balun Push-Fit (+Tail) for TVI/CVI/AHD/CVBS

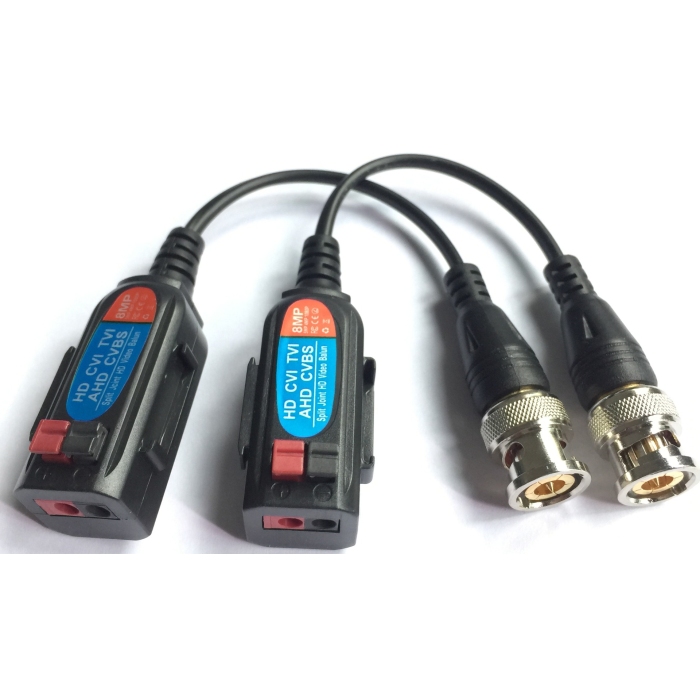

Netview NV-HY102C-HD 4K Professional Balun Push-Fit (+Tail) for TVI/CVI/AHD/CVBS
Compatible with all Hikvision & HiLook Turbo HD DVR's
HD Video Baluns convert an unbalanced video signal into a balanced signal to transmit on a Cat5/5e UTP hence the name bal-un (balanced/unbalanced) Network cable (UTP) is perfect for video transmission for transmitting video image on a Cat5 or Cat6 twisted pair cable (network cable)
Suitable for use with Hikvision Turbo HD Cameras & DVR's up to 4K 8MP resolution
- HD Balun Compatible with all HD-CVI, HD-TVI, AHD, CVBS & Turbo HD
- Up to 250m for 720P/1080P/3MP/4MP/5MP/8MP Hikvision Turbo HD Cameras
- Up to 250m for 720P/1080P/3MP/4MP/5MP/8MP TVI Cameras
- Up to 450m for 720P & 250m for 1080P/3MP/4MP/5MP/8MP CVI Cameras
- Up to 350m for 720P/960P AHD Cameras
- Up to 250m for 1080P/3P/4MP/5MP/8MP AHD Cameras
- NTSC, PAL & SECAM video formats
- No Power required
- 60dB cross talk and noise immunity
- Built-in transient suppression protection
- Compact size for easy installation
- Bulit in transient suppression protection
- No Need for Ground Loop Isolators in case of video distortion
- Use with High Quality solid Copper Cat5 or Cat6 UTP cable
- HD Balun Compatible with all HD-CVI, HD-TVI, AHD, CVBS & Turbo HD
- Up to 250m for 720P/1080P/3MP/4MP/5MP/8MP Hikvision Turbo HD Cameras
- Up to 250m for 720P/1080P/3MP/4MP/5MP/8MP TVI Cameras
- Up to 450m for 720P & 250m for 1080P/3MP/4MP/5MP/8MP CVI Cameras
- Up to 350m for 720P/960P AHD Cameras
- Up to 250m for 1080P/3P/4MP/5MP/8MP AHD Cameras
- NTSC, PAL & SECAM video formats
- No Power required
- 60dB cross talk and noise immunity
- Built-in transient suppression protection
- Compact size for easy installation
- Bulit in transient suppression protection
- No Need for Ground Loop Isolators in case of video distortion
- Use with High Quality solid Copper Cat5 or Cat6 UTP cable
What are video baluns & why use them?
A Video Balun is a good choice for long cable runs. Coaxial (RG59) cable is usually the best medium for transmitting video, however, video traveling on RG59 is limited to about 600' before video quality degrades. Video Baluns allow signal to travel over Cat5E for several thousand feet. Additionally, Cat5E cable is less expensive and easier to pull.
There are 2 types of Video Baluns, passive and active. Passive video Baluns are good for long distances. Active Video Balun transceivers can extend the range but they require power (12 V DC)
Another advantage of transmitting video overnetwork cable is that you have multiple pairs of wires. Typically you have 4 pairs of 22 gauge wire in a Cat5/6 cable, so you can use one Cat5/6 cable for 4 security cameras.
