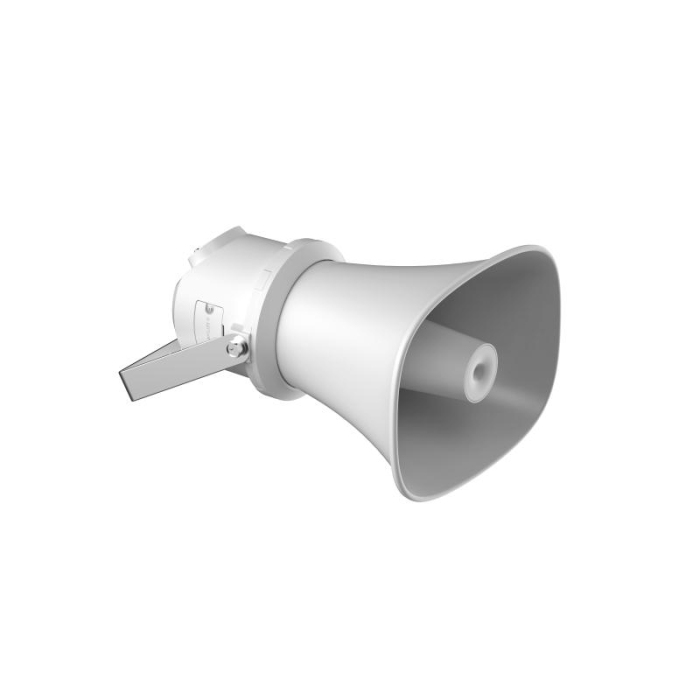

Hikvision DS-QAZ1307G1T-E(C) 7W IP Network Horn Speaker, PoE, SIP
The Hikvision DS-QAZ1307G1T-E(C) is a 7 W IP network horn speaker for public address, voice broadcast and two-way audio over an IP network. PoE-powered and rated IP67, it is built for outdoor perimeters, car parks, building exteriors and industrial sites.
A high-speed dual-core industrial chipset with NOR Flash and 4 GB eMMC dual storage gives reliable, secure operation, while SIP support enables full two-way audio with a compatible platform or intercom.
- 7 W rated power horn speaker, up to 121 dBSPL maximum sound pressure
- PoE (IEEE 802.3af) powered — single-cable installation
- SIP two-way audio with built-in dual electret microphones
- TTS text-to-speech broadcasting with natural male / female voices
- Scheduled arming, alarm input and audio linkage for event-triggered announcements
- Dual-core industrial chipset, NOR Flash and 4 GB eMMC dual storage, secure boot
- Audio processing: AEC, AGC, ANS, DRC; G.711 / MP3, MP3 & WAV files
- IP67 weatherproof for outdoor installation
Manage one unit locally over its web interface or run many units centrally from a Hikvision audio platform. Ideal for installers adding voice alarm, perimeter deterrent or paging to a CCTV system.
Hikvision DS-QAZ1307G1T-E(C) 7W IP Network Horn Speaker
PoE-powered, IP67 horn speaker with SIP two-way audio and TTS broadcasting — for perimeter deterrent, paging and voice alarm. In stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing.
| Speaker | |
|---|---|
| Rated Power | 7 W |
| Impedance | 8 Ω |
| Max. Sound Pressure | 121 dBSPL |
| Sensitivity (1 m, 1 W) | 110 dB |
| Coverage Direction | 70° horizontal × 100° vertical |
| Frequency Response | 300 Hz to 13 kHz |
| Signal-to-Noise Ratio | 85 dB |
| Microphone | |
| Type | Electret |
| Quantity | 2 |
| Frequency Response | 100 Hz to 20 kHz |
| Sensitivity | -42 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16-bit |
| Audio | |
| Two-Way Audio | Yes — via SIP |
| Audio Algorithm | AEC, AGC, ANS, DRC |
| Audio Bit Rate | G.711ulaw / G.711alaw (64 Kbps), MP3 (128 Kbps) |
| Audio File Format | MP3, WAV |
| Broadcast Functions | TTS text-to-speech, scheduled arming, audio linkage, text broadcasting |
| System & Network | |
| Processor | High-speed industrial-grade dual-core chipset |
| Storage | NOR Flash + 4 GB eMMC dual storage; system dual-backup |
| Security | Secure startup, login locking mechanism, password complexity prompt, security audit log |
| Network | IP network — LAN / WAN remote platform management and local web configuration |
| Interface | |
| Alarm Input | 1 |
| Power Output | 12 VDC, 25 mA max. |
| General | |
| Power Supply | PoE (IEEE 802.3af) |
| Protection | IP67 |
| Package Dimensions | 310 mm × 245 mm × 350 mm |
| Weight | Approx. 3.61 kg (packaged) |
