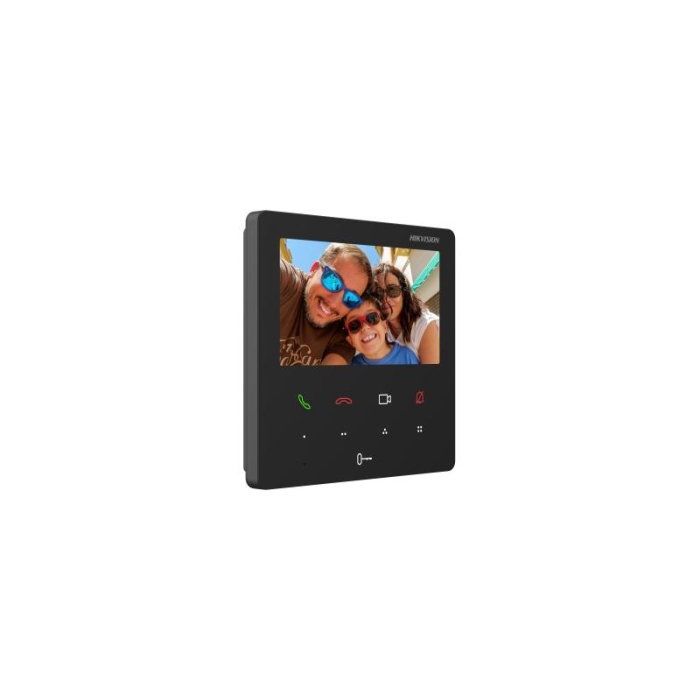

Hikvision DS-KH6110-WE1 4.3-inch IP Indoor Station, Black
Hikvision DS-KH6110-WE1 — 4.3-inch IP Video Intercom Indoor Station (Black)
4.3-inch capacitive touchscreen IP indoor station with Wi-Fi, standard PoE and Hik-Connect remote answer/unlock. In stock at Netview CCTV, Leicester — same-day dispatch and trade pricing for installers.
The Hikvision DS-KH6110-WE1 is the entry-level 4.3-inch IP video intercom indoor station — a compact, budget-friendly answer station with Wi-Fi, standard PoE and Hik-Connect mobile-app control. Designed for apartment installs and small-budget residential deployments where a full 7-inch unit is overkill.
- 4.3-inch 480 x 272 colour TFT capacitive touchscreen
- Built-in Wi-Fi (2.4 GHz) + Standard PoE on a single Cat-5e/6 cable
- Hik-Connect app: remote answer, live view, mobile unlock
- Links up to 16 indoor extensions on the same call group
- 4 customisable touch buttons + 4 alarm inputs
Hikvision DS-KH6110-WE1 — 4.3-inch IP Video Intercom Indoor Station (Black)
4.3-inch capacitive touchscreen IP indoor station with Wi-Fi, standard PoE and Hik-Connect remote answer/unlock.
Overview
The Hikvision DS-KH6110-WE1 is the entry-level 4.3-inch IP video intercom indoor station in the KH6 Pro range. It targets apartment-block installs and budget-conscious residential deployments where the full 7-inch DS-KH6320 indoor station would be overkill, but the customer still needs flexible IP intercom functions like Hik-Connect mobile control, live view of door stations and IP cameras, and 4 customisable touch buttons. Standard PoE means no extra power adapter — one Cat-5e/6 cable does both power and network.
Key Features
- 4.3-inch colour TFT capacitive touch screen with 480 x 272 resolution
- Built-in Wi-Fi 802.11 b/g/n (2.4 GHz) plus 100 Mbps Ethernet
- Standard PoE (IEEE 802.3af) - no separate power adapter needed
- Hik-Connect mobile app integration: remote answer, live view and unlock from Android or iOS
- Live view of linked Hikvision IP door stations and network cameras
- 4 customisable touch buttons + 9-button touch panel design
- Two-way audio with G.711 codec, noise suppression and echo cancellation
- 4 alarm inputs for integration with intrusion/alarm systems
- Linked indoor extensions: up to 16 on the same call group
- Linux operating system, embedded processor
- Compact 120 x 120 x 21 mm form factor
- Wall mounting or optional DS-KABH6350-T table bracket
Typical Applications
- Apartment complexes — cost-effective per-unit answer station for IP intercom deployments where 7-inch stations would push the budget too high.
- Budget single dwellings — pair with a Hikvision IP villa door station for an end-to-end one-button entry system.
- Indoor extension stations — add as a secondary station to a primary KH6320 / KH8 indoor station for multi-room intercom coverage.
- Hik-Connect-managed sites — mobile-first answer experience with a backup wall station.
Compatible Hikvision Devices
- IP door stations: DS-KV6113-PE1(C), DS-KV8113-WME1(B), DS-KD8003-IME1, DS-KD8003Y-IME2, DS-KD7003EY-IME2 (with the IP-to-2-wire converter)
- Indoor extensions: up to 16 additional KH6 indoor stations on the same call group
- Network cameras: up to 16 linked Hikvision IP cameras for live-view at the indoor station
- Mobile: Hik-Connect app (Android & iOS) for remote answer, live view and unlock
- Recording / management: Hikvision NVRs and iVMS-4200 for centralised configuration
What's in the Box
- 1 × DS-KH6110-WE1 4.3-inch IP indoor station (black)
- 1 × Wall mount bracket
- 1 × Mounting screw set
- 1 × Quick-start guide
Optional table bracket DS-KABH6350-T available separately.
📄 Download: Hikvision DS-KH6110-WE1 official datasheet (PDF) — full technical specification and dimension drawings.
Detailed Specifications — Hikvision DS-KH6110-WE1 (Black)
Full technical specification for the Hikvision DS-KH6110-WE1 (Black), taken from the official Hikvision datasheet.
| Display | |
|---|---|
| Screen Size | 4.3-inch |
| Type | Colour TFT capacitive touch screen with 9 touch buttons |
| Resolution | 480 × 272 |
| System | |
| Operating System | Linux |
| Processor | Embedded processor |
| ROM | 16 MB |
| RAM | 128 MB |
| Audio | |
| Audio Input | 1 × built-in omnidirectional microphone |
| Audio Output | 1 × built-in loudspeaker |
| Audio Compression | G.711 U / G.711 A |
| Audio Bitrate | 64 Kbps |
| Audio Processing | Noise suppression and echo cancellation |
| Network | |
| Wired Network | 1 × RJ-45, 100 Mbps |
| Wi-Fi | 2.4 GHz, IEEE 802.11 b / g / n |
| Network Protocols | TCP/IP, SIP, RTSP |
| Power Supply | Standard PoE (IEEE 802.3af) / 12 VDC |
| Power Consumption | ≤ 4 W |
| Interfaces & Capacity | |
| Alarm Input | 4 channels |
| Touch Buttons | 9 (with 4 customisable) |
| Linked Indoor Extensions | 16 |
| Event Capacity | 200 records |
| Notice Capacity | 200 records |
| Mobile App | |
| App | Hik-Connect (Android & iOS) |
| Functions | Remote answer, live view, remote unlock, push notifications |
| General | |
| Colour / Finish | Black |
| Installation | Wall mount or table mount (optional DS-KABH6350-T) |
| Dimensions (W × H × D) | 120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83") |
| Net Weight | 197.8 g (0.4 lb) |
| Working Temperature | -10 °C to +50 °C |
| Working Humidity | 10% to 90% |
| Environment | Indoor |
| Languages | English plus 30+ additional languages |
