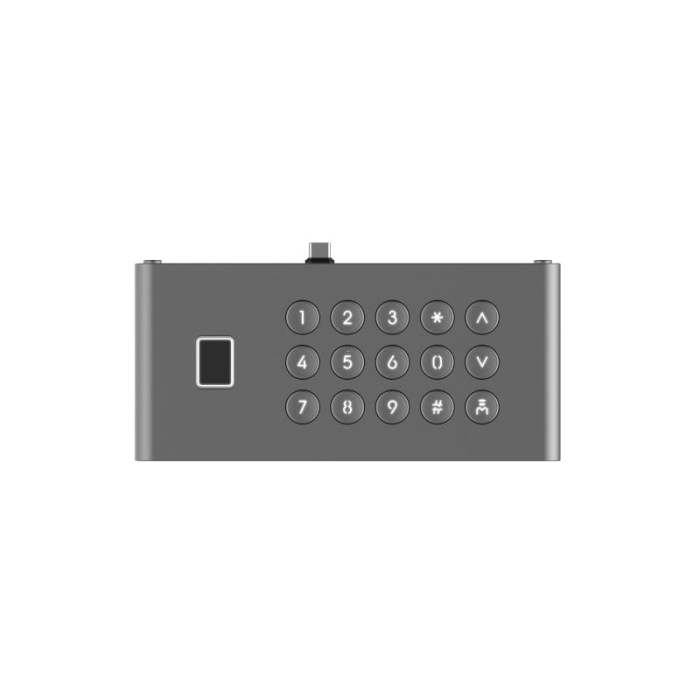

Hikvision DS-KDM9633-FKP Keypad & Fingerprint Module for DS-KD9633 Door Station
The Hikvision DS-KDM9633-FKP is the keypad and fingerprint expansion module for the DS-KD9633 series face recognition door station, adding a 15-button backlit keypad and a fingerprint reader for up to 5,000 fingerprints.
Connects by USB-C, and shares the same IP65 / IK07 outdoor-rated construction as the door station.
Key Features
- 15-button keypad with backlight compensation
- Fingerprint reader — capacity for 5,000 fingerprints
- Designed for the DS-KD9633 series door stations
- USB-C connection to the host door station
- IP65 & IK07 rated for outdoor use
- Surface or flush mounting
- Plastic and aluminium construction, -30°C to +60°C
Hikvision DS-KDM9633-FKP — Keypad & Fingerprint Module
15-button keypad and fingerprint reader for DS-KD9633 series door stations.
Overview
The Hikvision DS-KDM9633-FKP extends a DS-KD9633 series face recognition door station with two extra credential types: a 15-button backlit keypad for PIN entry and a fingerprint reader holding up to 5,000 fingerprints.
That matters on sites where face recognition alone is not enough — contractors who should not be enrolled on face, users who prefer a PIN, or doors where a second factor is required. The module connects to the host door station over USB-C and shares its outdoor rating, so the finished entrance stays consistent.
Built for outdoor use in plastic and aluminium with backlight compensation behind the keypad, IP65 and IK07 protection and a -30°C to +60°C operating range. Surface and flush mounting are both supported.
Key Features
- 15 physical buttons with backlight compensation
- Fingerprint reader — 5,000 fingerprint capacity
- Purpose-built for the DS-KD9633 series door station
- USB-C connection to the host unit
- IP65 & IK07 protection for outdoor entrances
- Surface or flush mounting
- Operating range -30°C to +60°C, 10–90% humidity
- Compact 74 × 159.2 × 29.2 mm footprint
Typical Applications
- Two-factor entry — face plus PIN or fingerprint on higher-security doors
- Contractors and temporary users who should not be face-enrolled
- Apartment blocks and offices wanting PIN entry alongside face
- Retrofit onto an existing DS-KD9633 installation
Compatible Hikvision Devices
- DS-KD9633-WBE6 face recognition door station
- Other DS-KD9633 series door stations
- Hikvision access controlHikvision Access Control: The Complete UK Installer Guide and video intercom management software
What's in the Box
- 1 × Hikvision DS-KDM9633-FKP keypad & fingerprint module
- 1 × mounting kit and fixings
- 1 × quick start guide
Detailed Specifications — Hikvision DS-KDM9633-FKP
Full technical specification from the official Hikvision datasheet.
| Identification | |
|---|---|
| SKU | DS-KDM9633-FKP |
| MPN | DS-KDM9633-FKP |
| Brand | Hikvision |
| Product Type | Video Intercom Keypad & Fingerprint Module |
| Compatible With | DS-KD9633 series door stations |
| Functions | |
| Buttons | 15 physical buttons |
| Backlight | Backlight compensation behind keypad |
| Fingerprint Capacity | 5,000 |
| Interfaces & Power | |
| Connection | USB-C |
| Power Supply | 5 VDC, 0.5 A |
| Mechanical & Environment | |
| Dimensions | 74 × 159.2 × 29.2 mm |
| Net Weight | 0.335 kg |
| Material | Plastic and aluminium |
| Installation | Surface or flush mounting |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Protection | IP65, IK07 |
Frequently Asked Questions
What does the DS-KDM9633-FKP do?
It adds a 15-button keypad and a fingerprint reader to a Hikvision DS-KD9633 series face recognition door station.
How many fingerprints can it store?
Up to 5,000.
Which door stations is it compatible with?
The DS-KD9633 series, including the DS-KD9633-WBE6.
How does it connect?
By USB-C to the host door station; it is powered at 5 VDC, 0.5 A.
Can it be used outdoors?
Yes — IP65 and IK07 rated, -30°C to +60°C, with surface or flush mounting.
Is it available yet?
Yes — available to order now from Netview CCTV Leicester. Call 0116 3800 838 for current stock and delivery times.
