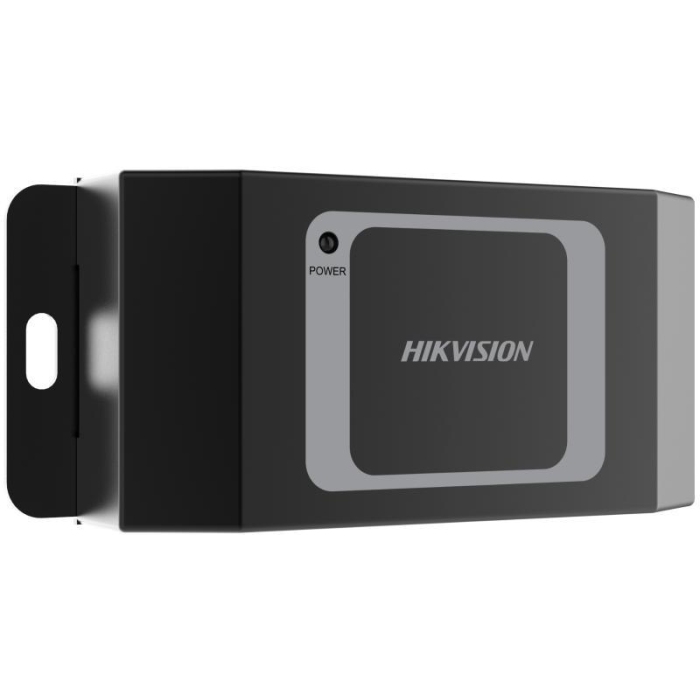

Hikvision DS-K2M061 Secure Door Control Module
The Hikvision DS-K2M061 is a secure door control module that sits between an access control terminal and the door hardware — keeping lock control wiring isolated on the secure side of the door for tamper-resistant access control.
It communicates with the terminal over RS-485 to execute open, close, normally-open and normally-closed commands, and reports door magnetic, exit button and tamper-proof signals back to the controller. A Wiegand input lets you add a Wiegand card reader for entry / exit control.
- Secure interlayer module between the access control terminal and the lock
- RS-485 communication for open / close / normally-open / normally-closed commands
- Collects door magnetic, exit button and tamper-proof signals
- Wiegand input for connecting a Wiegand card reader
- Interfaces: 1 lock control, 1 exit button, 1 door contact, 2 alarm in, 1 alarm out
- Powered by 12 VDC / 0.5 A; wall-mounting
- Wide operating range: -40 °C to 70 °C
An essential component for secure-side door control on Hikvision access systems. See the accessories tab for compatible terminals, controllers and exit buttons.
Hikvision DS-K2M061 Secure Door Control Module
Keeps lock control wiring isolated on the secure side of the door — RS-485 interlayer between the access terminal and the lock. In stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing.
| Function | |
|---|---|
| Role | Secure interlayer module between the access control terminal and the lock, door magnetic and exit button |
| Commands | Open door, close door, normally open, normally closed — executed via RS-485 from the terminal |
| Signal Collection | Door magnetic signal, exit button signal, tamper-proof signal |
| Reader Support | Wiegand interface for connecting a Wiegand card reader |
| Interface | |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Alarm Input | 2 |
| Alarm Output | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| General | |
| Power Supply | 12 VDC / 0.5 A |
| Installation | Wall mounting |
| Indicator | 1 — power supply |
| Working Temperature | -40 °C to 70 °C |
| Working Humidity | 0% to 90% |
| Dimensions | 48 mm × 115 mm × 26 mm |
| Weight | Approx. 0.25 kg (packaged) |
