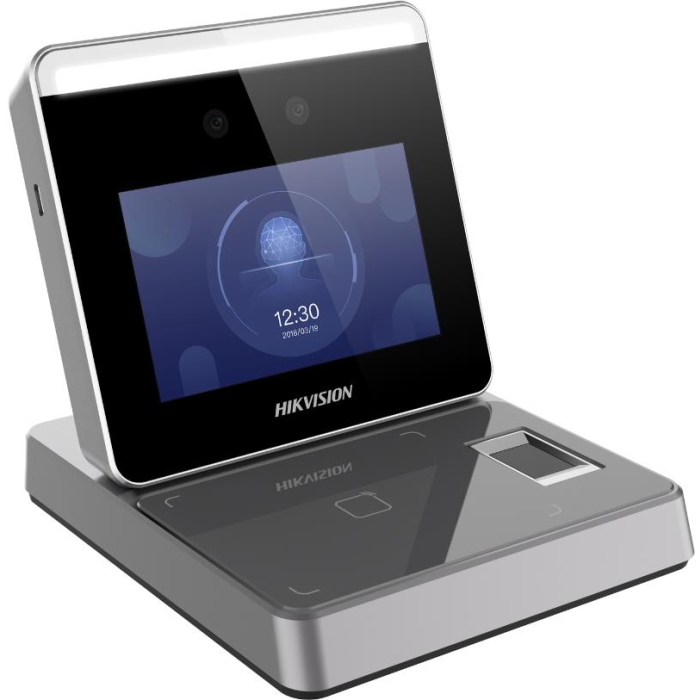

Hikvision DS-K1F600U-D6E-F Facial Recognition Enrollment Station
The Hikvision DS-K1F600U-D6E-F is a desktop facial recognition enrollment station that lets you register users quickly and accurately for a Hikvision access control system — capturing face, fingerprint and card credentials from one device.
A 3.97-inch capacitive touchscreen and 2 MP wide-angle dual-lens camera with WDR make face enrolment fast and reliable, while the multi-format card reader handles 13.56 MHz M1, DESFire and Felica cards plus 125 kHz EM cards.
- 3.97-inch capacitive LCD touchscreen (800 × 480)
- 2 MP wide-angle dual-lens camera with WDR; face capture 0.3–1.5 m
- Enrols face, fingerprint, 13.56 MHz IC cards and 125 kHz ID cards
- Supported cards: M1, DESFire, Felica and EM
- Capacity: 2,000 users / faces, 20,000 fingerprints, 20,000 cards
- Connectivity: TCP/IP, 2.4 GHz Wi-Fi, USB and USB Type-C
- Linux operating system; powered by DC 12 V / 2 A
A must-have bench tool for installers commissioning Hikvision face and fingerprint terminals. See the accessories tab for compatible terminals, controllers and cards.
Hikvision DS-K1F600U-D6E-F Facial Recognition Enrollment Station
Register face, fingerprint and card credentials from one desktop device — the commissioning tool for Hikvision access control. In stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing.
| Display | |
|---|---|
| Screen | 3.97-inch LCD touch screen |
| Touch | Capacitive |
| Resolution | 800 × 480 |
| Camera & Face Recognition | |
| Camera | 2 MP wide-angle dual-lens |
| Wide Dynamic Range | Supported |
| Face Capture Distance | 0.3 m to 1.5 m |
| Card Reading | |
| Card Frequency | 13.56 MHz and 125 kHz |
| Supported Cards | M1 card, DESFire card, Felica card, EM card |
| Card Reading Distance | 0 cm to 5 cm |
| Capacity | |
| Users | 2,000 |
| Faces | 2,000 |
| Fingerprints | 20,000 (up to 10 per person) |
| Cards | 20,000 |
| Offline Enrolment Records | 2,000 |
| System & Connectivity | |
| Operating System | Linux |
| Wired Network | TCP/IP |
| Wi-Fi | 2.4 GHz, 802.11 b/g/n |
| USB | 1 × USB, 1 × USB Type-C |
| General | |
| Enrolment Functions | Face picture, fingerprint, 13.56 MHz IC card number, 125 kHz ID card number |
| Power Supply | DC 12 V / 2 A |
| Dimensions | 121.6 mm × 137.9 mm × 125 mm |
| Weight | Approx. 1.09 kg (packaged) |
