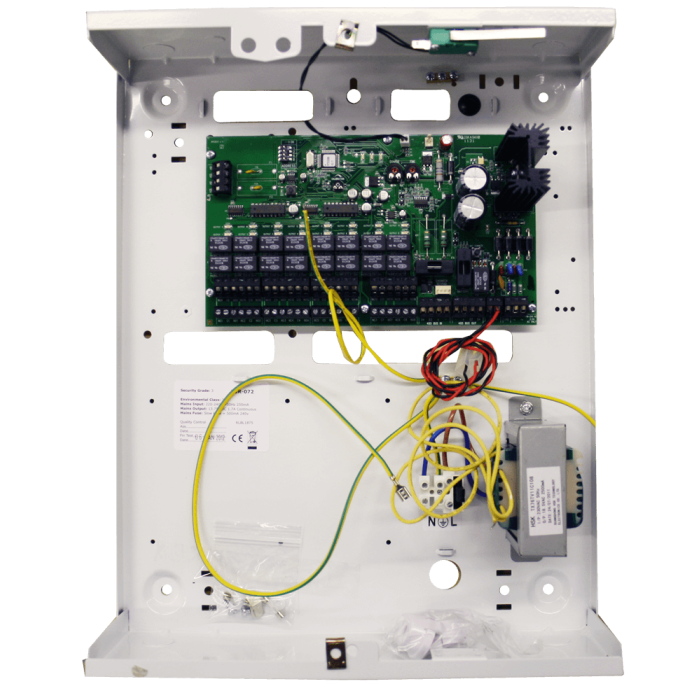

Pyronix EURO-ZEM8+PSU Wired Zone Expander with Power for Euro76 Control Panel

Pyronix Wired EURO-ZEM8+
8 Zone Expander with power supply for Euro Control Panels.

The EURO-ZEM8+PSU allows you to expand the security system with an additional 8 inputs and runs off its own intelligent power unit. Whatever the need or requirement, add 8 wired devices to the EURO control panels to seamlessly adapt the system to suit.

The unit comes in a metal case with front and rear tamper for added peace of mind that the system is secure.

• 8 Double Pole or Double EOL Zone Expander + 3EOL
• 4 Transistor outputs available
• Integrated 2.5A power supply
• Integrated RS485 repeater for extending data bus range
• Complies with EN50131-1
• In Metal Housing
• Tamper protection

For Double Pole wiring you will need to set the control panel in 4K7/2K2 mode (4K7 resistor for alarm and 2K2 resistor for tamper).
