Pyronix Enforcer V11 ENF/KIT5-UK Wireless Alarm Kit 5
Pyronix Enforcer V11 Panel
The most advanced Pyronix system released to date, the Enforcer V11 delivers real added value with every installation; security, automation and video that can be tailored, controlled, scheduled and delivered for any user preferences. Expand and enhance system application capabilities further than ever before, with Wi-Fi built onboard alongside a range of new and innovative features that practically cover any installation requirements for homes or businesses. This system is all you need.
- Enforcer V11 all-in-one two-way wireless control panel
- Wi-Fi now built onboard the main PCB
- HomeControlHUB and AndroidTablet compatible
- Multiple simultaneous communication channels and flexibility
- Selectable supervision per zone
- Occupancy detector zone attribute and timers
- Digital WPS button for quick WIFI setup
- Maximum total zones 66 - 32 wireless zones expandable to 64 - 2 wired zones expandable to 34
- 3 programmable wired outputs expandable to 38
- 80 user codes, 32 wireless keyfobs with individual user ID
- Inbuilt proximity reader (set/unset with tag)
- Wide range of two-way wireless peripherals available
- Security Grade 2, Environmental Class II
- Customisable push and voice notifications
- PyronixCloud is a yearly subscription service*
The Perimeter Protection Kit provides greater opportunity for early detection and prevention of break-ins and has additional benefits:
- End-user convenience and protection – the perimeter protection kit enables the end-user to move around their property whilst continuously protecting it.
- Installer convenience – an all-in-one, great value kit that’s ready for installation; easy to handle and quick to install.
- Wireless solution – possesses advantages over wired solutions; faster and easier to fit with minimal disruption.

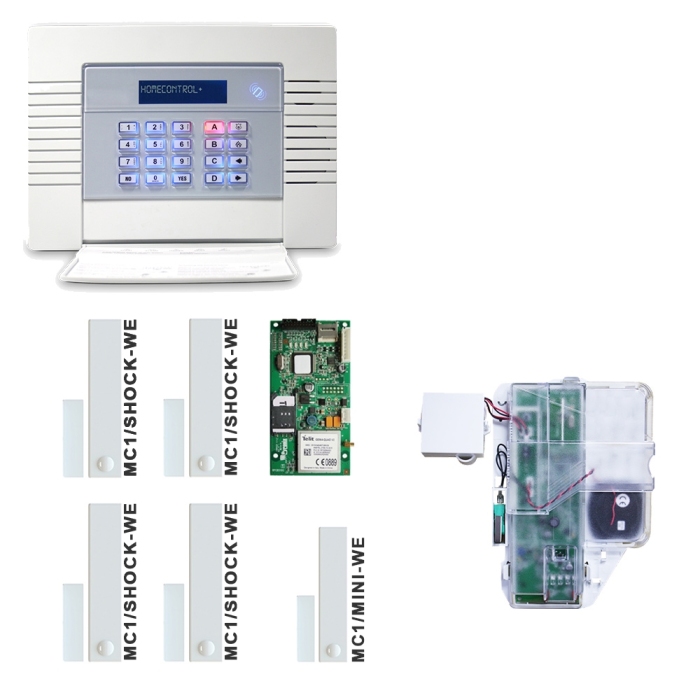

Pyronix ENF/KIT5-UK Enforcer V11 Wireless Perimeter Protection kit 5 contains:
- 1x ENF32UK-WE Enforcer V11 all in one two-way Wireless Panel
- 1x DIGI-WIFI communicator (pre-installed)
- 4x MC1/SHOCK-WE - Wireless 2-in-1 shock sensor + magnetic contact
- 1x MCNANO-WE - Two-way wireless nano magnetic contact
- 1x DELTA/MOD-WE - Wireless Deltabell Module (installs inside an external Bellbox)
The outside Bellbox Base & Cover are NOT included with this but can be purchased seperately here: Bellbox BLUE or RED
For multiple Wireless accessories available for this Kit, see the accessories tab just below the price
Read the full installer guide
Ajax MotionProtect vs PyronixAjax MotionProtect vs Pyronix KX: PIR Detector Guide KX wireless PIR detectors - which sits behind which panel on which UK install?
Read the guide →
Pyronix Enforcer V11 Features
-
Enforcer V11 all-in-one two-way wireless control panel
-
Wi-Fi now built onboard the main PCB
-
HomeControlHUB and AndroidTablet compatible
-
Multiple simultaneous communication channels and flexibility
-
Selectable supervision per zone
-
Occupancy detector zone attribute and timers
-
Digital WPS button for quick WIFI setup
-
Maximum total zones 66 - 32 wireless zones expandable to 64 - 2 wired zones expandable to 34
-
3 programmable wired outputs expandable to 38
-
80 user codes, 32 wireless keyfobs with individual user ID
-
Inbuilt proximity reader (set/unset with tag)
-
Wide range of two-way wireless peripherals available
-
Security Grade 2, Environmental Class II
-
Customisable push and voice notifications
-
PyronixCloud is a yearly subscription service*
Control Panel Technical Characteristics
|
Two-way wireless technology |
Yes |
|
Independent areas |
4 |
|
Part sets |
4 |
|
Tamper protection |
Front and rear |
|
LCD keypad with integrated proxmity reader |
Yes |
|
User codes and prox tags |
80 |
|
Guard codes |
10 |
|
Reporting formats |
WIFI / DIGI-LAN: Contact ID IP, Fast Format IP, SIA IP, Push Notifications. | DIGI-GPRS / DIGI-GPRS+SIM: Contact ID IP, SIA IP, Push Notifications and SMS (SMS not with DIGI-GPRS+SIM). | DIGI-1200 / DIGI-GSM: Contact ID, Fast Format, SIA and SMS. |
|
System logs |
750 |
Enforcer two-way wireless technology
|
Signal Strength Indicators (SSI) |
Yes |
|
Instant two way device control (ITDC) |
Yes |
|
Pyronix high security two way wireless data encryption protocol (TDE) |
Yes |
|
Pyronix intelligent jamming detection |
Yes |
|
Programmable wireless supervision time |
Yes |
|
868MHz transceiver FM technology |
Yes |
|
One push to learn |
Yes |
|
Transmission method |
Fully encrypted rolling code | (4294967295 combinations) |
|
Transmission range |
300m in open space |
Inputs & outputs
|
Zone type |
Wireless and Wired |
|
Channels |
2 |
|
Two-way wireless zones |
64 (maximum with additional wireless expander) |
|
Onboard wired zones |
2 (wired to I/O board) |
|
Wired EOL zones |
34 (maximum with additional wired expanders) |
|
Wired double pole zones |
32 (must use EOL mode 4k7/2k2 and wired expanders) |
|
Total zones |
66 |
|
Outputs on board |
3 (PGM1, STB, BELL) |
|
Two-way wireless keypads |
4 |
|
Output modules |
1 |
|
Maximum outputs |
38 |
|
Two-way wireless keyfobs |
32 |
|
Two-way wireless sirens |
2 |
|
Wired keypads |
4 (Including the Enforcer control panel) |
|
Readers and entry control |
3 |
Input expansion layout
|
Onboard |
1 - 34 |
|
ZEM 0 |
35 - 42 |
|
ZEM 1 |
43 - 50 |
|
ZEM 2 |
51 - 58 |
|
ZEM 3 |
59 - 66 |
Communications and modems
|
Modem type (included) |
Wi-Fi onboard |
|
GPRS modem (optional) |
Yes |
|
LAN modem (optional) |
Yes |
|
PSTN modem (optional) |
Yes |
|
Supports PyronixCloud & App |
Yes |
|
SMS numbers |
10 |
|
Event signalling to Insite |
Yes |
|
Formats |
Contact ID, Contact ID IP, Fast Format, Fast Format IP, SIA, SIA IP, Push notifications and SMS |
|
SIA |
Yes |
|
Contact ID |
Yes |
|
ARC compatibility |
Yes |
|
Compatible with UDL software |
Yes |
|
Voice modem / PSTN speech dialler (optional) |
Yes |
Environmental and operating features
|
Storage temperature |
-20C to +60C |
|
Certified operating temperature |
-10C to +40C |
|
Nominal operating temperature |
-10C to +50C |
|
Alarm period |
15 mins maximum |
|
Physical dimensions (W x H x D) |
220 x 160 x 50mm |
|
Weight |
1025g |
Electrical & battery
|
Battery type |
NiMH 8 cell 2200mAh rechargeable battery |
|
Battery life |
3 - 5 Years |
|
Battery capacity |
2200mAh |
|
Battery voltage |
11V (with no mains and battery fully charged) |
Certifications and warranty
|
Security Grade |
Grade 2 |
|
Environmental class |
II |
|
EN Certificate |
EN 62368-1:2014 + A11:2017 | EN 50131-1: 2006 + A1: 2009 +A2:2017 | EN 50131-3: 2009 | EN 50131-6: 2017 | EN 50131-5-3: 2017 | EN 50130-5: 2011 | EN 50130-4: 2011 + A1: 2014 | PD 6662: 2017 |
|
Certificate number |
CA12.01328 |
|
Electrical conformity |
CE |
Frequently Asked Questions
What is the Pyronix Enforcer V11 Kit 5 (UK)?
A ready-to-install wireless intruder-alarm kit built around the Enforcer V11 control panel, with onboard Wi-Fi — the largest standard bundle in the range.
What's in Kit 5?
The Enforcer V11 panel with the most wireless devices of the standard kits, for bigger homes and premises. Check the product datasheet for the exact device list.
What can the Enforcer V11 do?
Security, home automation and video integration via the HomeControl+ app.
How does it communicate?
Two-way 868MHz encrypted wireless with signal supervision; app control via HomeControl+ and Pyronix Cloud.
Can I expand it?
Yes — add more Pyronix wireless devices.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch; trade and public welcome.
