Pyronix Enforcer V11 ENF/KIT2-UK Wireless Alarm Kit 2
Pyronix Enforcer V11 Panel
The most advanced Pyronix system released to date, the Enforcer V11 delivers real added value with every installation; security, automation and video that can be tailored, controlled, scheduled and delivered for any user preferences. Expand and enhance system application capabilities further than ever before, with Wi-Fi built onboard alongside a range of new and innovative features that practically cover any installation requirements for homes or businesses. This system is all you need.
- Enforcer V11 all-in-one two-way wireless control panel
- Wi-Fi now built onboard the main PCB
- HomeControlHUB and AndroidTablet compatible
- Multiple simultaneous communication channels and flexibility
- Selectable supervision per zone
- Occupancy detector zone attribute and timers
- Digital WPS button for quick WIFI setup
- Maximum total zones 66 - 32 wireless zones expandable to 64 - 2 wired zones expandable to 34
- 3 programmable wired outputs expandable to 38
- 80 user codes, 32 wireless keyfobs with individual user ID
- Inbuilt proximity reader (set/unset with tag)
- Wide range of two-way wireless peripherals available
- Security Grade 2, Environmental Class II
- Customisable push and voice notifications
- PyronixCloud is a yearly subscription service*

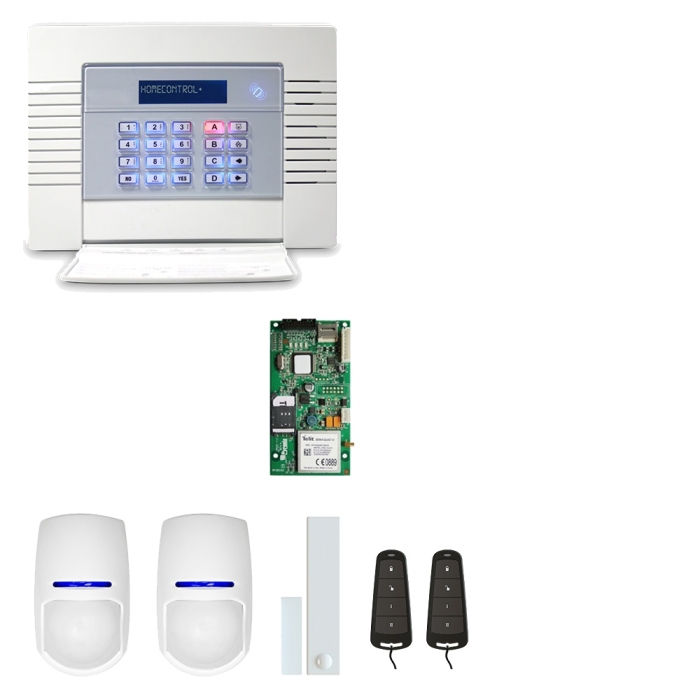

Pyronix ENF/KIT2-UK Enforcer V11 Wireless Alarm Kit 2 contains:
- 1x ENF32UK-WE Enforcer V11 all in one two-way Wireless Panel
- 1x DIGI-WIFI communicator (pre-installed)
- 2x KX10DP-WE - Wireless KX pet immune PIR detector 10m range
- 1x MC1MINI-WE - Two-way wireless mini magnetic contact
- 2x KEYFOB-WE - Two-way wireless keyfob
The outside Bellbox Base & Cover are NOT included with this but can be purchased seperately here: Bellbox BLUE or RED, Wireless Module to fit inside
For multiple Wireless accessories available for this Kit, see the accessories tab just below the price
Pyronix Enforcer V11 Features
-
Enforcer V11 all-in-one two-way wireless control panel
-
Wi-Fi now built onboard the main PCB
-
HomeControlHUB and AndroidTablet compatible
-
Multiple simultaneous communication channels and flexibility
-
Selectable supervision per zone
-
Occupancy detector zone attribute and timers
-
Digital WPS button for quick WIFI setup
-
Maximum total zones 66 - 32 wireless zones expandable to 64 - 2 wired zones expandable to 34
-
3 programmable wired outputs expandable to 38
-
80 user codes, 32 wireless keyfobs with individual user ID
-
Inbuilt proximity reader (set/unset with tag)
-
Wide range of two-way wireless peripherals available
-
Security Grade 2, Environmental Class II
-
Customisable push and voice notifications
-
PyronixCloud is a yearly subscription service*
Control Panel Technical Characteristics
|
Two-way wireless technology |
Yes |
|
Independent areas |
4 |
|
Part sets |
4 |
|
Tamper protection |
Front and rear |
|
LCD keypad with integrated proxmity reader |
Yes |
|
User codes and prox tags |
80 |
|
Guard codes |
10 |
|
Reporting formats |
WIFI / DIGI-LAN: Contact ID IP, Fast Format IP, SIA IP, Push Notifications. | DIGI-GPRS / DIGI-GPRS+SIM: Contact ID IP, SIA IP, Push Notifications and SMS (SMS not with DIGI-GPRS+SIM). | DIGI-1200 / DIGI-GSM: Contact ID, Fast Format, SIA and SMS. |
|
System logs |
750 |
Enforcer two-way wireless technology
|
Signal Strength Indicators (SSI) |
Yes |
|
Instant two way device control (ITDC) |
Yes |
|
Pyronix high security two way wireless data encryption protocol (TDE) |
Yes |
|
Pyronix intelligent jamming detection |
Yes |
|
Programmable wireless supervision time |
Yes |
|
868MHz transceiver FM technology |
Yes |
|
One push to learn |
Yes |
|
Transmission method |
Fully encrypted rolling code | (4294967295 combinations) |
|
Transmission range |
300m in open space |
Inputs & outputs
|
Zone type |
Wireless and Wired |
|
Channels |
2 |
|
Two-way wireless zones |
64 (maximum with additional wireless expander) |
|
Onboard wired zones |
2 (wired to I/O board) |
|
Wired EOL zones |
34 (maximum with additional wired expanders) |
|
Wired double pole zones |
32 (must use EOL mode 4k7/2k2 and wired expanders) |
|
Total zones |
66 |
|
Outputs on board |
3 (PGM1, STB, BELL) |
|
Two-way wireless keypads |
4 |
|
Output modules |
1 |
|
Maximum outputs |
38 |
|
Two-way wireless keyfobs |
32 |
|
Two-way wireless sirens |
2 |
|
Wired keypads |
4 (Including the Enforcer control panel) |
|
Readers and entry control |
3 |
Input expansion layout
|
Onboard |
1 - 34 |
|
ZEM 0 |
35 - 42 |
|
ZEM 1 |
43 - 50 |
|
ZEM 2 |
51 - 58 |
|
ZEM 3 |
59 - 66 |
Communications and modems
|
Modem type (included) |
Wi-Fi onboard |
|
GPRS modem (optional) |
Yes |
|
LAN modem (optional) |
Yes |
|
PSTN modem (optional) |
Yes |
|
Supports PyronixCloud & App |
Yes |
|
SMS numbers |
10 |
|
Event signalling to Insite |
Yes |
|
Formats |
Contact ID, Contact ID IP, Fast Format, Fast Format IP, SIA, SIA IP, Push notifications and SMS |
|
SIA |
Yes |
|
Contact ID |
Yes |
|
ARC compatibility |
Yes |
|
Compatible with UDL software |
Yes |
|
Voice modem / PSTN speech dialler (optional) |
Yes |
Environmental and operating features
|
Storage temperature |
-20C to +60C |
|
Certified operating temperature |
-10C to +40C |
|
Nominal operating temperature |
-10C to +50C |
|
Alarm period |
15 mins maximum |
|
Physical dimensions (W x H x D) |
220 x 160 x 50mm |
|
Weight |
1025g |
Electrical & battery
|
Battery type |
NiMH 8 cell 2200mAh rechargeable battery |
|
Battery life |
3 - 5 Years |
|
Battery capacity |
2200mAh |
|
Battery voltage |
11V (with no mains and battery fully charged) |
Certifications and warranty
|
Security Grade |
Grade 2 |
|
Environmental class |
II |
|
EN Certificate |
EN 62368-1:2014 + A11:2017 | EN 50131-1: 2006 + A1: 2009 +A2:2017 | EN 50131-3: 2009 | EN 50131-6: 2017 | EN 50131-5-3: 2017 | EN 50130-5: 2011 | EN 50130-4: 2011 + A1: 2014 | PD 6662: 2017 |
|
Certificate number |
CA12.01328 |
|
Electrical conformity |
CE |
Frequently Asked Questions
What is the Pyronix Enforcer V11 Kit 2 (UK)?
A ready-to-install wireless intruder-alarm kit built around the Enforcer V11 control panel, with onboard Wi-Fi.
How does Kit 2 differ from Kit 1?
It includes a larger set of wireless devices than Kit 1 — more detectors for greater coverage. Check the product datasheet for the exact device list.
What can the Enforcer V11 do?
Security, home automation and video integration via the HomeControl+ app.
How does it communicate?
Two-way 868MHz encrypted wireless with signal supervision; app control via HomeControl+ and Pyronix Cloud.
Can I expand it?
Yes — add more Pyronix wireless devices.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch; trade and public welcome.
