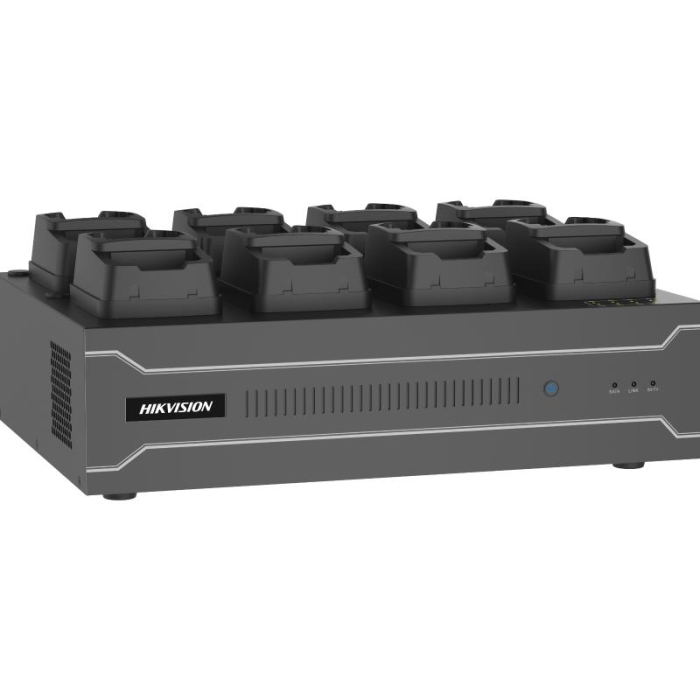

Hikvision DS-MDS001/2T/8(B) 8-Port Docking Station for MCW407 Body Worn Cameras
Non-Stock Special Order: Call for lead time
SKU
DS-MDS001/2T/8(B)(MCW407)
MPN: 303202324EAN: 6936422138875UPC: DS-MDS001/2T/8(B)(O-STD)(MCW407)
Hikvision DS-MDS001/2T(MCW407) Body Worn Camera 8-Port Docking Station
Compatible with:
DS-MCW407(D) Body Camera
DS-MCW407(C) Body Camera
DS-MCW40B Body Camera
-
- 1000 M dual network interface
- Collects data from multiple body cameras.
- Charges, uploads data, and cleans the storage space automatically.
- Prevents data loss via ANR (Automatic Network Replenishment).
- Cyclic covering: Files will be covered automatically according to the storage timeline when there is no enough space.
- Reads time, date, product No., etc. of the body camera automatically.
- Plays videos, audios, and images.
- Log management
Optional Upgrades :
Hard Drive Storage to Max 4x 8TB for storage of footage (1x2TB is included)
HikCentral Licenses required ONLY IF Liveview & Playback is required on HikCentral Software :
1x HikCentral-P-VSS/Base License (new customer)
xx HikCentral-P-BWC-1Ch for each Body Worn Camera
MPN: 303202324EAN: 6936422138875UPC: DS-MDS001/2T/8(B)(O-STD)(MCW407)
- Storage
- RAM2 GB
- HDDUp to 4 disk(s) (Max. 8 TB for each disk) and default 2 TB
- Network
- ProtocolHTTPS, FTP, NTP, SADP, ISAPI
- Interface
- IndicatorPower indicator,Hard disk indicator,Network indicator,8 indicator(s) for charging/working/recording/exception
- ButtonPower
- General Interface1 × USB 3.0
- Body Camera Access NumberUp to 8 body camera(s)
- Base Paramaters5 VDC, 1.5 A for each channel, rate ≥ 8 MB/s
- General
- ClientHikCentral Pro,HikCentral Master
- Speaker1 build-in speaker
- Web Browser
Plug-in required live view: IE 10+,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Operating SystemLinux
- Power100 to 240 VAC, max. 250 W
- Operating Condition-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)
- Dimensions400 mm × 300 mm × 124 mm (15.75" × 11.81" × 4.88")
- Weight7.1 kg (15.65 lb.)
- Installation MethodDesk-mounted
- Approval
- EMCCE-EMC: EN 55032: 2015,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014,EN 61000-3-2: 2014
- SafetyCE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11
