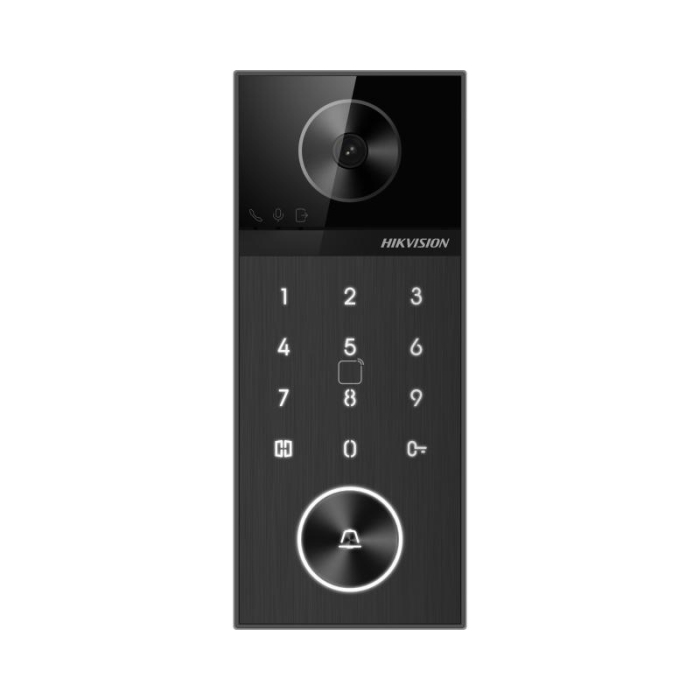

Hikvision DS-KV6124-WBE1 4MP 150° Door Station with Keypad, WiFi 6, PoE/12v DC, 2xDoor Lock, Card Reader
The Hikvision DS-KV6124-WBE1 is a 4 MP IP Villa Door Station with Keypad — 4 MP IP villa door station with built-in keypad, WiFi 6, Mifare and dual lock outputs — one-piece answer for residential and small commercial installs.
Stand-alone IP villa door station for residential and small commercial installs. 4 MP 150° wide-angle camera with 5 m IR illumination, WiFi 6 + RJ-45 PoE 802.3af for wired or wireless install, built-in PIN keypad for code-based access, Mifare card reader for keyless entry, two independent relay lock outputs for dual-gate control, and an IP65 / IK08 outdoor-rated housing. Pair with a Hikvision DS-KH series indoor station or the Hik-Connect mobile app for residents.
Key Features
- 4 MP 150° wide-angle camera with 5 m IR for after-dark visitors
- WiFi 6 + RJ-45 PoE 802.3af — wired or wireless mount-and-go install
- Built-in PIN keypad for code-based access
- Mifare card reader
- Two relay lock outputs — control pedestrian gate + vehicle gate from one station
- IP65 outdoor-rated housing
- Hik-Connect mobile app — remote answer + live view
Identification: SKU DS-KV6124-WBE1 · MPN 305305958 · EAN/GTIN-13 6936422176259 · Brand Hikvision
The Hikvision DS-KV6124-WBE1 is a fully-featured IP villa door station with built-in PIN keypad, WiFi 6 wireless, Mifare card reader and dual relay lock outputs — a single-piece answer for residential and small commercial entrances that need keypad, card and remote-answer credentials all on the same station, plus the option to control two doors or gates from one panel.
Target customers: residential and small-commercial installers wanting a single-station solution that covers keypad PIN entry, card-credential tap-to-unlock and dual-gate control all in one device — particularly relevant on properties with both pedestrian and vehicle gate access, or where the same station needs to handle both family and tradesperson access methods.
Compatibility: pairs with any Hikvision DS-KH series indoor station (DS-KH6320, DS-KH8350, DS-KH8520 series) and the Hik-Connect mobile app for off-site answer and live view. Mifare credentials are issued from the Hikvision iVMS-4200 PC client or the indoor station itself. Compatible Hik-Connect access also enables QR-code visitor passes and remote unlock via the resident’s phone.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KV6124-WBE1 ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KV6124-WBE1
Technical specification taken from the official Hikvision DS-KV6124-WBE1 datasheet and Netview CCTV trade documentation.
| Camera & Image | |
|---|---|
| Resolution | 4 MP |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Frame Rate | Up to 30 fps (H.264 stream) |
| Minimum Illumination | 0.1 lux @ F2.0 (Colour); 0 lux with IR |
| WDR | Digital WDR |
| IR Range | 5 m supplementary IR |
| Day & Night | IR-cut filter with auto-switch |
| Lens & Optical | |
| Lens | 150° wide-angle |
| Lens Type | Fixed |
| Aperture | F2.0 (typical) |
| Field of View | 150° wide-angle |
| IR Cut Filter | Yes — auto-switch |
| Network & Audio | |
| Network | RJ-45 PoE 802.3af + WiFi 6 |
| Wireless | WiFi 6 (802.11ax, 2.4 / 5 GHz) |
| Audio | Full-duplex two-way audio with echo cancellation |
| Audio Compression | G.711U |
| Microphone | Built-in omnidirectional |
| Speaker | Built-in 1 W |
| Video Compression | H.264 / H.264+ (Main / Baseline) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, SIP |
| Access Control | |
| Card Reader | Mifare 13.56 MHz contactless |
| Credentials per Station | Up to 1,000 (typical) |
| Keypad | Built-in PIN keypad |
| PIN Length | 4 to 8 digits (configurable) |
| Facial Recognition | Not fitted (refer to DS-KD9613 series for face-recognition variants) |
| QR Reader | Hik-Connect generated QR codes — resident-issued visitor pass |
| Tamper Detection | Built-in tamper-resistant housing |
| Wiegand & Alarm I/O | |
| Lock Outputs | 2 × relay — pedestrian + vehicle gate (independent control) |
| Door Sensor Input | 1 × opto-isolated (NO / NC) |
| Exit Button Input | 1 × opto-isolated |
| Wiegand | Wiegand 26/34 output (for integration with third-party access control) |
| Alarm Input | 1 × opto-isolated (programmable) |
| RS-485 | 1 × (for external card reader / I/O expansion) |
| Environmental | |
| IP Rating | IP65 |
| Vandal Rating | IK08 |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KV6124-WBE1 |
| MPN / Part Number | 305305958 |
| EAN / GTIN-13 | 6936422176259 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
