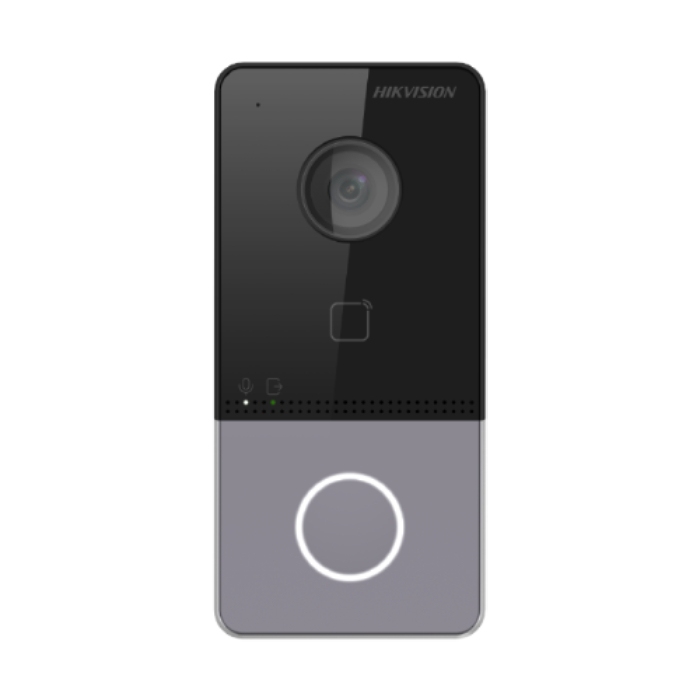

Hikvision DS-KV6113-WPE1(C) 2MP Video Intercom Door Station
The Hikvision DS-KV6113-WPE1(C) is a 2 MP IP Villa Door Station — 2 MP, 180° fisheye camera, built-in WiFi, PoE 802.3af, Mifare card reader.
Stand-alone IP villa door station for residential and small commercial installs. 2 MP 180° fisheye camera with 3 m IR illumination, built-in 2.4 GHz WiFi + RJ-45 PoE for wired or wireless install, Mifare card reader for keyless entry, and an IP65 / IK08 outdoor-rated housing. Pair with a Hikvision DS-KH series indoor station or the Hik-Connect mobile app for residents.
Key Features
- 2 MP 180° fisheye camera with 3 m IR for after-dark visitors
- Built-in WiFi + RJ-45 PoE 802.3af
- Mifare card reader
- IP65 outdoor-rated housing
- Hik-Connect mobile app — remote answer + live view
Identification: SKU DS-KV6113-WPE1(C) · MPN 305303443 · EAN/GTIN-13 6931847170455 · Brand Hikvision
The Hikvision DS-KV6113-WPE1(C) is an IP villa door station with built-in 2.4 GHz WiFi — a stand-alone outdoor station for single-residence and small commercial installations. 2 MP 180° fisheye camera, 3 m IR illumination and a relay lock output make it a one-piece front-door / front-gate intercom.
Target customers: residential and small-commercial installers fitting single-residence or small multi-unit IP intercoms. The built-in WiFi means it fits installs where running CAT-5e to the entrance gate would mean breaking into existing paving or rendering. Suitable for new-build, retrofit, gated drives and front-door applications where the installation needs to look tidy and respond reliably from the Hik-Connect mobile app.
Compatibility: pairs with any Hikvision DS-KH series indoor station (DS-KH6320, DS-KH8350, DS-KH8520 series) and the Hik-Connect mobile app for off-site answer and live view. Mifare credentials are issued from the Hikvision iVMS-4200 PC client or the indoor station itself. Compatible Hik-Connect access also enables QR-code visitor passes and remote unlock via the resident’s phone.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KV6113-WPE1(C) ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KV6113-WPE1(C)
Technical specification taken from the official Hikvision DS-KV6113-WPE1(C) datasheet and Netview CCTV trade documentation.
| Camera & Image | |
|---|---|
| Resolution | 2 MP |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Frame Rate | Up to 30 fps (H.264 stream) |
| Minimum Illumination | 0.1 lux @ F2.0 (Colour); 0 lux with IR |
| WDR | Digital WDR |
| IR Range | 3 m supplementary IR |
| Day & Night | IR-cut filter with auto-switch |
| Lens & Optical | |
| Lens | 180° fisheye |
| Lens Type | Fixed |
| Aperture | F2.0 (typical) |
| Field of View | 180° fisheye |
| IR Cut Filter | Yes — auto-switch |
| Network & Audio | |
| Network | RJ-45 PoE 802.3af + 2.4 GHz WiFi |
| Wireless | 2.4 GHz WiFi (802.11 b/g/n) |
| Audio | Full-duplex two-way audio with echo cancellation |
| Audio Compression | G.711U |
| Microphone | Built-in omnidirectional |
| Speaker | Built-in 1 W |
| Video Compression | H.264 / H.264+ (Main / Baseline) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, SIP |
| Access Control | |
| Card Reader | Mifare 13.56 MHz contactless |
| Credentials per Station | Up to 1,000 (typical) |
| Keypad | Not fitted (add DS-KD-KP/S or DS-KD-TDM module for modular stations) |
| Facial Recognition | Not fitted (refer to DS-KD9613 series for face-recognition variants) |
| QR Reader | Hik-Connect generated QR codes — resident-issued visitor pass |
| Tamper Detection | Built-in tamper-resistant housing |
| Wiegand & Alarm I/O | |
| Lock Outputs | 1 × relay (Form C, 12 VDC / 30 VAC, 2 A max) |
| Door Sensor Input | 1 × opto-isolated (NO / NC) |
| Exit Button Input | 1 × opto-isolated |
| Wiegand | Wiegand 26/34 output (for integration with third-party access control) |
| Alarm Input | 1 × opto-isolated (programmable) |
| RS-485 | 1 × (for external card reader / I/O expansion) |
| Environmental | |
| IP Rating | IP65 |
| Vandal Rating | IK08 |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KV6113-WPE1(C) |
| MPN / Part Number | 305303443 |
| EAN / GTIN-13 | 6931847170455 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
Documentation — Hikvision DS-KV6113-WPE1(C) 2 MP IP Villa Door Station
Download the official Hikvision datasheet for the DS-KV6113-WPE1(C), plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-KV6113-WPE1(C) Product Datasheet | DS-KV6113-WPE1(C) Datasheet (PDF) | |
| Browse all Villa Door Stations | Web | View Villa Door Stations |
| Browse all Video Intercom | Web | View all Video Intercom |
| Browse all CCTV Cameras | Web | View all CCTV Cameras |
| Contact Netview CCTV — trade pricing & support | Web | Contact Netview CCTV — 0116 3800 838 |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the DS-KV6113-WPE1(C), contact our trade team on 0116 3800 838 or [email protected].
