Hikvision DS-KIS613-S IP Video Intercom Kit — Metal Villa Door Station Bundle (4MP, 7" Indoor + PoE Switch)

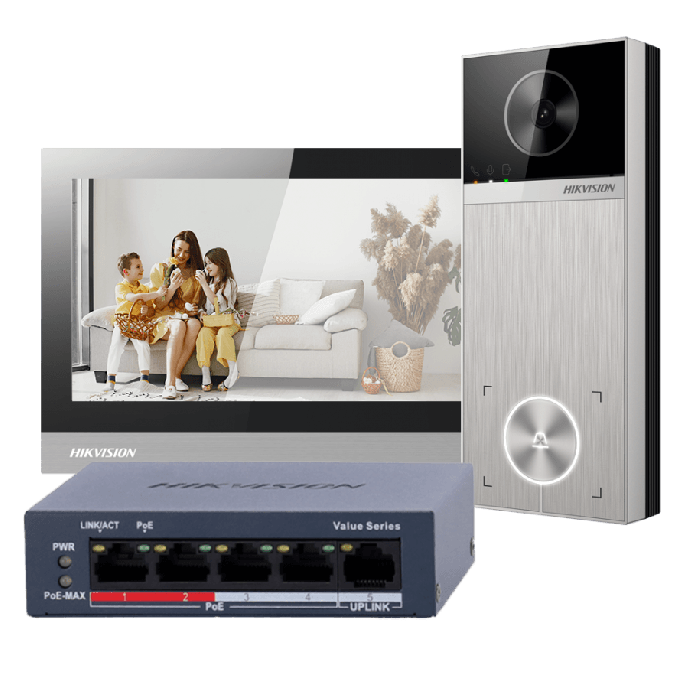

The Hikvision DS-KIS613-S is a 4 MP IP Video Intercom Kit — complete plug-and-play kit — DS-KV6114-MWBE1 Metal Villa Door Station + Rain Shield + DS-KH8380-WTE1 7" Indoor Station + 4-Port PoE Switch + 32 GB Card + PSU in one box.
Premium IP video intercom bundle built around the metal DS-KV6114-MWBE1 villa door station. Bundle contents: DS-KV6114-MWBE1 Metal Villa Door Station + Rain Shield + DS-KH8380-WTE1 7" Indoor Station + 4-Port PoE Switch + 32 GB Card + PSU. 4 MP camera with WiFi 6, Mifare card reader, dual lock outputs and the included rain shield make this the most fully-featured single-box residential intercom kit Hikvision ships. Indoor station, 4-port PoE switch, 32 GB card and PSU are all in the box — powers up and registers in minutes.
Key Features
- Complete plug-and-play kit — no spec-and-pair guesswork
- Bundle includes: DS-KV6114-MWBE1 Metal Villa Door Station + Rain Shield + DS-KH8380-WTE1 7" Indoor Station + 4-Port PoE Switch + 32 GB Card + PSU
- 4 MP door station camera
- WiFi 6 + RJ-45 PoE on door station
- Metal door station body with rain shield
- Two relay lock outputs on the door station
- Pre-paired — powers up and registers in minutes
- Hik-Connect app for off-site answer and live view
- Same-day UK dispatch from Netview CCTV Leicester
Identification: SKU DS-KIS613-S · MPN 305306177 · EAN/GTIN-13 6936422178581 · Brand Hikvision
The Hikvision DS-KIS613-S is a premium IP video intercom bundle built around the metal-bodied DS-KV6114-MWBE1 villa door station — specifically: DS-KV6114-MWBE1 Metal Villa Door Station + Rain Shield + DS-KH8380-WTE1 7" Indoor Station + 4-Port PoE Switch + 32 GB Card + PSU. It’s the most feature-complete single-box residential intercom kit Hikvision currently ships, combining a vandal-resistant metal front plate, WiFi 6, dual lock outputs and a 7-inch indoor station with all the PoE switching and storage needed to bring the system online out of the box.
Target customers: installers and trade buyers who want a one-SKU answer for a residential or small-commercial intercom install. Pre-pairing in the box removes the spec-and-source overhead of selecting compatible door station, indoor station, PoE switch and accessories separately — particularly valuable for installers running high volumes of single-residence installs.
Compatibility: all kit components are pre-paired and pre-configured to work together out of the box. The included PoE switch supports adding extra Hikvision DS-KH indoor stations; pair with the Hik-Connect mobile app for off-site answering. Compatible with the wider Hikvision intercom ecosystem for future expansion.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KIS613-S ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KIS613-S
Technical specification taken from the official Hikvision DS-KIS613-S datasheet and Netview CCTV trade documentation.
| Camera & Image | |
|---|---|
| Door Station Resolution | 4 MP |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Frame Rate | Up to 30 fps |
| WDR | Digital WDR |
| Day & Night | IR-cut filter with auto-switch |
| Lens & Optical | |
| Lens | 180° fisheye |
| Lens Type | Fixed |
| Aperture | F2.0 (typical) |
| Field of View | 180° horizontal |
| IR Cut Filter | Yes — auto-switch |
| Network & Audio | |
| Network | RJ-45 PoE + WiFi 6 |
| Wireless | WiFi 6 (802.11ax, 2.4 / 5 GHz) |
| Audio | Full-duplex two-way audio with echo cancellation |
| Audio Compression | G.711U |
| Microphone | Built-in omnidirectional |
| Speaker | Built-in 1 W |
| Video Compression | H.264 / H.264+ (Main / Baseline) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, SIP |
| Access Control | |
| Card Reader | Mifare 13.56 MHz contactless |
| Credentials per Station | Up to 1,000 (typical) |
| Facial Recognition | Not fitted (refer to DS-KD9613 series for face-recognition variants) |
| QR Reader | Hik-Connect generated QR codes — resident-issued visitor pass |
| Tamper Detection | Built-in tamper-resistant housing |
| Wiegand & Alarm I/O | |
| Lock Outputs | 2 × relay — pedestrian + vehicle gate (independent control) |
| Door Sensor Input | 1 × opto-isolated (NO / NC) |
| Exit Button Input | 1 × opto-isolated |
| Wiegand | Wiegand 26/34 output (for integration with third-party access control) |
| Alarm Input | 1 × opto-isolated (programmable) |
| RS-485 | 1 × (for external card reader / I/O expansion) |
| Environmental | |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KIS613-S |
| MPN / Part Number | 305306177 |
| EAN / GTIN-13 | 6936422178581 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
Documentation — Hikvision DS-KIS613-S 4 MP IP Video Intercom Kit
Download the official Hikvision datasheet for the DS-KIS613-S, plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-KIS613-S Product Datasheet | DS-KIS613-S Datasheet (PDF) | |
| Browse all IP Video Intercom Kits | Web | View IP Video Intercom Kits |
| Browse all Video Intercom | Web | View all Video Intercom |
| Browse all CCTV Cameras | Web | View all CCTV Cameras |
| Contact Netview CCTV — trade pricing & support | Web | Contact Netview CCTV — 0116 3800 838 |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the DS-KIS613-S, contact our trade team on 0116 3800 838 or [email protected].
