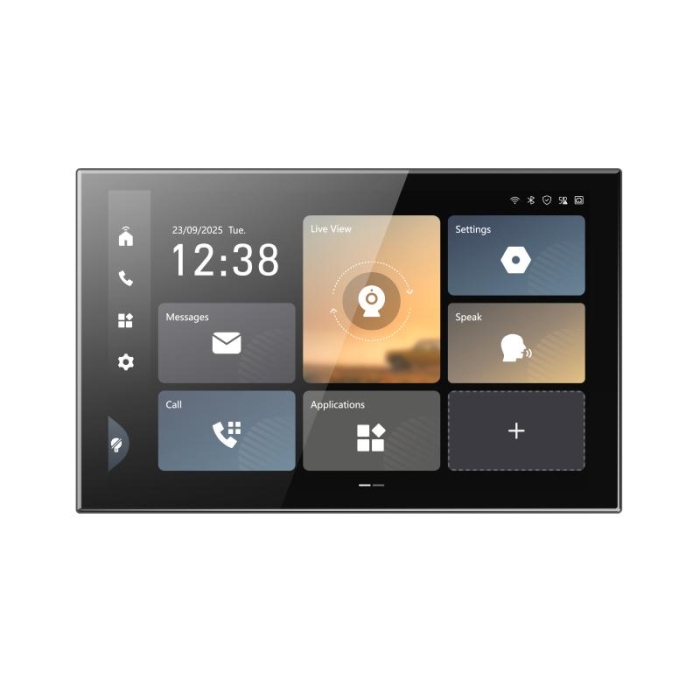

Hikvision DS-KH9570-WTE1/F Flush-Mount Indoor Station Android 14, 10-inch IPS Touch Screen, 4GB Ram, 8GB Rom
The Hikvision DS-KH9570-WTE1/F is the flush-mount version of the 10.1-inch Android 14 indoor station in Hikvision’s TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide 9 Series. It sits only 11.82 mm proud of the wall for a clean, built-in finish, with the same 1920 × 1200 IPS touch screen, 4 GB RAM / 8 GB ROM, Wi-Fi 6 and dual microphones and speakers as the surface-mount DS-KH9570-WTE1/S.
Answer and open TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide door stations, watch up to 16 IP cameras and manage alarms from one screen, powered by standard PoE (IEEE 802.3at) or 12 VDC.
Key Features
- Flush mounting — only 11.82 mm out of the wall (44.92 mm total depth)
- 10.1-inch 1920 × 1200 colour IPS capacitive touch screen
- Android 14, 4-core processor, 4 GB RAM and 8 GB ROM
- 2 microphones and 2 loudspeakers (max. 80 dB at 50 cm) with noise suppression and echo cancellation
- Wi-Fi 6 (2.4 GHz + 5 GHz), BLE 5.0 and 10/100 Mbps Ethernet
- Links up to 17 door stations, 16 indoor extensions and 16 network cameras
- IEEE 802.3at PoE or 12 VDC 2.5 A, max. 24 W
Hikvision DS-KH9570-WTE1/F Flush-Mount Indoor Station Android 14, 10-inch IPS Touch Screen, 4GB Ram, 8GB Rom
10.1-inch Android 14 indoor station for flush mounting — 1920 × 1200 IPS, Wi-Fi 6, dual mics and speakers, 11.82 mm proud of the wall.
Overview
The Hikvision DS-KH9570-WTE1/F brings the 10.1-inch Android 14 indoor station of Hikvision’s TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide 9 Series to installations where the monitor should sit almost flat to the wall. The flush body projects just 11.82 mm from the finished wall surface (44.92 mm total depth), so it suits new builds, refurbishments and high-end interiors where a surface-mounted monitor would stand out.
Inside it matches the surface-mount DS-KH9570-WTE1/S: a 1920 × 1200 colour IPS capacitive touch screen, a 4-core processor running Android 14 with 4 GB RAM and 8 GB ROM, two omnidirectional microphones and two loudspeakers (max. 80 dB at 50 cm) with noise suppression and echo cancellation, Wi-Fi 6 on 2.4 and 5 GHz, BLE 5.0 and a 10/100 Mbps Ethernet port. It answers and unlocks up to 17 door stations, links 16 indoor extensions and shows up to 16 network cameras, with a 50 cm proximity sensor. Power comes from standard PoE (IEEE 802.3at) on a single cable, or 12 VDC 2.5 A, at no more than 24 W.
The flush version keeps the station simple: it has no RS-485 port, 12 VDC output or relay, and 2 reserved alarm inputs (the /S has 8). Netview CCTV in Leicester is an authorised Hikvision wholesale distributor — call 0116 3800 838 for trade pricing.
Key Features
- Flush mounting — only 11.82 mm out of the wall (44.92 mm total depth)
- 10.1-inch 1920 × 1200 colour IPS capacitive touch screen
- Android 14, 4-core processor, 4 GB RAM and 8 GB ROM
- 2 microphones and 2 loudspeakers (max. 80 dB at 50 cm) with noise suppression and echo cancellation
- Wi-Fi 6 (2.4 GHz + 5 GHz), BLE 5.0 and 10/100 Mbps Ethernet
- Links up to 17 door stations, 16 indoor extensions and 16 network cameras
- IEEE 802.3at PoE or 12 VDC 2.5 A, max. 24 W
DS-KH9570-WTE1/F vs DS-KH9570-WTE1/S
| DS-KH9570-WTE1/F | DS-KH9570-WTE1/S | |
|---|---|---|
| Installation | Flush mounting | Surface mounting |
| Depth | 11.82 mm out of the wall (44.92 mm total) | 23.62 mm |
| Alarm inputs | 2 (reserved) | 8 (reserved) |
| RS-485 | – | 1 (half duplex) |
| 12 VDC output | – | 12 VDC, 200 mA |
| Relay | – | 1 (reserved), max. 30 VDC 1 A |
| Weight (net) | 548 g | 545 g |
| Screen, Android 14, RAM/ROM, audio, Wi-Fi 6, capacities | Identical | |
Typical Applications
- New builds and refurbishments where the indoor station is set into the wall at first fix
- High-end homes and apartments that want a near-flush, tablet-style monitor
- Hallways and narrow spaces where a surface monitor would project too far
- TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide systems pairing a DS-KV8114 villa door station with an Android indoor station
Compatible Hikvision Devices
- Hikvision TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide IP door stations — DS-KV8114 series villa door stations (single or triple lens, nametag or keypad) and the DS-KV6114 / DS-KV6124
- Other Hikvision IP video intercom door stations and indoor extensions (up to 17 door stations and 16 indoor extensions)
- Hikvision and ONVIF IP cameras for live view on the screen (up to 16; four 1080p streams decoded at once)
- Hik-Connect app for remote answer, unlock and notifications
- Hikvision PoE switches (IEEE 802.3at) — one network cable carries power and data
Detailed Specifications — Hikvision DS-KH9570-WTE1/F
Full technical specification from the official Hikvision product page and datasheet.
| Identification | |
|---|---|
| SKU / MPN | DS-KH9570-WTE1/F |
| EAN | 6942640563757 |
| Brand | Hikvision |
| Series | TalkVu 9 Series |
| Product type | IP Indoor Station (flush mount) |
| System | |
| Operating system | Android 14 |
| ROM | 8 GB |
| RAM | 4 GB |
| Processor | Embedded high performance processor |
| Display | |
| Screen size | 10.1-inch |
| Operation method | Capacitive touch screen |
| Display type | Colour IPS |
| Resolution | 1920 × 1200 |
| Audio | |
| Audio input | 2 built-in omnidirectional microphones |
| Audio compression | G.711A, G.711U, G.722.1, G.726, Opus, AAC, AAC-LD |
| Audio output | 2 built-in loudspeakers (max. 80 dB at 50 cm) |
| Audio bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Linked door stations | 17 |
| Message capacity | 200 captured pictures, 200 alarm records, 200 unlock records, 200 tamper records |
| Linked indoor extensions | 16 |
| Linked network cameras | 16 (up to four 1080p streams decoded at the same time, H.264 / H.265) |
| Network | |
| Wi-Fi | Wi-Fi 6, 2.4 GHz & 5 GHz |
| Bluetooth | BLE 5.0 |
| Network protocols | IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP; SIP v1 (RFC2543), SIP v2 (RFC3261); DTMF: SIP Info; SADP, ISAPI, ONVIF |
| Interfaces | |
| Alarm inputs | 2 (Reserved) |
| Network interface | 1 × RJ-45 10/100 Mbps self-adaptive |
| TF card | TF card (FAT32/exFAT), up to 256 GB |
| Power supply input | 12 VDC |
| General | |
| Proximity sensor | 50 cm range, 25° horizontal, 25° vertical |
| Installation | Flush mounting |
| Weight | 548 g (1.21 lb) without package; 920 g (2.03 lb) with package (shipping weight may differ) |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (non-condensing) |
| Power supply | 12 VDC 2.5 A, or IEEE 802.3at standard PoE |
| Application environment | Indoor |
| Power consumption | ≤ 24 W |
| Interface languages | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
| Dimensions (W × H × D) | 246.58 mm × 155.76 mm × 11.82 mm (9.71" × 6.13" × 0.47") out of the wall; 44.92 mm (1.77") total depth |
Specifications are taken from Hikvision published product data and may be updated by the manufacturer.
Frequently Asked Questions
What is the Hikvision DS-KH9570-WTE1/F?
The flush-mount version of Hikvision’s 10.1-inch Android 14 IP video intercom indoor station from the TalkVu 9 Series. It sits only 11.82 mm out of the wall.
How is it different from the DS-KH9570-WTE1/S?
Mounting and connections. The /F is flush-mounted (11.82 mm out of the wall, 44.92 mm total depth); the surface-mount /S is 23.62 mm deep and adds an RS-485 port, a 12 VDC 200 mA output, a reserved relay and 8 reserved alarm inputs (the /F has 2). Screen, Android 14, memory, audio, Wi-Fi 6 and capacities are the same.
Which door stations does it work with?
Hikvision TalkVu IP door stations such as the DS-KV8114 villa door stations and the DS-KV6114 / DS-KV6124 — up to 17 door stations, plus 16 indoor extensions.
Can I see my CCTV cameras on it?
Yes — up to 16 network cameras, with up to four 1080p streams decoded at the same time (H.264 / H.265).
How is it powered?
Standard PoE (IEEE 802.3at) over one network cable, or 12 VDC 2.5 A. Power consumption is no more than 24 W.
How do I order it?
Order online at netviewcctv.co.uk or call our trade team on 0116 3800 838 for trade pricing and availability.
