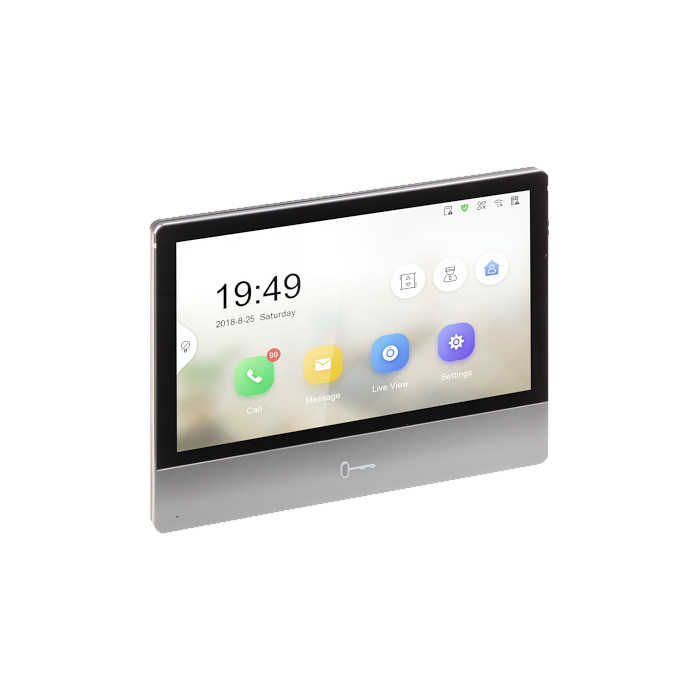

Hikvision DS-KH8350-WTE1 7“ Touch Screen with WIFI for Video Intercom

Overview

The Hikvision DS-KH8350-WTE1 is the Wi-Fi-equipped version of the award-winning DS-KH8350 platform — a Red Dot Design Award winner with an ultra-slim 8.6 mm tempered-glass and aerospace-grade aluminium chassis. The 7-inch IPS capacitive colour touchscreen at 1024 × 600 delivers a sharp wide-angle picture for door-station video, linked-camera live view and on-screen settings.

Powered over a single Cat-5e/6 cable via standard PoE (IEEE 802.3af) or locally at 12 VDC 1 A. On-board Wi-Fi 802.11 b/g/n (2.4 GHz) gives an alternative path for rooms where Cat-5e/6 isn't reachable. The unit integrates with Hikvision 2nd-generation IP door stations, master stations, network cameras and the Hik-Connect mobile app for remote answer, live view and door release. Voice message recording on no-answer, snapshot capture during call and elevator access control all built in. RS-485, 8 alarm inputs and 2 high/low-level lock-control relays (3.3 V / 0 V) round out the installer-facing I/O.

Key Features

• 7-inch IPS capacitive colour touchscreen at 1024 × 600 resolution
• Premium ultra-slim 8.6 mm design — tempered glass and aerospace-grade aluminium
• Red Dot Design Award winner — premium fit and finish for upmarket installations
• Embedded Linux operating system with high-performance processor (32 MB ROM, 128 MB RAM)
• 1 built-in omnidirectional microphone and 1 built-in loudspeaker
• G.711U / G.711A audio compression with noise suppression and echo cancellation
• On-board Wi-Fi 802.11 b/g/n (2.4 GHz) for flexible wireless installation
• Standard PoE (IEEE 802.3af) — 8 W typical, single Cat-5e/6 run; or 12 VDC 1 A
• 10/100 Mbps RJ-45 self-adaptive Ethernet — TCP/IP, SIP, RTSP
• Links 16 IP cameras, 17 IP door stations and 16 indoor extensions over the LAN
• 8 alarm inputs, 2 alarm outputs and 2 lock-control relays (3.3 V / 0 V high/low level)
• 1 RS-485 half-duplex interface for legacy peripheral integration
• TF card slot (up to 128 GB) for snapshot and alarm-record storage
• Hik-Connect Android / iOS app — remote answer, live view and door unlock from anywhere
• Surface mounting; -10 °C to +55 °C operating range; 180 × 140 × 22.4 mm chassis

Typical Applications

• Upmarket apartments and high-end residential developments where finish matters
• Commercial reception areas and executive offices integrating with Hikvision IP door stations
• Multi-room villas — Wi-Fi sibling of the -TE1 wired-only variant; choose this when adding indoor stations to rooms without Cat-5e/6
• Retrofit IP intercom upgrades to existing structured-cabling sites

Compatible Hikvision Devices

• Hikvision 2nd-generation IP door stations — DS-KD8003-IME1, DS-KD8003-IME1/Flush, DS-KD9613-FE6, DS-KV6113, DS-KV8113-WME1
• Hikvision IP indoor extensions — DS-KH6110-WE1, DS-KH6320 series, DS-KH8350 series and other KH stations
• Hikvision master stations — DS-KM8301-WT, DS-KM9503-WTE1
• Hikvision PoE switches — DS-3E0xxxP, DS-3E1xxxP series
• Hikvision IP cameras for linked live view (any RTSP/ISAPI-compatible model)
• Hik-Connect mobile app (iOS / Android) and iVMS-4200 desktop client
• DS-KAW50-1 (50 W 12 V) / DS-KAW50-1N power adapters, DS-KABH8350-T table bracket

What's in the Box

• 1 × DS-KH8350-WTE1 7-inch IP indoor station
• 1 × surface-mount bracket + screw kit
• 1 × quick start guide

Surface mounting bracket included. DS-KABH8350-T table bracket and DS-KAW50-1 power adapter sold separately.
