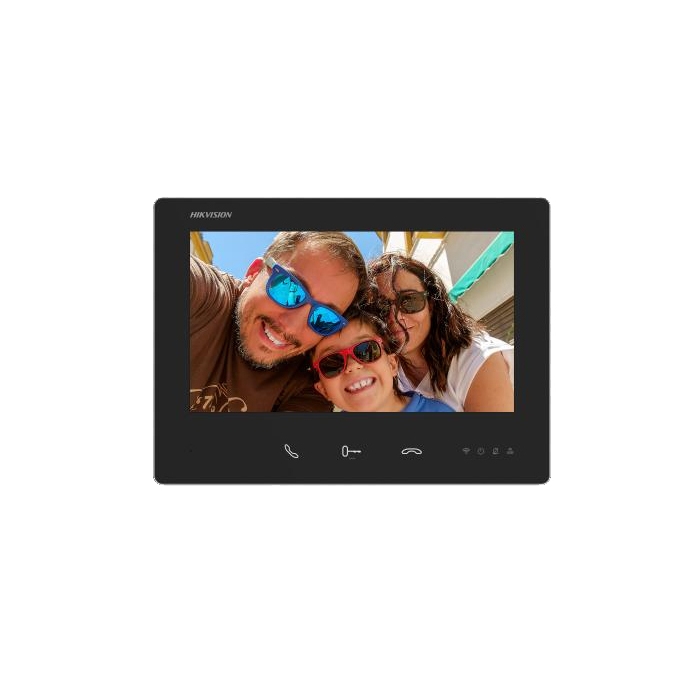

Hikvision 2~Wire HD DS-KH7300EY-WTE2/BLACK Indoor Station 7“ WiFi TouchScreen BLACK

Overview

The Hikvision DS-KH7300EY-WTE2/Black is the 2-wire HD IP video intercom indoor station from the KH7 Series, finished in a clean black profile to suit modern interiors. The 2-wire IP architecture removes the biggest barrier to upgrading legacy analogue intercom installations - the entire video, audio, data and 48 V power path runs over the same two conductors via a DS-KAD7060EY or DS-KAD7061EY 2-wire distributor, so the existing intercom riser cabling can be reused. The 7-inch capacitive colour TFT touchscreen runs at 1024 x 600 resolution and pairs three physical touch buttons (Answer, Unlock, Hang up) with four indicator LEDs (Wi-Fi, Power, Mute, In use) for physically-challenged-friendly operation. On-board Wi-Fi 802.11 b/g/n (2.4 GHz) enables full Hik-Connect mobile-app integration - remote answer, live view and door release from any iOS or Android phone. Up to 4 custom virtual buttons, professional studio / trade button function (auto-open doors), floor call, live view of linked door stations and DEC-knob setup all built in. Surface mounting at 190.2 x 138.2 x 20 mm, low-power 5 W typical (1.2 W standby).

Key Features

• 7-inch capacitive colour TFT touchscreen at 1024 x 600 resolution
• 2-wire IP indoor station - all video / audio / data / 48 V power over two conductors
• On-board Wi-Fi 802.11 b/g/n (2.4 GHz) for Hik-Connect mobile-app integration
• 3 physical touch buttons (Answer, Unlock, Hang up) + 1 physical reset button
• 4 indicator LEDs (Wi-Fi, Power, Mute, In use) for at-a-glance status
• Hik-Connect Android / iOS app: remote answer, live view, mobile unlock
• Up to 4 custom virtual buttons on-screen for quick-action commands
• Professional Studio / Trade button function - open doors automatically
• Floor Call function for multi-floor residential blocks
• View linked door-station live video; up to 3 indoor extensions linked
• TCP/IP and RTSP network protocols over the 2-wire IP path
• 5 decimal + 4 binary DIP switches for in-system addressing
• TF card slot (up to 128 GB) for picture / event capture
• Powered over the 2-wire bus by DS-KAD7060EY or DS-KAD7061EY distributor (48 V)
• Surface mounting; -10 deg C to +50 deg C operating range; 190.2 x 138.2 x 20 mm chassis

Typical Applications

• Retrofit of legacy 2-wire analogue intercom installations to full HD IP
• Multi-dwelling residential blocks where re-cabling for Cat-5e/6 is impractical
• Compact villas needing a low-power 5 W intercom monitor
• Properties wanting Hik-Connect remote-unlock and mobile answer over existing intercom risers

Compatible Hikvision Devices

• Hikvision 2-wire IP distributors - DS-KAD7060EY, DS-KAD7061EY (mandatory uplink/power)
• Hikvision 2-wire IP door stations - DS-KV7211 series, DS-KV8113-WME6 series, DS-KV9203-WME6
• Hikvision IP cameras for linked live view (any RTSP/ISAPI-compatible model, via the 2-wire IP backbone)
• Hik-Connect mobile app (iOS / Android)
• Compatible indoor-station pair: DS-KH7300EY-WTE2/White (white finish), DS-KH7300EY-TE2 (non-Wi-Fi variant)
• Designed for plug-and-play DEC-knob commissioning - no PC required for basic setup

What's in the Box

• 1 x DS-KH7300EY-WTE2/Black 7-inch 2-wire IP indoor station
• 1 x surface-mount bracket + screw kit
• 1 x quick start guide

Requires a separate Hikvision DS-KAD7060EY or DS-KAD7061EY 2-wire IP distributor (sold separately) for power and IP uplink. White finish (DS-KH7300EY-WTE2/White) and non-Wi-Fi variant (DS-KH7300EY-TE2) available.
