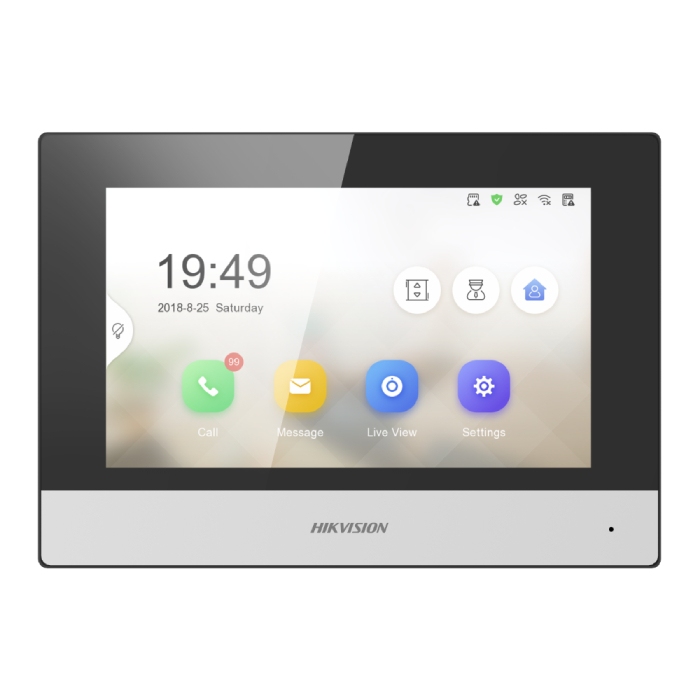

Hikvision 2~Wire IP DS-KH6320Y-WTE2 Touch Screen Indoor Station
Hikvision DS-KH6320Y-WTE2 — 2-Wire IP Video Intercom Indoor Station with Wi-Fi
Entry-level 7-inch 2-wire IP indoor station with on-board Wi-Fi and Hik-Connect - deploy a whole video intercom system from one touchscreen, no PC required. In stock at Netview CCTV, Leicester — same-day dispatch and trade pricing for installers.
The Hikvision DS-KH6320Y-WTE2 is the entry-level 2-wire IP video intercom indoor station from the KH6 Series. The 7-inch IPS touchscreen runs at 1024 x 600 resolution and pairs with on-board Wi-Fi (802.11 b/g/n) for full Hik-Connect mobile-app integration - remote answer, mobile unlock and live view from any iOS or Android phone. The whole intercom system can be commissioned from the indoor station itself via an easy on-screen wizard - no PC required - and the 8-channel alarm input plus 2 alarm-output and 2 lock-control relays make this the most flexible 2-wire entry-level station in the range.
- 7-inch IPS 1024 x 600 capacitive colour TFT touchscreen
- 2-wire IP architecture - reuses legacy intercom cabling; no PC required
- On-board Wi-Fi 802.11 b/g/n (2.4 GHz) + Hik-Connect mobile control
- 8-channel alarm input + 2 alarm-output + 2 lock-control relays
- Links 16 IP cameras + 17 doorphones + 16 indoor extensions
Hikvision DS-KH6320Y-WTE2 — 2-Wire IP Video Intercom Indoor Station with Wi-Fi
Entry-level 7-inch 2-wire IP indoor station with on-board Wi-Fi and Hik-Connect - deploy a whole video intercom system from one touchscreen, no PC required.
Overview
The Hikvision DS-KH6320Y-WTE2 is the entry-level 2-wire IP video intercom indoor station from the KH6 Series - a deliberately simple unit aimed at installers who want to deploy a complete IP intercom system over legacy 2-wire cabling without re-running Cat-5e/6 and without configuring it from a PC. The 7-inch IPS capacitive colour TFT touchscreen runs at 1024 x 600 resolution and a built-in setup wizard means the whole system can be configured from a single screen, on-site, hands-free. Connectivity covers on-board Wi-Fi 802.11 b/g/n (2.4 GHz) plus the 2-wire IP backbone via a KAD704Y or KAD706Y series distributor (handling video, audio, data and 48 V power). Network protocols include TCP/IP, SIP and RTSP. Audio codecs cover G.711U, G.711A and G.722.1 with noise suppression and echo cancellation. Links 16 IP cameras for live view in public areas, 17 IP doorphones and 16 indoor extensions. Installer-facing I/O is the most generous in the entry-level range: 8 alarm inputs, 2 alarm-output relays (30 V max.), 2 lock-control relays (max. 30 VDC, 0.3 A), 1 RS-485, and a TF-card slot up to 128 GB. Surface mounting at 200 x 140 x 23.6 mm, low-power 4 W typical, -10 deg C to +50 deg C.
Key Features
- 7-inch IPS capacitive colour TFT touchscreen at 1024 x 600 resolution
- 2-wire IP indoor station - all video / audio / data / 48 V power over two conductors
- Configure the whole system from one touchscreen - no PC required
- On-board Wi-Fi 802.11 b/g/n (2.4 GHz) for Hik-Connect mobile-app integration
- Hik-Connect Android / iOS app: receive calls, open the door, remote live view
- Voice-message recording when no one answers the indoor station
- Live view of door stations and IP cameras in public areas
- Linked alarm system - receive alarms and notify the control centre
- Elevator access control integration
- Audio compression - G.711U, G.711A, G.722.1 with noise suppression and echo cancellation
- 8-channel alarm input - the most generous in the KH6 entry-level range
- 2 alarm-output relays (30 V max.) + 2 lock-control relays (max. 30 VDC, 0.3 A)
- 1 x RS-485 interface; TF card slot up to 128 GB for events + 200 captured pictures
- 200 alarm-record + 200-notice on-board storage (2 MB RAM reserved for events without TF card)
- Surface mounting; -10 deg C to +50 deg C operating range; 200 x 140 x 23.6 mm chassis; 325 g net
Typical Applications
- Entry-level retrofit of 2-wire analogue intercom installations - upgrade to full HD IP without re-cabling
- Multi-dwelling residential blocks where re-cabling for Cat-5e/6 is impractical
- Properties wanting Hik-Connect remote-unlock and mobile answer over existing intercom risers
- Installs needing a flexible 8-alarm-input KH6 hub for linked alarm and elevator integration
Compatible Hikvision Devices
- Hikvision 2-wire IP distributors - KAD704Y series, KAD706Y series (mandatory uplink/power)
- Hikvision 2-wire IP door stations - DS-KV7211 series, DS-KV8113-WME6 series, DS-KV9203-WME6
- Hikvision IP cameras for linked live view (any RTSP/ISAPI-compatible model, via the 2-wire IP backbone)
- Hik-Connect mobile app (iOS / Android)
- KH6 Series indoor extensions (links up to 16 extensions)
- Optional accessory kits - DS-KIS702Y, DS-KIS7022Y-G/S, DS-KIS7023Y-G/S, DS-KABH6320-T bracket
- Designed for hands-free wizard setup - no PC required for basic commissioning
What's in the Box
- 1 x DS-KH6320Y-WTE2 7-inch 2-wire IP indoor station
- 1 x surface-mount bracket + screw kit
- 1 x quick start guide
Requires a separate Hikvision KAD704Y or KAD706Y series 2-wire IP distributor (sold separately) for power and IP uplink. Optional accessory kits available (DS-KIS702Y series, DS-KABH6320-T bracket).
📄 Download: Hikvision DS-KH6320Y-WTE2 official datasheet (PDF) — full technical specification and dimension drawings.
Detailed Specifications — Hikvision DS-KH6320Y-WTE2
Full technical specification for the Hikvision DS-KH6320Y-WTE2, taken from the official Hikvision datasheet.
| System | |
|---|---|
| Operating System | Embedded Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded processor |
| Display | |
| Screen Size | 7-inch IPS |
| Operation Method | Capacitive touch screen |
| Display Type | Colour TFT |
| Resolution | 1024 × 600 |
| Audio | |
| Audio Input | 1 × built-in omnidirectional microphone |
| Audio Output | 1 × built-in loudspeaker |
| Audio Compression | G.711U, G.711A, G.722.1 |
| Audio Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Linked IP Cameras | 16 |
| Linked Door Stations | 17 IP doorphones max. |
| Linked Indoor Extensions | 16 |
| Message Capacity | 200 captured pictures (with TF card); 200 alarm records |
| Notice Capacity | 200 |
| On-board RAM Reserved for Events | 2 MB (without TF card) |
| Network | |
| Network Protocols | TCP/IP, SIP, RTSP |
| Wi-Fi | IEEE 802.11 b/g/n (2.4 GHz) |
| Wired Uplink | 2-wire IP via KAD704Y or KAD706Y distributor |
| Interfaces | |
| Alarm Input | 8-channel |
| Alarm Output | 2 relays (30 V max.) |
| Lock Control | 2 relays, max. 30 VDC, 0.3 A |
| RS-485 | 1 |
| TF Card | Max. 128 GB, SD 2.0 or lower |
| 2-Wire IP Interface | 1 |
| General | |
| Installation | Surface mounting |
| Power Supply | Powered by KAD704Y or KAD706Y series distributor |
| Power Consumption | ≤ 4 W |
| Working Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93") |
| Net Weight | 325 g |
| Gross Weight | 650 g |
| Application Environment | Indoor |
