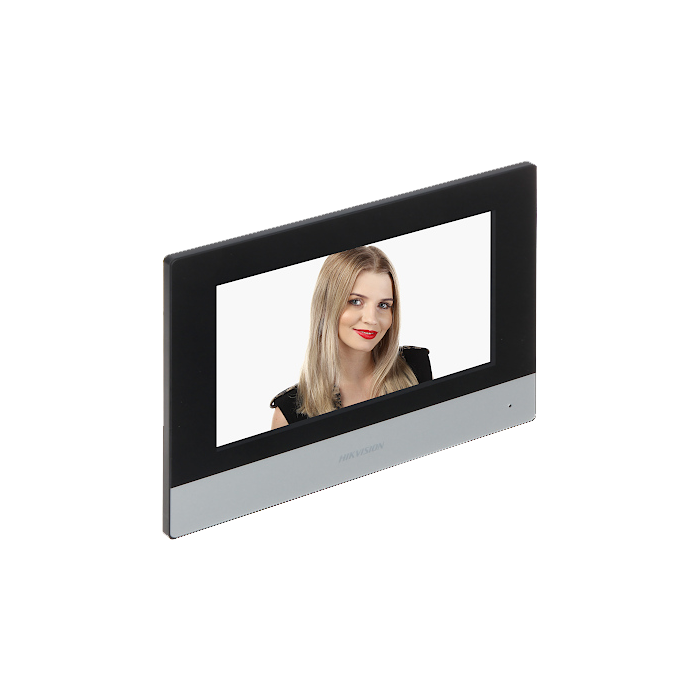

Hikvision DS-KH6320-WTE1 7“ Touch Screen with WI-FI for Video Intercom

Overview

The Hikvision DS-KH6320-WTE1 is a member of the KH6 Pro Series IP video intercom indoor station range, designed to bring fluent two-way video and audio communication to homes, offices and apartment complexes. Where traditional video intercom systems require dedicated cabling, an external server and a PC to configure, the KH6 series is built to deploy as a stand-alone system: the indoor station itself can configure the entire intercom network from its own 7-inch touchscreen, with no PC, no central management server and no specialist tools.

With the Hik-Connect app on Android or iOS you can answer the door, view live video and grant access from anywhere — turning the DS-KH6320-WTE1 into a mobile-first intercom that also keeps a hard-wired station at the door. The unit links directly to Hikvision IP door stations, network cameras, alarm systems and elevator control systems for end-to-end residential and small-commercial deployments.

Key Features

• 7-inch colour TFT capacitive touch screen with 1024 × 600 resolution
• Built-in Wi-Fi (2.4 GHz, 802.11 b/g/n) plus 10/100 Mbps Ethernet
• Standard PoE (IEEE 802.3af) — powered and networked over a single Cat-5e/6 cable
• Hik-Connect mobile app integration: remote answer, live view and unlock from Android or iOS
• Stand-alone deployment — configure the entire intercom from the indoor station's wizard, no PC required
• Live view of linked Hikvision IP door stations and network cameras in public/common areas
• Two-way audio with G.711 / G.722.1 codecs, noise suppression and echo cancellation
• Voice-message capture when the resident does not respond — visitors leave a message at the door
• 8 alarm inputs + 2 relay outputs (max. 30 VDC, 0.3 A) for integration with intrusion/alarm systems
• RS-485 half-duplex bus — integration with elevator access control for high-rise/apartment deployments
• TF card slot — supports up to 128 GB for snapshot and message storage
• Surface-mount design, slimline 200 × 140 × 15.1 mm form factor

Typical Applications

The DS-KH6320-WTE1 is a versatile indoor station that suits residential and light-commercial environments:

• Single dwellings — pair with a Hikvision IP villa door station such as the DS-KV6113-PE1(C) for a complete one-button entry system with mobile-app answer.
• Multi-tenant apartment blocks — combine with the DS-KD8003-IME1 / DS-KD8003Y-IME2 modular door stations to call individual flats over a single IP network, with elevator linkage via the on-board RS-485 bus.
• Small offices and consult rooms — use the linked-IP-camera feature to glance at the reception area, side entrance or car park before unlocking.
• Hik-Connect-managed sites — ideal where the end customer wants to answer the door from a phone rather than a wall station, while still keeping the wall station as a fallback.

Compatible Hikvision Devices

The DS-KH6320-WTE1 sits on the IP-based KH6 platform and integrates with the wider Hikvision IP video intercom ecosystem:

• IP door stations: DS-KV6113-PE1(C), DS-KV8113-WME1(B), DS-KD8003-IME1, DS-KD8003Y-IME2, DS-KD8005-IME1, DS-KD7003EY-IME2 (with the IP-to-2-wire converter)
• Indoor extensions: up to 16 additional KH6 indoor stations on the same call group
• Network cameras: up to 16 linked Hikvision IP cameras for live-view at the indoor station
• Door phones: up to 17 linked Hikvision IP door phones
• Alarm systems: AX PRO / AX HUB control panels via the 8 alarm input channels
• Recording / management: Hikvision NVRs and iVMS-4200 for centralised configuration and event handling
• Mobile: Hik-Connect app (Android & iOS) for remote answer, live view and unlock

What's in the Box

• 1 × DS-KH6320-WTE1 7-inch IP indoor station (black)
• 1 × Surface-mount wall bracket
• 1 × Mounting screw set
• 1 × Quick-start guide

An optional flush-mount bracket (DS-KABH6320-T) and IP-to-2-wire converters (DS-KAW50-1N / DS-KAW50-1) are available separately.

Full technical specification table is available in the In Depth tab below.
