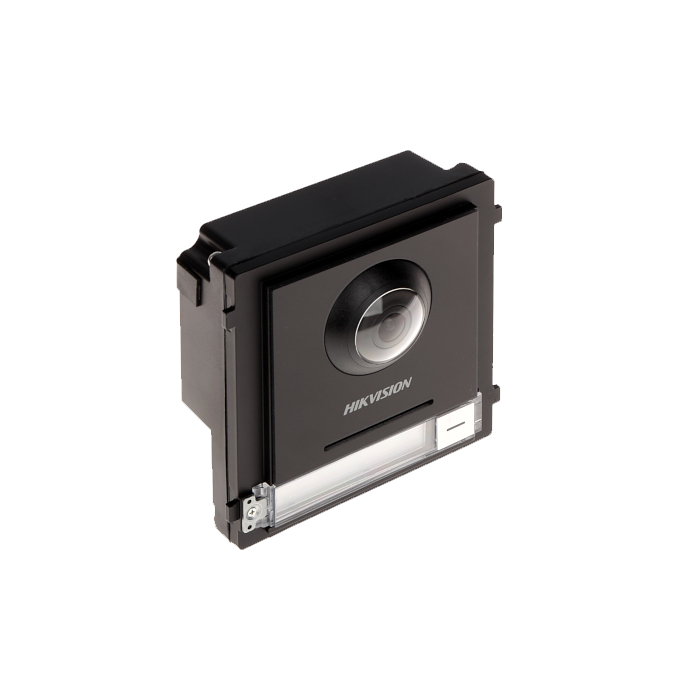

Hikvision 2~Wire IP DS-KD8003Y-IME2 Modular Video Intercom Door Station
The Hikvision DS-KD8003Y-IME2 is a 2 MP 2-Wire IP Modular Door Station — modular 2-Wire IP door station main unit with 2 MP camera, Mifare card reader and single-pair bus.
Main camera + audio module for Hikvision’s 2-Wire IP modular door station system — the modular-build flexibility of the IP range combined with single-pair 2-Wire IP bus cabling for retrofits. Stack with keypad, nametag, card reader, info or display modules in compatible DS-KD-ACF / DS-KD-ACW frames. Pair with the DS-KAD706Y distributor and DS-KAW60-2N PSU for full system functionality.
Key Features
- 2 MP 180° fisheye integrated camera module
- Stackable modular system — add keypad, nametag, card reader, info or display modules
- 3 m IR for night-time visitor identification
- Built-in Mifare card reader (13.56 MHz)
- 2-Wire IP bus network
- IP65 / IK08 outdoor-rated front plate
- Pair with DS-KH series indoor stations and DS-KD-ACF/ACW mounts
Identification: SKU DS-KD8003Y-IME2 · MPN 305303027 · EAN/GTIN-13 6931847185350 · Brand Hikvision
The Hikvision DS-KD8003Y-IME2 is the camera and audio main unit for Hikvision’s 2-Wire IP modular door station system — the same modular-build flexibility as the IP modular range, but running on a single un-polarised twisted pair via the DS-KAD706Y distributor. Designed for retrofits where CAT-5e re-pull is impractical but open IP intercom features are still required.
Target customers: installers retrofitting older buildings where CAT-5e re-pull is impractical, multi-tenant property managers upgrading legacy analogue intercoms, and commercial fit-out teams looking to simplify door and gate cabling. The 2-Wire bus drops the installation labour cost on every door — particularly relevant on terraced housing, Victorian conversions, stacked-riser apartment blocks and mixed-use buildings.
Compatibility: works with the Hikvision 2-Wire IP ecosystem — DS-KAW60-2N 24 VDC PSU, DS-KAD706Y or DS-KAD706Y-S 6-port distributor, and DS-KH series indoor stations configured for 2-Wire IP. Stack with DS-KD-DIS, DS-KD-KP/S, DS-KD-M and other modular accessories on a DS-KD-ACF or DS-KD-ACW frame to build the front panel.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KD8003Y-IME2 ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KD8003Y-IME2
Technical specification taken from the official Hikvision DS-KD8003Y-IME2 datasheet and Netview CCTV trade documentation.
| Camera & Image | |
|---|---|
| Resolution | 2 MP |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Frame Rate | Up to 30 fps (H.264 stream) |
| Minimum Illumination | 0.1 lux @ F2.0 (Colour); 0 lux with IR |
| WDR | Digital WDR |
| IR Range | 3 m supplementary IR |
| Day & Night | IR-cut filter with auto-switch |
| Lens & Optical | |
| Lens | 180° fisheye |
| Lens Type | Fixed |
| Aperture | F2.0 (typical) |
| Field of View | 180° fisheye |
| IR Cut Filter | Yes — auto-switch |
| Network & Audio | |
| Network | 2-Wire IP bus |
| Audio | Full-duplex two-way audio with echo cancellation |
| Audio Compression | G.711U |
| Microphone | Built-in omnidirectional |
| Speaker | Built-in 1 W |
| Video Compression | H.264 / H.264+ (Main / Baseline) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, SIP |
| Access Control | |
| Card Reader | Mifare 13.56 MHz contactless |
| Credentials per Station | Up to 1,000 (typical) |
| Keypad | Not fitted (add DS-KD-KP/S or DS-KD-TDM module for modular stations) |
| Facial Recognition | Not fitted (refer to DS-KD9613 series for face-recognition variants) |
| QR Reader | Hik-Connect generated QR codes — resident-issued visitor pass |
| Tamper Detection | Built-in tamper-resistant housing |
| Wiegand & Alarm I/O | |
| Lock Outputs | 1 × relay (Form C, 12 VDC / 30 VAC, 2 A max) |
| Door Sensor Input | 1 × opto-isolated (NO / NC) |
| Exit Button Input | 1 × opto-isolated |
| Wiegand | Wiegand 26/34 output (for integration with third-party access control) |
| Alarm Input | 1 × opto-isolated (programmable) |
| RS-485 | 1 × (for external card reader / I/O expansion) |
| Environmental | |
| IP Rating | IP65 |
| Vandal Rating | IK08 |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KD8003Y-IME2 |
| MPN / Part Number | 305303027 |
| EAN / GTIN-13 | 6931847185350 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
Documentation — Hikvision DS-KD8003Y-IME2 2 MP 2-Wire IP Modular Door Station
Download the official Hikvision datasheet for the DS-KD8003Y-IME2, plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-KD8003Y-IME2 Product Datasheet | DS-KD8003Y-IME2 Datasheet (PDF) | |
| Browse all 2-Wire IP Video Intercom | Web | View 2-Wire IP Video Intercom |
| Browse all Video Intercom | Web | View all Video Intercom |
| Browse all CCTV Cameras | Web | View all CCTV Cameras |
| Contact Netview CCTV — trade pricing & support | Web | Contact Netview CCTV — 0116 3800 838 |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the DS-KD8003Y-IME2, contact our trade team on 0116 3800 838 or [email protected].
