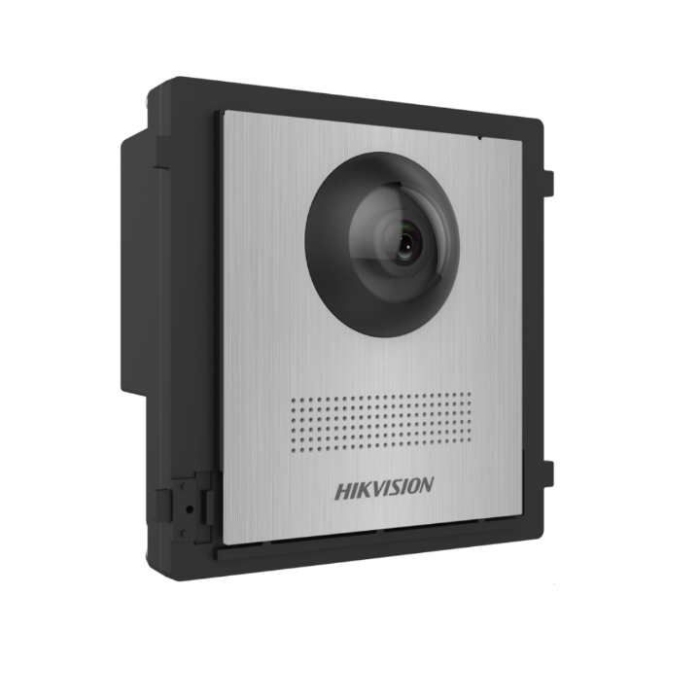

2MP Modular DS-KD8003-IME1(B)/NS IP Video Intercom Door Station S/Steel
The Hikvision DS-KD8003-IME1(B)/NS is a 2 MP IP Modular Door Station — modular IP door station main unit with 2 MP 180° fisheye camera, PoE 802.3af and Mifare card reader, ready to stack with keypad, nametag and info modules.
Main camera + audio module for Hikvision’s IP modular door station system. Stack with keypad, nametag, card reader, info or display modules in any compatible DS-KD-ACF flush mount or DS-KD-ACW surface mount frame to build a front panel that matches each installation. PoE 802.3af keeps wiring single-cable, the integrated Mifare reader supports keyless tap-to-unlock, and the IP65 / IK08 front plate suits exposed entrances.
Key Features
- 2 MP 180° fisheye integrated camera module
- Stackable modular system — add keypad, nametag, card reader, info or display modules
- 3 m IR for night-time visitor identification
- Built-in Mifare card reader (13.56 MHz)
- RJ-45 PoE 802.3af network
- IP65 / IK08 outdoor-rated front plate
- Pair with DS-KH series indoor stations and DS-KD-ACF/ACW mounts
Identification: SKU DS-KD8003-IME1(B)/NS · MPN 305303049 · EAN/GTIN-13 6931847183554 · Brand Hikvision
The Hikvision DS-KD8003-IME1(B)/NS is the camera and audio main unit for Hikvision’s IP modular door station system. The modular approach lets the installer build the front panel to match the installation — stack the main unit with keypad, nametag, card reader, info or display modules in a single DS-KD-ACF flush mount or DS-KD-ACW surface mount frame for a clean, purpose-built front panel.
Target customers: commercial and high-end residential installers who want to build a purpose-specified front panel rather than work around the fixed feature set of an all-in-one station. Modular stacks suit communal entrances, multi-tenant lobbies, gated estates and commercial reception areas where the front panel may include keypad, card reader, nametag, display and info modules together.
Compatibility: stacks with DS-KD-DIS display, DS-KD-KP/S keypad, DS-KD-KK/S nametag, DS-KD-M Mifare reader, DS-KD-INFO info module, DS-KD-IN status indicator, DS-KD-BK blank or DS-KD-CO Paxton cut-out modules. Mount on DS-KD-ACF (flush) or DS-KD-ACW (surface) frame in 1-, 2- or 3-module sizes. Pair with DS-KH series indoor stations and the Hik-Connect mobile app. PoE 802.3af power and CAT-5e network keep the install single-cable.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KD8003-IME1(B)/NS ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KD8003-IME1(B)/NS
Technical specification taken from the official Hikvision DS-KD8003-IME1(B)/NS datasheet and Netview CCTV trade documentation.
| Camera & Image | |
|---|---|
| Resolution | 2 MP |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Frame Rate | Up to 30 fps (H.264 stream) |
| Minimum Illumination | 0.1 lux @ F2.0 (Colour); 0 lux with IR |
| WDR | Digital WDR |
| IR Range | 3 m supplementary IR |
| Day & Night | IR-cut filter with auto-switch |
| Lens & Optical | |
| Lens | 180° fisheye |
| Lens Type | Fixed |
| Aperture | F2.0 (typical) |
| Field of View | 180° fisheye |
| IR Cut Filter | Yes — auto-switch |
| Network & Audio | |
| Network | RJ-45 PoE 802.3af |
| Audio | Full-duplex two-way audio with echo cancellation |
| Audio Compression | G.711U |
| Microphone | Built-in omnidirectional |
| Speaker | Built-in 1 W |
| Video Compression | H.264 / H.264+ (Main / Baseline) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, SIP |
| Access Control | |
| Card Reader | Mifare 13.56 MHz contactless |
| Credentials per Station | Up to 1,000 (typical) |
| Keypad | Not fitted (add DS-KD-KP/S or DS-KD-TDM module for modular stations) |
| Facial Recognition | Not fitted (refer to DS-KD9613 series for face-recognition variants) |
| QR Reader | Hik-Connect generated QR codes — resident-issued visitor pass |
| Tamper Detection | Built-in tamper-resistant housing |
| Wiegand & Alarm I/O | |
| Lock Outputs | 1 × relay (Form C, 12 VDC / 30 VAC, 2 A max) |
| Door Sensor Input | 1 × opto-isolated (NO / NC) |
| Exit Button Input | 1 × opto-isolated |
| Wiegand | Wiegand 26/34 output (for integration with third-party access control) |
| Alarm Input | 1 × opto-isolated (programmable) |
| RS-485 | 1 × (for external card reader / I/O expansion) |
| Environmental | |
| IP Rating | IP65 |
| Vandal Rating | IK08 |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KD8003-IME1(B)/NS |
| MPN / Part Number | 305303049 |
| EAN / GTIN-13 | 6931847183554 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
