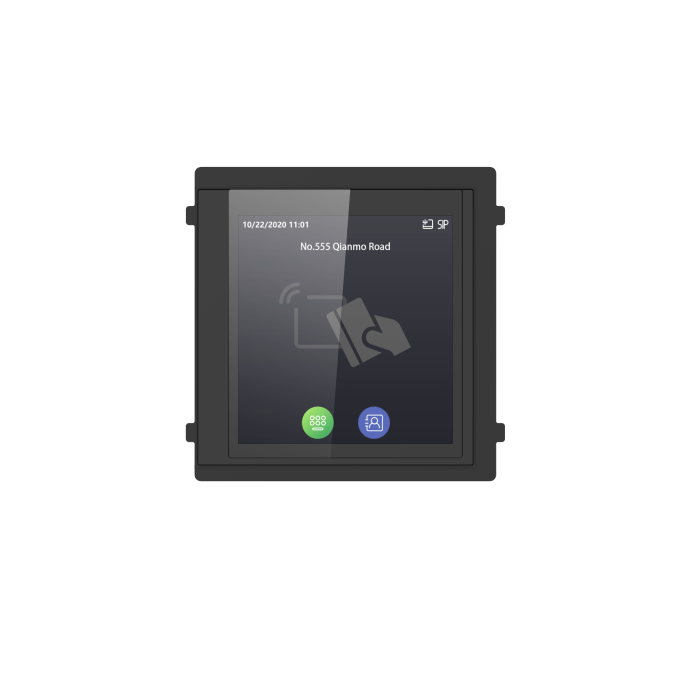

Hikvision DS-KD-TDM Modular 3-in-1 Touch & Display Module for Video Intercom
The Hikvision DS-KD-TDM is a Modular Touchscreen + Display + Keypad Module — touchscreen + display + keypad module for stacking with Hikvision modular IP / 2-Wire IP door stations.
Plug-in keypad module for Hikvision’s modular door station system. Provides PIN-based access control alongside the main DS-KD8003 / DS-KD8005 camera/audio module. Stainless-steel front plate matches surrounding modules. Mounts in any compatible DS-KD-ACF flush or DS-KD-ACW surface frame slot.
Key Features
- Touchscreen + Display + Keypad module for Hikvision modular system
- Compatible with DS-KD8003-IME1, DS-KD8005-IME1, DS-KD8003Y-IME2 main door stations
- Capacitive touch display for visitor name-list / apartment lookup
- Keypad input for PIN-based access control
- Mounts in any compatible DS-KD-ACF / DS-KD-ACW frame slot
- Connector ribbon supplied for snap-in fitment
Identification: SKU DS-KD-TDM · MPN 305302659 · EAN/GTIN-13 6931847168988 · Brand Hikvision
The Hikvision DS-KD-TDM is a touchscreen + display + keypad module for Hikvision’s modular door station system. It stacks alongside the main DS-KD8003-IME1 / DS-KD8005-IME1 / DS-KD8003Y-IME2 camera and audio module on a compatible DS-KD-ACF flush mount or DS-KD-ACW surface mount frame — lets the installer build the front panel to match the install.
Target customers: installers building Hikvision modular door stations for commercial reception areas, multi-tenant residential entrances or high-end villa intercoms. Modules clip into the same DS-KD-ACF flush or DS-KD-ACW surface mount frame as the main camera/audio module, letting the installer add only the credentials and information interfaces the install actually needs.
Compatibility: mounts in any compatible DS-KD-ACF flush mount or DS-KD-ACW surface mount frame (1-module, 2-module or 3-module variants). Stacks with the main DS-KD8003-IME1 / DS-KD8005-IME1 / DS-KD8003Y-IME2 camera and audio module plus any other Hikvision modular module — DS-KD-DIS display, DS-KD-KP/S keypad, DS-KD-KK/S nametag, DS-KD-M card reader, DS-KD-INFO info module and DS-KD-BK blank.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KD-TDM ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KD-TDM
Technical specification taken from the official Hikvision DS-KD-TDM datasheet and Netview CCTV trade documentation.
| Module Type | |
|---|---|
| Module Type | Touchscreen + Display + Keypad |
| Form Factor | Single-slot plug-in module |
| Function | PIN-entry keypad (mechanical) |
| Compatibility | |
| Compatible Main Units | DS-KD8003-IME1(B)/NS, DS-KD8003-IME1(B)/S, DS-KD8005-IME1/S, DS-KD8003Y-IME2, DS-KD8003Y-IME2/NS, DS-KD8003Y-IME2/S |
| Compatible Mounts | DS-KD-ACF1, DS-KD-ACF1/S, DS-KD-ACF2/S, DS-KD-ACF3, DS-KD-ACF3/S (flush) / DS-KD-ACW1/S, DS-KD-ACW2/S, DS-KD-ACW3/S (surface) |
| Stack-able With | Any other Hikvision modular module — mix-and-match per install |
| Material & Finish | |
| Material | Aluminium / Hikvision-finished polycarbonate front plate |
| Finish | Matt-finish front plate matches standard Hikvision modules |
| Front Plate Thickness | Approx. 1.5 mm (anti-tamper) |
| Mounting | |
| Mounting | Plug-in — clips into compatible DS-KD-ACF / DS-KD-ACW frame slot |
| Connector | Ribbon connector to neighbouring module / main unit |
| Fixings | Front-load screw fixings (Hikvision proprietary) |
| Authentication | |
| Keypad Type | Mechanical PIN keypad (0–9 + #/*) |
| PIN Length | 4 to 8 digits (configurable) |
| Backlight | Yes — LED backlight for after-dark use |
| Environmental | |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KD-TDM |
| MPN / Part Number | 305302659 |
| EAN / GTIN-13 | 6931847168988 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
Documentation — Hikvision DS-KD-TDM Modular Touchscreen + Display + Keypad Module
Download the official Hikvision datasheet for the DS-KD-TDM, plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-KD-TDM Product Datasheet | DS-KD-TDM Datasheet (PDF) | |
| Browse all Modular Door Station Modules | Web | View Modular Door Station Modules |
| Browse all Video Intercom | Web | View all Video Intercom |
| Browse all CCTV Cameras | Web | View all CCTV Cameras |
| Contact Netview CCTV — trade pricing & support | Web | Contact Netview CCTV — 0116 3800 838 |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the DS-KD-TDM, contact our trade team on 0116 3800 838 or [email protected].
