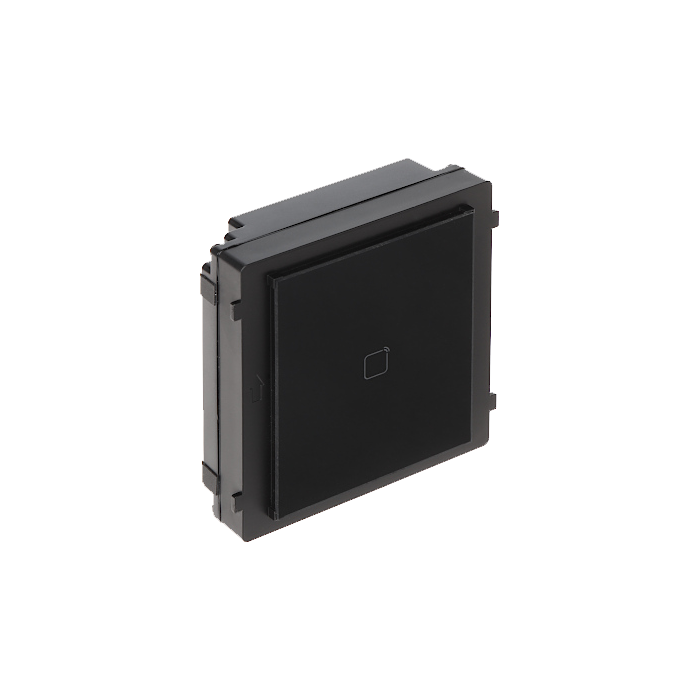

Hikvision DS-KD-M Modular Card Reader Module for Video Intercom
The Hikvision DS-KD-M is a Modular Mifare Card Reader Module — Mifare card reader module for stacking with Hikvision modular IP / 2-Wire IP door stations.
Plug-in Mifare card reader module for Hikvision’s modular door station system. Reads 13.56 MHz contactless credentials for keyless tap-to-unlock alongside the main DS-KD8003 / DS-KD8005 camera/audio module. Mounts in any compatible DS-KD-ACF flush or DS-KD-ACW surface frame slot.
Key Features
- Mifare Card Reader module for Hikvision modular system
- Compatible with DS-KD8003-IME1, DS-KD8005-IME1, DS-KD8003Y-IME2 main door stations
- Mifare 13.56 MHz contactless reader
- Reads industry-standard contactless credentials
- Mounts in any compatible DS-KD-ACF / DS-KD-ACW frame slot
- Connector ribbon supplied for snap-in fitment
Identification: SKU DS-KD-M · MPN 305301208 · EAN/GTIN-13 6954273691516 · Brand Hikvision
The Hikvision DS-KD-M is a Mifare card reader module for Hikvision’s modular door station system. It stacks alongside the main DS-KD8003-IME1 / DS-KD8005-IME1 / DS-KD8003Y-IME2 camera and audio module on a compatible DS-KD-ACF flush mount or DS-KD-ACW surface mount frame — lets the installer build the front panel to match the install.
Target customers: installers building Hikvision modular door stations for commercial reception areas, multi-tenant residential entrances or high-end villa intercoms. Modules clip into the same DS-KD-ACF flush or DS-KD-ACW surface mount frame as the main camera/audio module, letting the installer add only the credentials and information interfaces the install actually needs.
Compatibility: mounts in any compatible DS-KD-ACF flush mount or DS-KD-ACW surface mount frame (1-module, 2-module or 3-module variants). Stacks with the main DS-KD8003-IME1 / DS-KD8005-IME1 / DS-KD8003Y-IME2 camera and audio module plus any other Hikvision modular module — DS-KD-DIS display, DS-KD-KP/S keypad, DS-KD-KK/S nametag, DS-KD-M card reader, DS-KD-INFO info module and DS-KD-BK blank.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KD-M ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KD-M
Technical specification taken from the official Hikvision DS-KD-M datasheet and Netview CCTV trade documentation.
| Module Type | |
|---|---|
| Module Type | Mifare Card Reader |
| Form Factor | Single-slot plug-in module |
| Function | Mifare 13.56 MHz contactless card reader |
| Compatibility | |
| Compatible Main Units | DS-KD8003-IME1(B)/NS, DS-KD8003-IME1(B)/S, DS-KD8005-IME1/S, DS-KD8003Y-IME2, DS-KD8003Y-IME2/NS, DS-KD8003Y-IME2/S |
| Compatible Mounts | DS-KD-ACF1, DS-KD-ACF1/S, DS-KD-ACF2/S, DS-KD-ACF3, DS-KD-ACF3/S (flush) / DS-KD-ACW1/S, DS-KD-ACW2/S, DS-KD-ACW3/S (surface) |
| Stack-able With | Any other Hikvision modular module — mix-and-match per install |
| Material & Finish | |
| Material | Aluminium / Hikvision-finished polycarbonate front plate |
| Finish | Matt-finish front plate matches standard Hikvision modules |
| Front Plate Thickness | Approx. 1.5 mm (anti-tamper) |
| Mounting | |
| Mounting | Plug-in — clips into compatible DS-KD-ACF / DS-KD-ACW frame slot |
| Connector | Ribbon connector to neighbouring module / main unit |
| Fixings | Front-load screw fixings (Hikvision proprietary) |
| Authentication | |
| Card Type | Mifare 13.56 MHz |
| Read Range | Up to 50 mm (typical, with standard credential) |
| Card Capacity | Up to 1,000 cards per parent door station |
| Anti-Pass-Back | Supported via parent door station configuration |
| Environmental | |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KD-M |
| MPN / Part Number | 305301208 |
| EAN / GTIN-13 | 6954273691516 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
