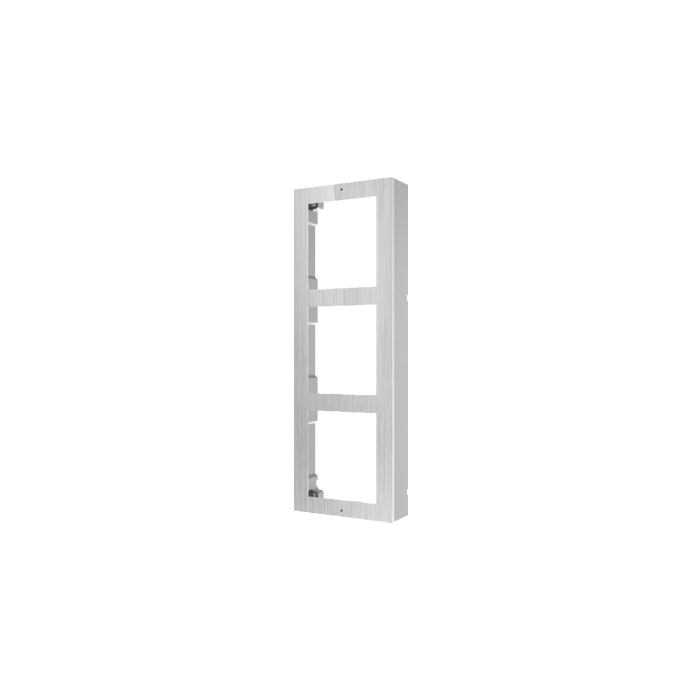

3-Module S/Steel Surface Mount DS-KD-ACW3/S for Modular Intercom Door Station
The Hikvision DS-KD-ACW3/S is a 3-Module Stainless Steel Surface Mount — 3-module stainless steel surface mount frame for Hikvision modular door station builds.
3-module stainless steel surface mount frame for Hikvision’s modular door station system. Holds the main DS-KD8003 / DS-KD8005 camera/audio module plus up to 2 optional accessory modules — keypad, nametag, card reader, info or display. Surface-fitted mounting with a weather-sealed front bezel. Stainless Steel front plate gives a brushed premium finish that suits residential and commercial entrances alike.
Key Features
- 3-module capacity frame
- Stainless Steel construction — brushed stainless steel
- Surface mount — surface-fitted with backbox for retrofit installs
- Accepts Hikvision modular door station modules (DS-KD8003-IME1, DS-KD8005-IME1, DS-KD8003Y-IME2 and accessories)
- Front-load screw fixings — no rear access required
- Weather-sealed bezel for outdoor installation
- Pre-drilled cable entries
Identification: SKU DS-KD-ACW3/S · MPN 305700704 · EAN/GTIN-13 6941264072201 · Brand Hikvision
The Hikvision DS-KD-ACW3/S is a 3-module stainless steel surface mount frame for Hikvision’s modular door station system. It carries the main DS-KD8003 / DS-KD8005 camera/audio module plus up to 2 accessory modules (keypad, nametag, card reader, info, display) in a single weather-sealed frame — the foundation on which a modular door station is built.
Target customers: installers building Hikvision modular door stations. The choice of flush versus surface mount and the module-count selection lets the installer match the front panel to wall finish (e.g. recessed for new-build brickwork, surface-fitted for retrofit) and to the credentials stack the install actually needs.
Compatibility: holds Hikvision modular door station modules — DS-KD8003-IME1 main camera/audio module, DS-KD8005-IME1 5MP main module, DS-KD8003Y-IME2 2-Wire IP main module, DS-KD-DIS display, DS-KD-KP/S keypad, DS-KD-KK/S nametag, DS-KD-M card reader, DS-KD-INFO info module, DS-KD-IN status indicator, DS-KD-BK blank infill and DS-KD-CO Paxton cut-out.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KD-ACW3/S ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KD-ACW3/S
Technical specification taken from the official Hikvision DS-KD-ACW3/S datasheet and Netview CCTV trade documentation.
| Mount Type | |
|---|---|
| Mount Type | Surface mount |
| Description | Surface-fitted with backbox — retrofit-friendly |
| Module Count | |
| Module Count | 3 module(s) |
| Stack Configuration | Vertical (modules stack from top to bottom in the frame) |
| Material & Finish | |
| Material | Stainless Steel |
| Finish | Brushed stainless steel — premium finish |
| Front Plate Thickness | Approx. 1.5 mm |
| Compatibility | |
| Compatible Main Units | DS-KD8003-IME1, DS-KD8005-IME1, DS-KD8003Y-IME2 (and variants) |
| Compatible Modules | DS-KD-DIS, DS-KD-KP/S, DS-KD-KK/S, DS-KD-M, DS-KD-INFO, DS-KD-IN, DS-KD-BK, DS-KD-CO, DS-KD-TDM |
| System Type | Hikvision IP modular + 2-Wire IP modular door stations |
| Dimensions | |
| Width | ~110 mm (single-column modular) |
| Height (approx.) | 410 mm (3 module(s)) |
| Depth | ~38 mm (surface backbox) |
| Cable Entry | Pre-drilled rear cable entry, weather-sealed |
| Environmental | |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KD-ACW3/S |
| MPN / Part Number | 305700704 |
| EAN / GTIN-13 | 6941264072201 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
