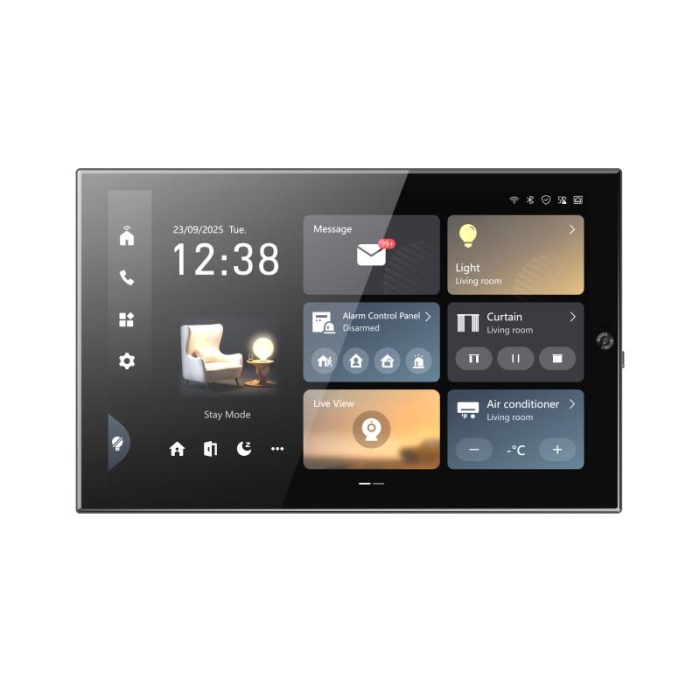

Hikvision DS-KC9570-VWTE1/S Smart Home Control Panel, Android 14, 10.1-inch Touch Screen, 5MP Camera, 4GB Ram, 16GB Rom
The Hikvision DS-KC9570-VWTE1/S is the 9 Series control panel in Hikvision’s TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide range: a 10.1-inch Android 14 touch panel that combines a video intercom indoor station with one-screen control of lighting, curtains, heating and air-conditioning, alarms, network cameras and lift access. It also has a built-in 5 MP camera with a privacy shutter.
Two network ports keep the intercom and smart-home networks separate, and Wi-Fi 6, 4 GB RAM / 16 GB ROM and dual microphones and speakers keep it fast and clear.
Key Features
- Smart-home control hub — lighting, curtains, HVAC, intercom, alarms, network cameras and lift access
- 10.1-inch 1920 × 1200 colour IPS capacitive touch screen
- Built-in 5 MP camera (2592 × 1944) with privacy shutter
- Android 14, 4-core processor, 4 GB RAM and 16 GB ROM
- 2 microphones and 2 loudspeakers (max. 80 dB at 50 cm) with noise suppression and echo cancellation
- Wi-Fi 6 (2.4 GHz + 5 GHz), BLE 5.0 and 2 × 10/100 Mbps Ethernet (intercom + smart home)
- Links up to 17 door stations, 16 indoor extensions and 16 network cameras
- IEEE 802.3at PoE or 12 VDC 2.5 A, max. 24 W
Hikvision DS-KC9570-VWTE1/S Smart Home Control Panel, Android 14, 10.1-inch Touch Screen, 5MP Camera, 4GB Ram, 16GB Rom
10.1-inch Android 14 smart-home control panel and video intercom indoor station with a 5 MP camera, Wi-Fi 6 and two network ports.
Overview
The Hikvision DS-KC9570-VWTE1/S is the 9 Series control panel of Hikvision’s TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide range — a 10.1-inch Android 14 panel designed to be the household’s single control point. Hikvision describes it as a unified control hub for lighting, curtains, HVAC, intercom, alarms, network cameras and elevator access, so the screen that answers the front door also runs the home.
It has a 1920 × 1200 colour IPS capacitive touch screen, a 4-core processor with 4 GB RAM and 16 GB ROM, a built-in 5 MP camera (2592 × 1944, H.264/H.265) with a privacy shutter and capacity for 50 faces, and two omnidirectional microphones and two loudspeakers (max. 80 dB at 50 cm) with noise suppression and echo cancellation. Connectivity is Wi-Fi 6 on 2.4 and 5 GHz, BLE 5.0 and two 10/100 Mbps Ethernet ports — one for the video intercom and one for the smart-home network. It links up to 17 door stations, 16 indoor extensions and 16 network cameras.
For smart-home integration the panel carries an RS-485 port, 8 alarm inputs, 2 alarm outputs, 2 relays (max. 30 VDC 1 A), a 12 VDC 200 mA output and an NTC temperature-sensor input; Hikvision lists the alarm inputs, outputs and relays as reserved. Hikvision’s own smart-home demo case (DS-KA01-ZX-18) pairs this panel with a DS-KV6124-WBE1 door station and HDL KNX lighting, curtain and air-conditioning control. It surface-mounts and runs on standard PoE (IEEE 802.3at) or 12 VDC 2.5 A at up to 24 W. Netview CCTV in Leicester is an authorised Hikvision wholesale distributor — call 0116 3800 838 for trade pricing.
Key Features
- Smart-home control hub — lighting, curtains, HVAC, intercom, alarms, network cameras and lift access
- 10.1-inch 1920 × 1200 colour IPS capacitive touch screen
- Built-in 5 MP camera (2592 × 1944) with privacy shutter
- Android 14, 4-core processor, 4 GB RAM and 16 GB ROM
- 2 microphones and 2 loudspeakers (max. 80 dB at 50 cm) with noise suppression and echo cancellation
- Wi-Fi 6 (2.4 GHz + 5 GHz), BLE 5.0 and 2 × 10/100 Mbps Ethernet (intercom + smart home)
- Links up to 17 door stations, 16 indoor extensions and 16 network cameras
- IEEE 802.3at PoE or 12 VDC 2.5 A, max. 24 W
DS-KC9570-VWTE1/S vs DS-KH9570-WTE1/S
| DS-KC9570-VWTE1/S control panel | DS-KH9570-WTE1/S indoor station | |
|---|---|---|
| Role | Smart-home control hub + indoor station | Indoor station |
| Camera | 5 MP with privacy shutter | – |
| ROM | 16 GB | 8 GB |
| Network ports | 2 (intercom + smart home) | 1 |
| Alarm outputs / relays | 2 / 2 (reserved) | – / 1 (reserved) |
| NTC temperature input | Yes | – |
| Face capacity | 50 | – |
| Screen, Android 14, 4 GB RAM, audio, Wi-Fi 6, capacities, surface mounting | Identical | |
Typical Applications
- Smart homes where one wall panel runs the intercom, lighting, curtains and climate
- Premium villas and apartments wanting one panel for the intercom and the home
- Projects with KNX or other smart-home systems alongside a Hikvision intercom
- TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide systems pairing DS-KV8114 or DS-KV6114 door stations with a control panel
Compatible Hikvision Devices
- Hikvision TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide IP door stations — DS-KV8114 series villa door stations (single or triple lens, nametag or keypad) and the DS-KV6114 / DS-KV6124
- Other Hikvision IP video intercom door stations and indoor extensions (up to 17 door stations and 16 indoor extensions)
- Hikvision and ONVIF IP cameras for live view on the screen (up to 16; four 1080p streams decoded at once)
- Hik-Connect app for remote answer, unlock and notifications
- Hikvision PoE switches (IEEE 802.3at) — one network cable carries power and data
Detailed Specifications — Hikvision DS-KC9570-VWTE1/S
Full technical specification from the official Hikvision product page.
| Identification | |
|---|---|
| SKU / MPN | DS-KC9570-VWTE1/S |
| EAN | 6942640514179 |
| Brand | Hikvision |
| Series | TalkVu 9 Series |
| Product type | Smart Home Control Panel / IP Indoor Station |
| System | |
| Operating system | Android 14 |
| ROM | 16 GB |
| RAM | 4 GB |
| Processor | Embedded high performance processor |
| Display | |
| Screen size | 10.1-inch |
| Operation method | Capacitive touch screen |
| Display type | Colour IPS |
| Resolution | 1920 × 1200 |
| Camera | |
| Camera | 1 built-in camera with privacy shutter (face anti-spoofing not supported) |
| Camera resolution | 5 MP, 2592 × 1944 |
| Video compression | H.264, H.265 |
| Audio | |
| Audio input | 2 built-in omnidirectional microphones |
| Audio compression | G.711A, G.711U, G.722.1, G.726, Opus, AAC, AAC-LD |
| Audio output | 2 built-in loudspeakers (max. 80 dB at 50 cm) |
| Audio bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Linked door stations | 17 |
| Message capacity | 200 captured pictures, 200 alarm records, 200 unlock records, 200 tamper records |
| Face capacity | 50 |
| Linked indoor extensions | 16 |
| Linked network cameras | 16 (up to four 1080p streams decoded at the same time, H.264 / H.265) |
| Network | |
| Wi-Fi | Wi-Fi 6, 2.4 GHz & 5 GHz |
| Bluetooth | BLE 5.0 |
| Network protocols | IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP; SIP v1 (RFC2543), SIP v2 (RFC3261); DTMF: SIP Info; SADP, ISAPI, ONVIF |
| Interfaces | |
| Alarm inputs | 8 (Reserved) |
| Network interface | 2 × RJ-45 10/100 Mbps self-adaptive (1 for video intercom, 1 for smart home) |
| RS-485 | 1 × RS-485 (Half duplex) |
| TF card | TF card (FAT32/exFAT), up to 256 GB |
| Alarm outputs | 2 high/low-level alarm outputs (3.3 V / 0 V) (Reserved) |
| Power supply input | 12 VDC |
| Power supply output | 12 VDC, 200 mA |
| Relay | 2 (Reserved), max. 30 VDC 1 A |
| NTC temperature sensor input | 1, R25 = 10 kΩ ±1%, B25/50 = 3950 K ±1% |
| General | |
| Proximity sensor | 50 cm range, 25° horizontal, 25° vertical |
| Installation | Surface mounting |
| Weight | 556 g (1.23 lb) without package; 650 g (1.43 lb) with package (shipping weight may differ) |
| Working humidity | 10% to 90% (non-condensing) |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Dimensions (W × H × D) | 246.58 mm × 155.76 mm × 23.62 mm (9.71" × 6.13" × 0.93") |
| Power supply | 12 VDC 2.5 A, or IEEE 802.3at standard PoE |
| Application environment | Indoor |
| Power consumption | ≤ 24 W |
| Interface languages | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
Specifications are taken from Hikvision published product data and may be updated by the manufacturer.
Frequently Asked Questions
What is the Hikvision DS-KC9570-VWTE1/S?
Hikvision’s TalkVu 9 Series control panel: a 10.1-inch Android 14 touch panel with a built-in 5 MP camera that combines a video intercom indoor station with smart-home control of lighting, curtains, HVAC, alarms, network cameras and lift access.
What does the V in VWTE1 mean?
The V version has the built-in 5 MP camera (2592 × 1944) with a privacy shutter. The DS-KC9570-WTE1/S is the version without a camera.
Does it work with KNX?
Hikvision’s own smart-home demo case (DS-KA01-ZX-18) pairs the DS-KC9570-VWTE1 with HDL KNX lighting, curtain and air-conditioning control and a DS-KV6124-WBE1 door station. Ask our trade team about your system.
Which door stations does it work with?
Hikvision TalkVu IP door stations such as the DS-KV8114 series and the DS-KV6114 / DS-KV6124 — up to 17 door stations, plus 16 indoor extensions and 16 network cameras.
How is it powered?
Standard PoE (IEEE 802.3at) over one network cable, or 12 VDC 2.5 A. Power consumption is no more than 24 W.
How do I order it?
Order online at netviewcctv.co.uk or call our trade team on 0116 3800 838 for trade pricing and availability.
