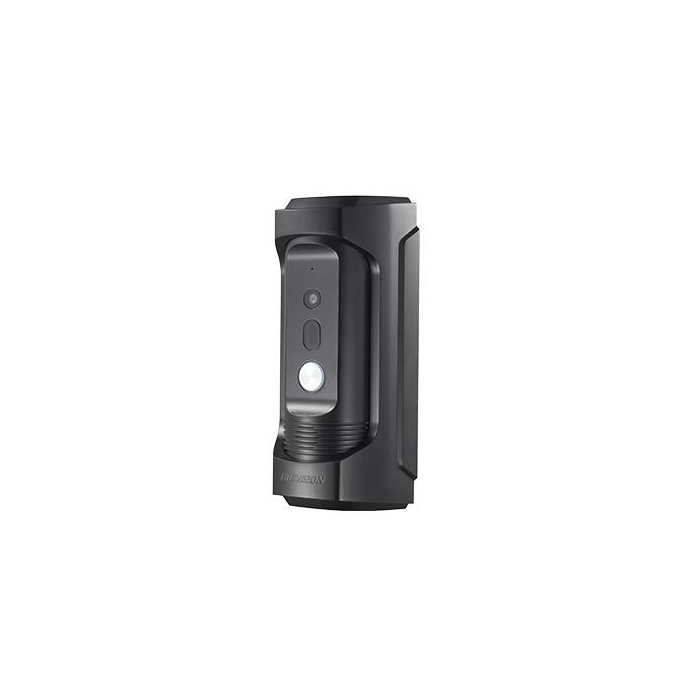

Hikvision Doorbell Pro Series Vandal Resistant DS-KB8113-IME1(B)
The Hikvision DS-KB8113-IME1(B) is a 2 MP IP Doorbell Pro — vandal-resistant IP doorbell with 180° wide-angle fisheye fisheye view, Mifare card reader and PoE / 12 VDC power.
Vandal-resistant doorbell-grade IP door station with a 180° fisheye lens that captures the visitor and the surrounding doorstep in a single frame. Built-in Mifare reader gives keyless tap-to-unlock for residents, and IR illumination keeps after-dark identification clean. PoE 802.3af or 12 VDC power means a single CAT-5e drop is all that’s needed at the door. Pair with any Hikvision DS-KH series indoor station or the Hik-Connect mobile app for remote answer and live view.
Key Features
- 2 MP camera with 180° wide-angle fisheye fisheye lens
- 3 m IR for night-time visitor identification
- Mifare card reader for keyless tap-to-unlock
- Vandal-resistant IP65 / IK08 housing
- PoE 802.3af or 12 VDC powered — single cable install
- Two-way full-duplex audio with echo cancellation
- Hik-Connect mobile app for remote answering & live view
Identification: SKU DS-KB8113-IME1(B) · MPN 305304016 · EAN/GTIN-13 6931847198831 · Brand Hikvision
The Hikvision DS-KB8113-IME1(B) is a vandal-resistant doorbell-grade IP door station designed for single-residence and small commercial entrances. A 180° fisheye lens captures both the visitor and the immediate doorstep in a single frame so nothing important is cropped out, while the integrated Mifare card reader gives residents a keyless tap-to-unlock alternative to PIN or key.
Target customers: residential and small-commercial installers fitting single-door intercoms where the front-door environment is exposed to weather, foot traffic and the occasional vandal. Suits Hikvision installer partners who want a doorbell-format IP station that integrates cleanly with the rest of Hikvision’s indoor-station and Hik-Connect ecosystem rather than relying on a third-party doorbell + adaptor stack.
Compatibility: pairs with any Hikvision DS-KH series indoor station (DS-KH6320, DS-KH8350, DS-KH8520 series) and the Hik-Connect mobile app for off-site answer and live view. Mifare credentials are issued from the Hikvision iVMS-4200 PC client or the indoor station itself. Compatible Hik-Connect access also enables QR-code visitor passes and remote unlock via the resident’s phone.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KB8113-IME1(B) ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KB8113-IME1(B)
Technical specification taken from the official Hikvision DS-KB8113-IME1(B) datasheet and Netview CCTV trade documentation.
| Camera & Image | |
|---|---|
| Resolution | 2 MP |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Frame Rate | Up to 30 fps (H.264 stream) |
| Minimum Illumination | 0.1 lux @ F2.0 (Colour); 0 lux with IR |
| WDR | Digital WDR |
| IR Range | 3 m supplementary IR |
| Day & Night | IR-cut filter with auto-switch |
| Lens & Optical | |
| Lens | 180° wide-angle fisheye |
| Lens Type | Fixed |
| Aperture | F2.0 (typical) |
| Field of View | 180° wide-angle fisheye |
| IR Cut Filter | Yes — auto-switch |
| Network & Audio | |
| Network | PoE 802.3af + 12V DC |
| Audio | Full-duplex two-way audio with echo cancellation |
| Audio Compression | G.711U |
| Microphone | Built-in omnidirectional |
| Speaker | Built-in 1 W |
| Video Compression | H.264 / H.264+ (Main / Baseline) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, SIP |
| Access Control | |
| Card Reader | Mifare 13.56 MHz contactless |
| Credentials per Station | Up to 1,000 (typical) |
| Keypad | Not fitted (add DS-KD-KP/S or DS-KD-TDM module for modular stations) |
| Facial Recognition | Not fitted (refer to DS-KD9613 series for face-recognition variants) |
| QR Reader | Hik-Connect generated QR codes — resident-issued visitor pass |
| Tamper Detection | Built-in tamper-resistant housing |
| Wiegand & Alarm I/O | |
| Lock Outputs | 1 × relay (Form C, 12 VDC / 30 VAC, 2 A max) |
| Door Sensor Input | 1 × opto-isolated (NO / NC) |
| Exit Button Input | 1 × opto-isolated |
| Wiegand | Wiegand 26/34 output (for integration with third-party access control) |
| Alarm Input | 1 × opto-isolated (programmable) |
| RS-485 | 1 × (for external card reader / I/O expansion) |
| Environmental | |
| IP Rating | IP65 |
| Vandal Rating | IK08 |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KB8113-IME1(B) |
| MPN / Part Number | 305304016 |
| EAN / GTIN-13 | 6931847198831 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
Documentation — Hikvision DS-KB8113-IME1(B) 2 MP IP Doorbell Pro
Download the official Hikvision datasheet for the DS-KB8113-IME1(B), plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-KB8113-IME1(B) Product Datasheet | DS-KB8113-IME1(B) Datasheet (PDF) | |
| Browse all Doorbells | Web | View Doorbells |
| Browse all Video Intercom | Web | View all Video Intercom |
| Browse all CCTV Cameras | Web | View all CCTV Cameras |
| Contact Netview CCTV — trade pricing & support | Web | Contact Netview CCTV — 0116 3800 838 |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the DS-KB8113-IME1(B), contact our trade team on 0116 3800 838 or [email protected].
