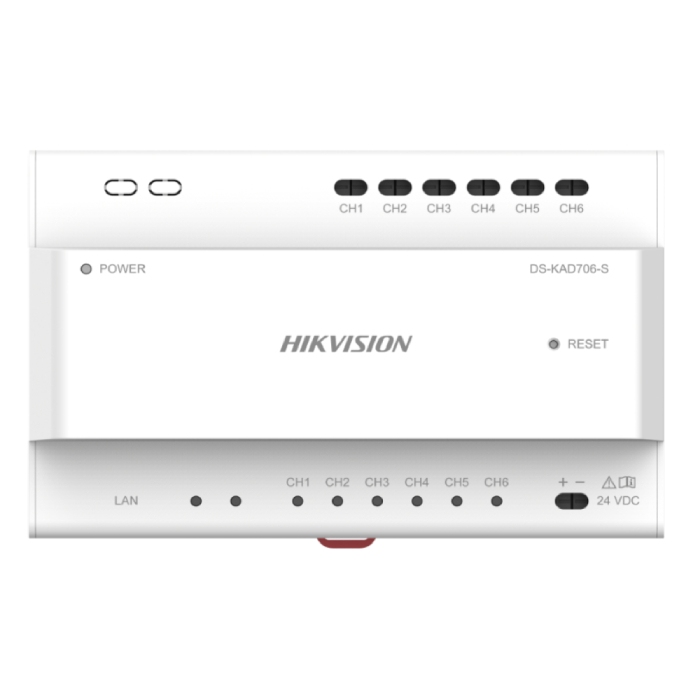

Hikvision 2~Wire IP DS-KAD706Y-S 6-port Distributor without device output power
The Hikvision DS-KAD706Y-S is a 2-Wire IP Distributor — 6-port 2-Wire IP distributor for cascading building extensions.
DIN-rail mounted 6-port 2-Wire IP distributor — cascades the 2-Wire IP bus from the DS-KAW60-2N PSU to downstream door stations and DS-KH series indoor stations. This variant is for downstream cascading without device output power — designed to chain additional distributors for larger or multi-block installs. Status LEDs per channel for fault diagnosis.
Key Features
- 6-port 2-Wire IP distributor
- DIN-rail mount — clean comms cabinet integration
- Pair with DS-KAW60-2N 24V PSU upstream
- Feeds DS-KD8003Y / DS-KH series indoor stations downstream
- Variant without device output power — downstream devices draw power independently or from upstream distributor
- Cascade up to 5 distributors per system
- Status LEDs per channel for fault diagnosis
- Per Hikvision installation guide
Identification: SKU DS-KAD706Y-S · MPN 305303646 · EAN/GTIN-13 6931847185282 · Brand Hikvision
The Hikvision DS-KAD706Y-S is a 6-port DIN-rail distributor for Hikvision’s 2-Wire IP intercom system. This variant omits device output power and is intended for cascading additional distributors across larger or multi-block installs.
Target customers: installers and integrators rolling out Hikvision 2-Wire intercom systems across multi-door or multi-floor buildings. DIN-rail mount integrates cleanly with structured comms cabinets, and the per-channel status LEDs make commissioning and post-install fault diagnosis straightforward.
Compatibility: powered upstream by the DS-KAW60-2N 24 VDC PSU and feeds downstream Hikvision 2-Wire IP door stations (DS-KD8003Y series) and DS-KH series indoor stations configured for 2-Wire IP. Cascade additional DS-KAD706Y units for larger systems.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KAD706Y-S ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KAD706Y-S
Technical specification taken from the official Hikvision DS-KAD706Y-S datasheet and Netview CCTV trade documentation.
| Network | |
|---|---|
| Network | 2-Wire IP bus |
| Bus Type | Hikvision 2-Wire IP — un-polarised twisted pair |
| Cascadeable | Yes — up to 5 units in series |
| Status Indicators | Per-channel LED for fault diagnosis |
| Power | |
| Input Power | 24 VDC from DS-KAW60-2N PSU |
| Power Draw | Max 60 W per upstream PSU |
| Device Output Power | No — for cascading additional distributors only |
| Channel Layout | |
| Channels / Ports | 6 |
| Channel Layout | 6-port fan-out |
| Connector Type | Screw terminal block (rising-clamp) |
| Wire Gauge | 0.5 mm² to 2.5 mm² |
| Mounting | |
| Mounting | DIN-rail (TS35 standard) |
| Form Factor | Compact comms-cabinet-friendly enclosure |
| Status LEDs | Per-channel + system power |
| Environmental | |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| Compatibility | |
| Upstream PSU | DS-KAW60-2N (24 VDC, 60 W) |
| Downstream Devices | DS-KD8003Y series 2-Wire IP door stations, DS-KH series indoor stations |
| Cascade Variant | DS-KAD706Y-S for cascading further distributors |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KAD706Y-S |
| MPN / Part Number | 305303646 |
| EAN / GTIN-13 | 6931847185282 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
