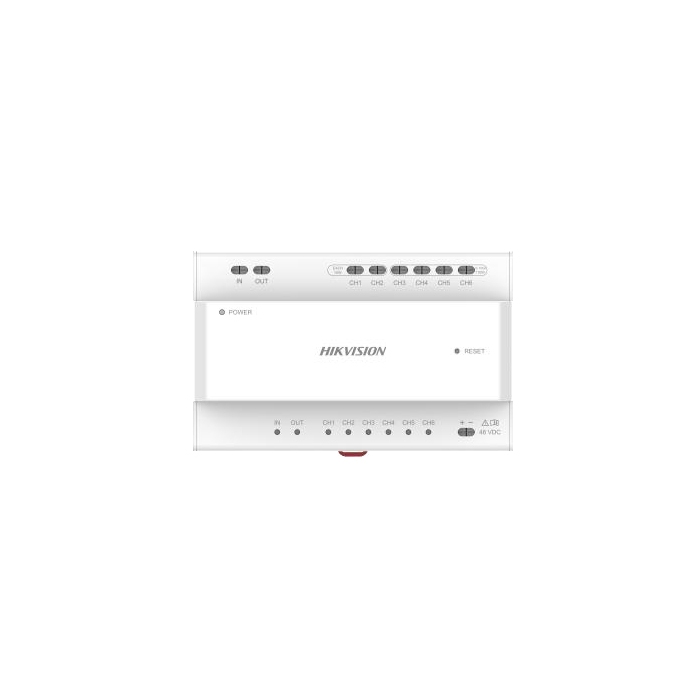

Hikvision 2~Wire HD DS-KAD7060EY Distributor
The Hikvision DS-KAD7060EY is a 2-Wire HD Distributor — 6-port 2-Wire HD distributor for fan-out from PSU to door stations and indoor stations.
DIN-rail mounted 6-port 2-Wire HD distributor — fans out the 2-Wire HD bus from the DS-KAW150-4N PSU to downstream door stations and indoor stations. Status LEDs per channel for fault diagnosis. Cascadeable for larger systems — pair with additional DS-KAD7060EY units for risers, outbuildings or multi-block extensions.
Key Features
- 6-port 2-Wire HD fan-out distributor
- DIN-rail mount for clean comms cabinet integration
- Pair with DS-KAW150-4N 48V PSU upstream
- Feeds DS-KD7003 / DS-KH series stations downstream
- Cascade additional distributors for larger installs
- Status LEDs per channel for fault diagnosis
- Built for retrofits — no CAT-5e re-pull needed
Identification: SKU DS-KAD7060EY · MPN 305304203 · EAN/GTIN-13 6942160432892 · Brand Hikvision
The Hikvision DS-KAD7060EY is a 6-port DIN-rail distributor for Hikvision’s 2-Wire HD intercom system — the fan-out point between the DS-KAW150-4N PSU and downstream door stations and indoor stations. Status LEDs per channel for fault diagnosis.
Target customers: installers and integrators rolling out Hikvision 2-Wire intercom systems across multi-door or multi-floor buildings. DIN-rail mount integrates cleanly with structured comms cabinets, and the per-channel status LEDs make commissioning and post-install fault diagnosis straightforward.
Compatibility: powered upstream by the DS-KAW150-4N 48 VDC PSU and feeds downstream Hikvision 2-Wire HD door stations (DS-KD7003 series) and DS-KH series indoor stations configured for 2-Wire HD. Cascade additional DS-KAD7060EY units for larger systems, or combine with DS-KAD7061EY 4-channel floor shunts on stacked-riser installs.
Support: Netview CCTV is an authorised Hikvision wholesale distributor based in Leicester, UK. The DS-KAD7060EY ships from our UK stock with same-day dispatch on orders placed before the trade cut-off. Our technical team supports installers on site selection, commissioning and post-install diagnostics — call 0116 3800 838 for trade pricing, stock confirmation or technical advice.
Detailed Specifications — Hikvision DS-KAD7060EY
Technical specification taken from the official Hikvision DS-KAD7060EY datasheet and Netview CCTV trade documentation.
| Network | |
|---|---|
| Network | 2-Wire HD bus |
| Bus Type | Hikvision 2-Wire HD — un-polarised twisted pair |
| Cascadeable | Yes — up to 5 units in series |
| Status Indicators | Per-channel LED for fault diagnosis |
| Power | |
| Input Power | 48 VDC from DS-KAW150-4N PSU |
| Power Draw | Max 150 W per upstream PSU |
| Device Output Power | No — for cascading additional distributors only |
| Channel Layout | |
| Channels / Ports | 6 |
| Channel Layout | 6-port fan-out |
| Connector Type | Screw terminal block (rising-clamp) |
| Wire Gauge | 0.5 mm² to 2.5 mm² |
| Mounting | |
| Mounting | DIN-rail (TS35 standard) |
| Form Factor | Compact comms-cabinet-friendly enclosure |
| Status LEDs | Per-channel + system power |
| Environmental | |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 90% (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| Compatibility | |
| Upstream PSU | DS-KAW150-4N (48 VDC, 150 W) |
| Downstream Devices | DS-KD7003 series 2-Wire HD door stations, DS-KH series indoor stations |
| Cascade Variant | DS-KAD7060EY-S for building-to-building extensions |
| Floor Shunt Variant | DS-KAD7061EY for per-floor branches on stacked risers |
| General | |
| Brand | Hikvision |
| Model / SKU | DS-KAD7060EY |
| MPN / Part Number | 305304203 |
| EAN / GTIN-13 | 6942160432892 |
| Country of Origin | China |
| Warranty | Hikvision standard 2-year warranty (UK distributor backed) |
| Approvals | CE, UKCA, RoHS, REACH, WEEE |
