Hikvision DS-KABV8114-SG Surface gang box for KV8114 series villa door station - SURFACE MOUNTING
The Hikvision DS-KABV8114-SG is a surface gang box that gives KV8114 series villa door stations a tidy surface-mount install with concealed cabling. Hikvision lists it for the KV8114 series (DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1). For a complete installation pair it with the DS-KABV8114-RS/S.
Key Features
- Surface-mount back box for KV8114 series villa door stations
- Conceals cable entry behind the door station for a tidy surface install
- Galvanised steel (SGCC) construction
- Rated -40 °C to +60 °C, 10–90 % RH (non-condensing)
- Pair with the DS-KABV8114-RS/S surface rain shield for exposed entrances

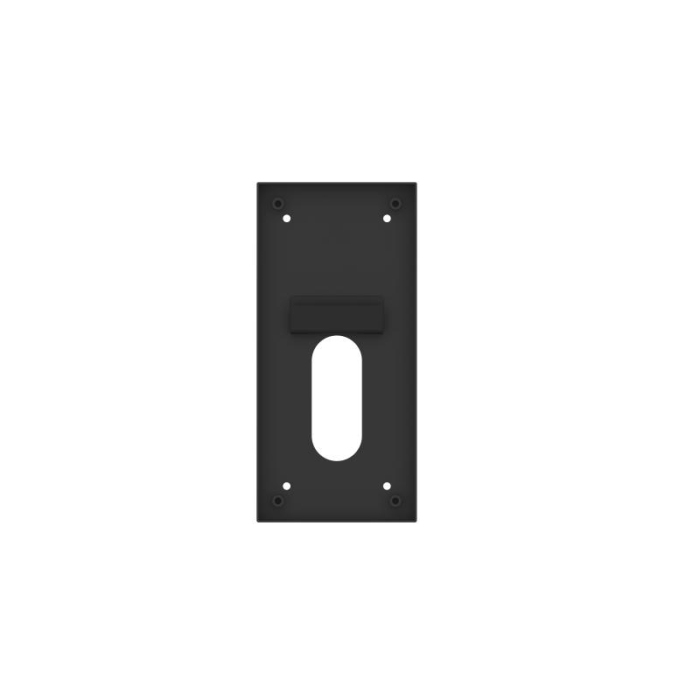

Hikvision DS-KABV8114-SG Surface Mount Gang Box for KV8114 Series Villa Door Stations
Surface gang box for KV8114 series villa door station.
Overview
The Hikvision DS-KABV8114-SG is a surface gang box that gives KV8114 series villa door stations a tidy surface-mount install with concealed cabling. It is a genuine Hikvision accessory made for the KV8114 series — the 4MP Wi-Fi 6 metal villa door stations with face recognition, card, Bluetooth, QR code and app access (DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1). For a complete installation pair it with the DS-KABV8114-RS/S.
Built from SGCC galvanised steel and rated for -40 °C to 60 °C (-40 °F to 140 °F), it suits exposed outdoor entrances on homes, villas and small commercial sites. Netview CCTV in Leicester is an authorised Hikvision wholesale distributor — call 0116 3800 838 for availability and trade pricing.
Key Features
- Surface-mount back box for KV8114 series villa door stations
- Conceals cable entry behind the door station for a tidy surface install
- Galvanised steel (SGCC) construction
- Rated -40 °C to +60 °C, 10–90 % RH (non-condensing)
- Pair with the DS-KABV8114-RS/S surface rain shield for exposed entrances
Compatible Door Stations
- Hikvision DS-KV8114-NWQE1
- Hikvision DS-KV8114-KWQE1
- Hikvision DS-KV8114T-NWQE1
- Hikvision DS-KV8114T-KWQE1
Hikvision lists this accessory for the KV8114 series. The DS-KV8114T (180°) models share the same 202.6 × 95.6 mm front and are slightly deeper (34 mm vs 28.5 mm).
What's in the Box
- 1 × Hikvision DS-KABV8114-SG surface mount gang box
- Fixing hardware (where supplied by Hikvision)
Detailed Specifications — Hikvision DS-KABV8114-SG
Specification from the official Hikvision product page and datasheet.
| Identification | |
|---|---|
| SKU | DS-KABV8114-SG |
| MPN | DS-KABV8114-SG |
| Brand | Hikvision |
| Product Type | Surface Mounting Back Box |
| Compatible with | Hikvision KV8114 series villa door stations |
| General | |
| Installation | Surface mounting |
| Material | SGCC galvanised steel |
| Dimensions (W × H × D) | 164 mm × 69 mm × 23.5 mm (6.46" × 2.72" × 0.93") |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% (non-condensing) |
Which door stations does the DS-KABV8114-SG fit?
Hikvision lists it for the KV8114 series villa door stations: DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1.
Is the DS-KABV8114-SG suitable for outdoor use?
Yes. It is rated -40 °C to 60 °C (-40 °F to 140 °F) and 10% to 90% (non-condensing), made from SGCC galvanised steel.
What are the dimensions?
164 mm × 69 mm × 23.5 mm (6.46" × 2.72" × 0.93").
What else do I need for a complete surface install?
Pair the DS-KABV8114-SG with the DS-KABV8114-RS/S.
