Hikvision DS-KABV8114-RS/F Protective shield for KV8114 series villa door station - FLUSH MOUNTING
The Hikvision DS-KABV8114-RS/F is a protective rain shield (hood) for flush-mounted KV8114 series villa door stations. Hikvision lists it for the KV8114 series (DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1). For a complete installation pair it with the DS-KABV8114-G.
Key Features
- Rain shield / protective hood for flush-mounted KV8114 series door stations
- Shields the camera window, buttons and card/NFC area from direct rain and sun
- Galvanised steel (SGCC) construction for outdoor use
- Rated -40 °C to +60 °C, 10–90 % RH (non-condensing)
- Use together with the DS-KABV8114-G flush gang box for a full flush install

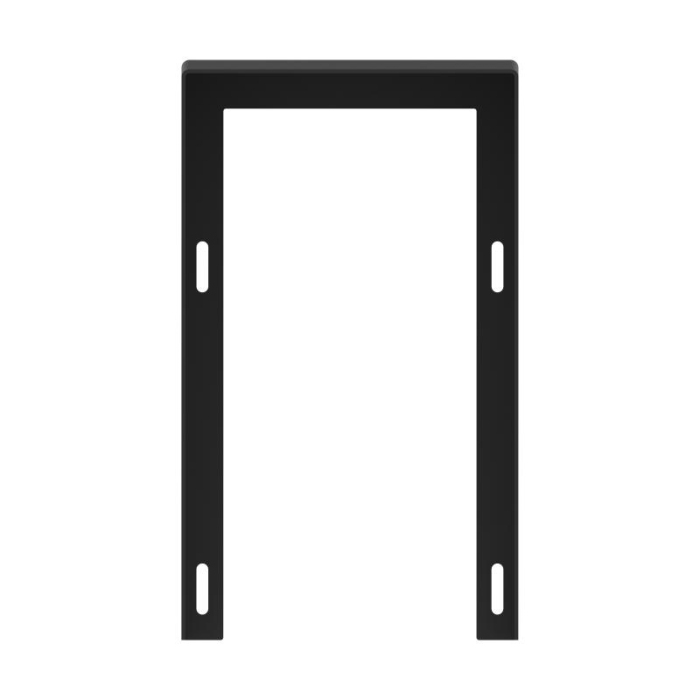

Hikvision DS-KABV8114-RS/F Flush Mount Rain Shield for KV8114 Series Villa Door Stations
Protective shield for KV8114 series villa door station (Flush mounting).
Overview
The Hikvision DS-KABV8114-RS/F is a protective rain shield (hood) for flush-mounted KV8114 series villa door stations. It is a genuine Hikvision accessory made for the KV8114 series — the 4MP Wi-Fi 6 metal villa door stations with face recognition, card, Bluetooth, QR code and app access (DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1). For a complete installation pair it with the DS-KABV8114-G.
Built from SGCC galvanised steel and rated for -40° C to +60° C (-40° F to 140° F), it suits exposed outdoor entrances on homes, villas and small commercial sites. Netview CCTV in Leicester is an authorised Hikvision wholesale distributor — call 0116 3800 838 for availability and trade pricing.
Key Features
- Rain shield / protective hood for flush-mounted KV8114 series door stations
- Shields the camera window, buttons and card/NFC area from direct rain and sun
- Galvanised steel (SGCC) construction for outdoor use
- Rated -40 °C to +60 °C, 10–90 % RH (non-condensing)
- Use together with the DS-KABV8114-G flush gang box for a full flush install
Compatible Door Stations
- Hikvision DS-KV8114-NWQE1
- Hikvision DS-KV8114-KWQE1
- Hikvision DS-KV8114T-NWQE1
- Hikvision DS-KV8114T-KWQE1
Hikvision lists this accessory for the KV8114 series. The DS-KV8114T (180°) models share the same 202.6 × 95.6 mm front and are slightly deeper (34 mm vs 28.5 mm).
What's in the Box
- 1 × Hikvision DS-KABV8114-RS/F flush mount rain shield
- Fixing hardware (where supplied by Hikvision)
Detailed Specifications — Hikvision DS-KABV8114-RS/F
Specification from the official Hikvision product page and datasheet.
| Identification | |
|---|---|
| SKU | DS-KABV8114-RS/F |
| MPN | DS-KABV8114-RS/F |
| Brand | Hikvision |
| Product Type | Rain Shield / Protective Housing |
| Compatible with | Hikvision KV8114 series villa door stations |
| General | |
| Installation | Flush mounting |
| Material | SGCC galvanised steel |
| Dimensions (W × H × D) | 221.41 mm × 128.6 mm × 42.6 mm (8.72" × 5.06" × 1.68") |
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
| Working humidity | 10% to 90% (non-condensing) |
Which door stations does the DS-KABV8114-RS/F fit?
Hikvision lists it for the KV8114 series villa door stations: DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1.
Is the DS-KABV8114-RS/F suitable for outdoor use?
Yes. It is rated -40° C to +60° C (-40° F to 140° F) and 10% to 90% (non-condensing), made from SGCC galvanised steel.
What are the dimensions?
221.41 mm × 128.6 mm × 42.6 mm (8.72" × 5.06" × 1.68").
What else do I need for a complete flush install?
Pair the DS-KABV8114-RS/F with the DS-KABV8114-G.
