Hikvision DS-KABV8114-A 30° Angle Bracket for KV8114 series villa door station - SURFACE MOUNTING
The Hikvision DS-KABV8114-A is a 30° angled wall bracket that turns a KV8114 series villa door station towards the visitor's approach. Hikvision lists it for the KV8114 series (DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1).
Key Features
- Angles the KV8114 series door station 30° on the wall
- Points the camera and face-recognition view at visitors approaching from the side
- Thermally conductive composite construction
- Rated -40 °C to +60 °C, 10–90 % RH (non-condensing)
- Ideal for door stations mounted beside a gate, side passage or porch return

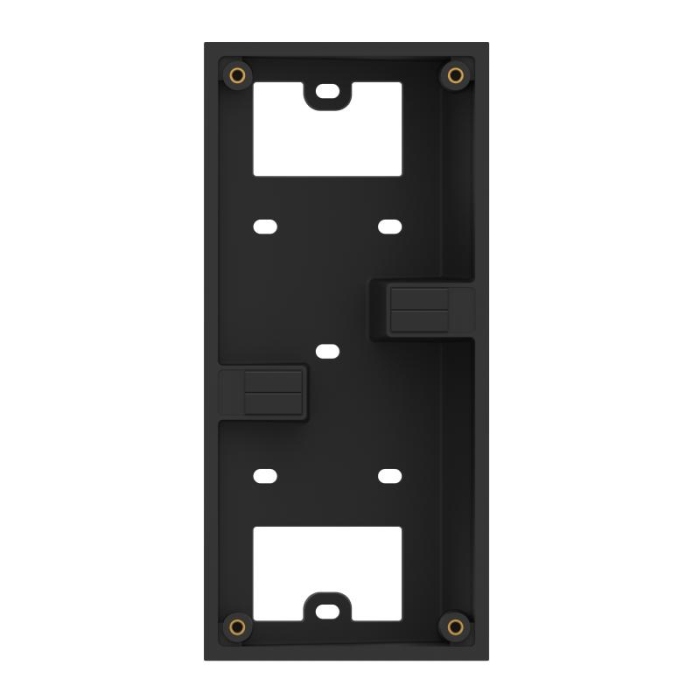

Hikvision DS-KABV8114-A 30° Angled Wall Bracket for KV8114 Series Villa Door Stations
Wall-mounted bracket for KV8114 series villa door station to adjust the install angle for 30 degree.
Overview
The Hikvision DS-KABV8114-A is a 30° angled wall bracket that turns a KV8114 series villa door station towards the visitor's approach. It is a genuine Hikvision accessory made for the KV8114 series — the 4MP Wi-Fi 6 metal villa door stations with face recognition, card, Bluetooth, QR code and app access (DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1).
Built from thermally conductive composite and rated for -40 °C to +60 °C (-40 °F to 140 °F), it suits exposed outdoor entrances on homes, villas and small commercial sites. Netview CCTV in Leicester is an authorised Hikvision wholesale distributor — call 0116 3800 838 for availability and trade pricing.
Key Features
- Angles the KV8114 series door station 30° on the wall
- Points the camera and face-recognition view at visitors approaching from the side
- Thermally conductive composite construction
- Rated -40 °C to +60 °C, 10–90 % RH (non-condensing)
- Ideal for door stations mounted beside a gate, side passage or porch return
Compatible Door Stations
- Hikvision DS-KV8114-NWQE1
- Hikvision DS-KV8114-KWQE1
- Hikvision DS-KV8114T-NWQE1
- Hikvision DS-KV8114T-KWQE1
Hikvision lists this accessory for the KV8114 series. The DS-KV8114T (180°) models share the same 202.6 × 95.6 mm front and are slightly deeper (34 mm vs 28.5 mm).
What's in the Box
- 1 × Hikvision DS-KABV8114-A 30° angled wall bracket
- Fixing hardware (where supplied by Hikvision)
Detailed Specifications — Hikvision DS-KABV8114-A
Specification from the official Hikvision product page and datasheet.
| Identification | |
|---|---|
| SKU | DS-KABV8114-A |
| MPN | DS-KABV8114-A |
| Brand | Hikvision |
| Product Type | Angled Wall Bracket |
| Compatible with | Hikvision KV8114 series villa door stations |
| General | |
| Installation | Mounting with Diagonal Bracket |
| Material | Thermally conductive composite |
| Dimensions (W × H × D) | 198.5 mm × 91.5 mm × 54.82 mm (7.82" × 3.6" × 2.16") |
| Working temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% (non-condensing) |
Which door stations does the DS-KABV8114-A fit?
Hikvision lists it for the KV8114 series villa door stations: DS-KV8114-NWQE1, DS-KV8114-KWQE1, DS-KV8114T-NWQE1, DS-KV8114T-KWQE1.
Is the DS-KABV8114-A suitable for outdoor use?
Yes. It is rated -40 °C to +60 °C (-40 °F to 140 °F) and 10% to 90% (non-condensing), made from thermally conductive composite.
What are the dimensions?
198.5 mm × 91.5 mm × 54.82 mm (7.82" × 3.6" × 2.16").
Documentation — Hikvision DS-KABV8114-A
| Document | Format | Link |
|---|---|---|
| DS-KABV8114-A Datasheet (Hikvision) | Download datasheet | |
| Hikvision product page | Web | View on hikvision.com |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV (Leicester). Trade pricing: 0116 3800 838 or [email protected].
