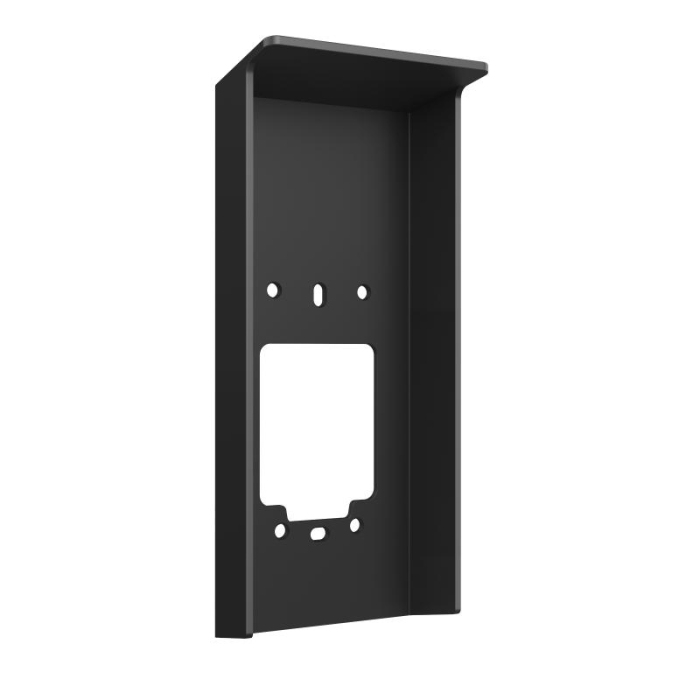

Hikvision DS-KABV6114-RS Rainshield Right View

Skip to the beginning of the images gallery

Hikvision DS-KABV6114-RS Rain shield for DS-KV6114 & DS-KV6124 Villa Door Stations

Name: Hikvision DS-KABV6114-RS Rain shield for DS-KV6114 & DS-KV6124 Villa Door Stations
Brand: Hikvision
SKU: DS-KABV6114-RS
Availability: InStock

Be the first to review this product

Unlock Trade Price

In stock

SKU

DS-KABV6114-RS

MPN: 305701322EAN: 6936422178437UPC: DS-KABV6114-RSBarcode: 6936422178437

Notify me when the price drops

Hikvision DS-KABV6114-RS Rain shield

Protective Rainshield For use with :

Hikvision DS-KV6114-WBE1 Video Intercom External Villa Door Station
Hikvision DS-KV6114-MWBE1 Video Intercom External Metal Villa Door Station
Hikvision DS-KV6124-WBE1 Video Intercom External Villa Door Station with Keypad

Protective Rainshield
Surface Mounted
Material : PC
Dimensions 194.49mm x 84.62mm

MPN: 305701322EAN: 6936422178437UPC: DS-KABV6114-RSBarcode: 6936422178437

Description

In Depth

Documents

Firmware

Tools

iVMS-4200

Hikvision TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide Installer Guide (2026)

Door stations, indoor monitors, the DS-KIS613-S kit and the accessory pack — all of TalkVuHikvision TalkVu Video Intercom: 2026 UK Installer Guide compared and explained for UK installers in one long-form Netview hub.

Read the full TalkVu installer guide →

System parameters
Operation systemLinux
ROM4 GB
RAM512 MB
ProcessorEmbeded high performance processor

Video parameters
Lens1
Resolution
Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P)

Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
FOVHorizontal: 150°; Vertical: 75°
Wide dynamic range (WDR)Support 120 dB
Supplement lightIR light, up to 3 m
Video compression standardH.264; H.265; MJPEG

Audio parameters
Audio input1 built-in omnidirectional microphone
Audio compression standardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
Audio output1 built-in loudspeaker
Audio compression bitrate8~64 Kps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable
Audio Performance50cm 80dB (Maximum: 50cm 83dB)
Audio Sample Rate16kHz、8kHz

Capacity
User capacity2000
Face capacity/
Card capacity10000

Network parameters
Network protocolTCP/IP, RTSP, ipv6,onvif
Wi-Fi2.4G
BluetoothSupported
3G/4G/
Wi-Fi ProtocolIEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
Wi-Fi TypeWiFi 6

Authentication
Authentication modeCard, PIN code, Bluetooth, Hik-Connect, indoor station
Card typeM1 Card
Card reading frequency13.56 MHz
Card reading distanceM1 card：2 to 2.5 cm

Application
Mobile APPHik-Connect
Motion DetectionSupport
PlaybackSupport
Call ElevatorSupport
Smart FeaturesSound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)

Device interfaces
Alarm input4, (include Exit button and Door contact input)
Network interface1 RJ-45, 10/100 Mbps self-adaptive
TAMPER1
Exit button1
RS-4851
USB/
Wiegand/
TF cardSupport TF card, up to 128 G
Alarm output/
Lock control2 relays, Max. 30 VDC 2 A
Door contact input1
Supported TF FormatFAT32;exFAT

General
Button1 physical button
InstallationSurface mounting
Indicator3
Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)
Protective levelIP65
Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
Working humidity10% to 90% (no-condensing)
Dimension (W × H × D)164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97")
Battery/
Application environmentOutdoor
Power consumption＜ 10 W
LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
Power supply12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
Material
Front Shell and Rear Shell Material: Plastic

Viewing Window Panel Material: Glass
Power Supply OutputMax. 12 VDC, 1 A
