Hikvision DS-K7PEB Emergency Break Glass Box Green
In stock
SKU
DS-K7PEB
MPN: 302901047EAN: 6954273636104UPC: 6954273636104

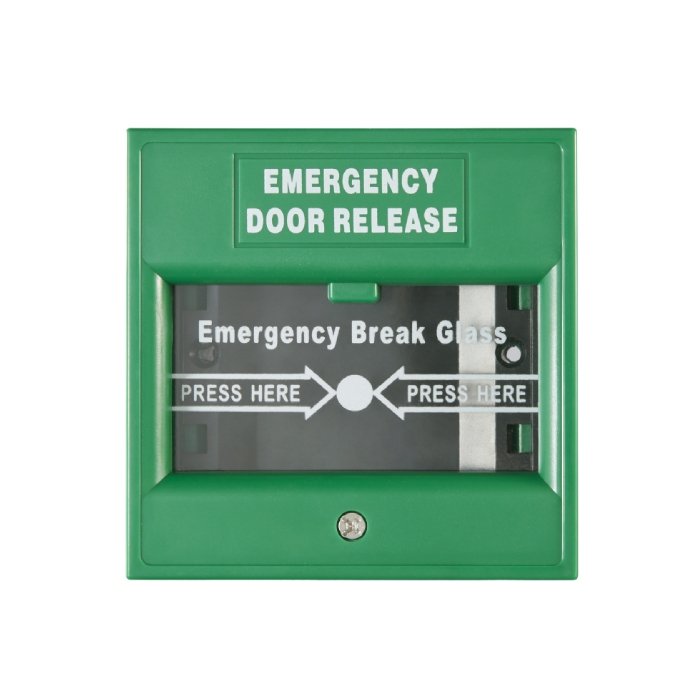

Hikvision DS-K7PEB Emergency Break Glass Box Green
DS-K7PEB Emergency Break Glass Box is designed for exit doors and emergency doors. It is made of fireproof material and has a sandblast finish. Has Normally Open (N.O.), Normally Closed (N.C.), and common (COM) contact outputs.
Emergency Break Glass Box made of fireproof material and the Dimensions are 86(L)x86(W)x50(H)(mm).
Feature:
- Suitable for Door: exit door, emergency door
- Material Selection: Fireproof material, sandblast finished
- Standard structure: fireproof material
- Optional Accessories: glass/ transparent cover
- Output Contact: NO/NC/COM
- Current Rating: 3A @ 36VDC Max
- Dimensions: 86(L)x86(W)x50(H)(mm)
- Color: red or green are selectable
- Operating Temperature: -10℃ to +55℃ (14F to 131F)
- Operating Humidity: 0% to 95% (relative humidity)
- Weight: 0.2kg
MPN: 302901047EAN: 6954273636104UPC: 6954273636104
| General | |
| Current Rating: | 3A@36VDC Max |
| Suitable Doors: | Exit door, Emergency door |
| Output Contact: | NO/NC/COM Contact |
| Appearance Color: | Red or Green |
| Material: | Fireproof Material, Sandblast Finished |
| Working Humidity: | 0 to 95% (relative humidity) |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) |
| Dimensions (L×W×H): | 86mm × 86mm × 50mm(3.39'' × 3.39'' × 1.97'') |
| Weight: | 0.20kg (0.44lb) |
