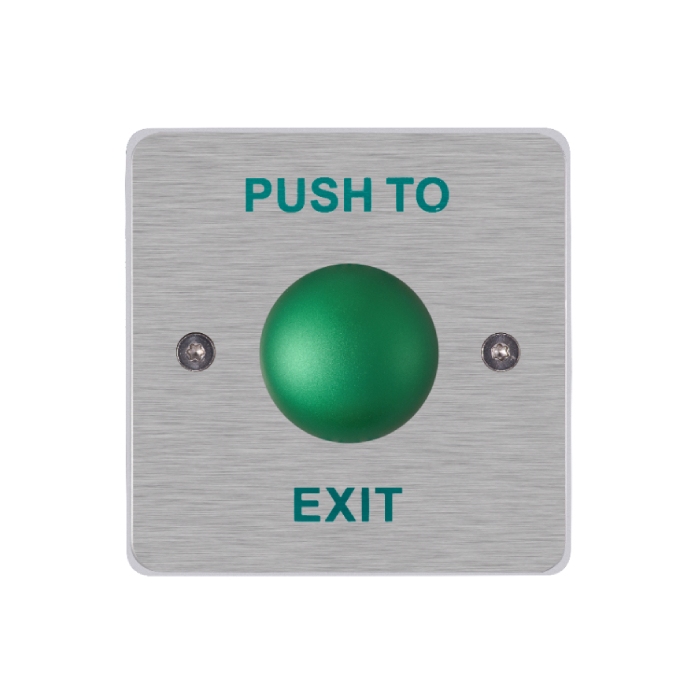

Hikvision DS-K7P06 Brushed Stainless Steel Panel Push To Exit & Emergency Button
In stock
SKU
DS-K7P06
MPN: 302900567EAN: 6954273636098UPC: 6954273636098
Hikvision DS-K7P06 Brushed Stainless Steel Panel Push To Exit & Emergency Button

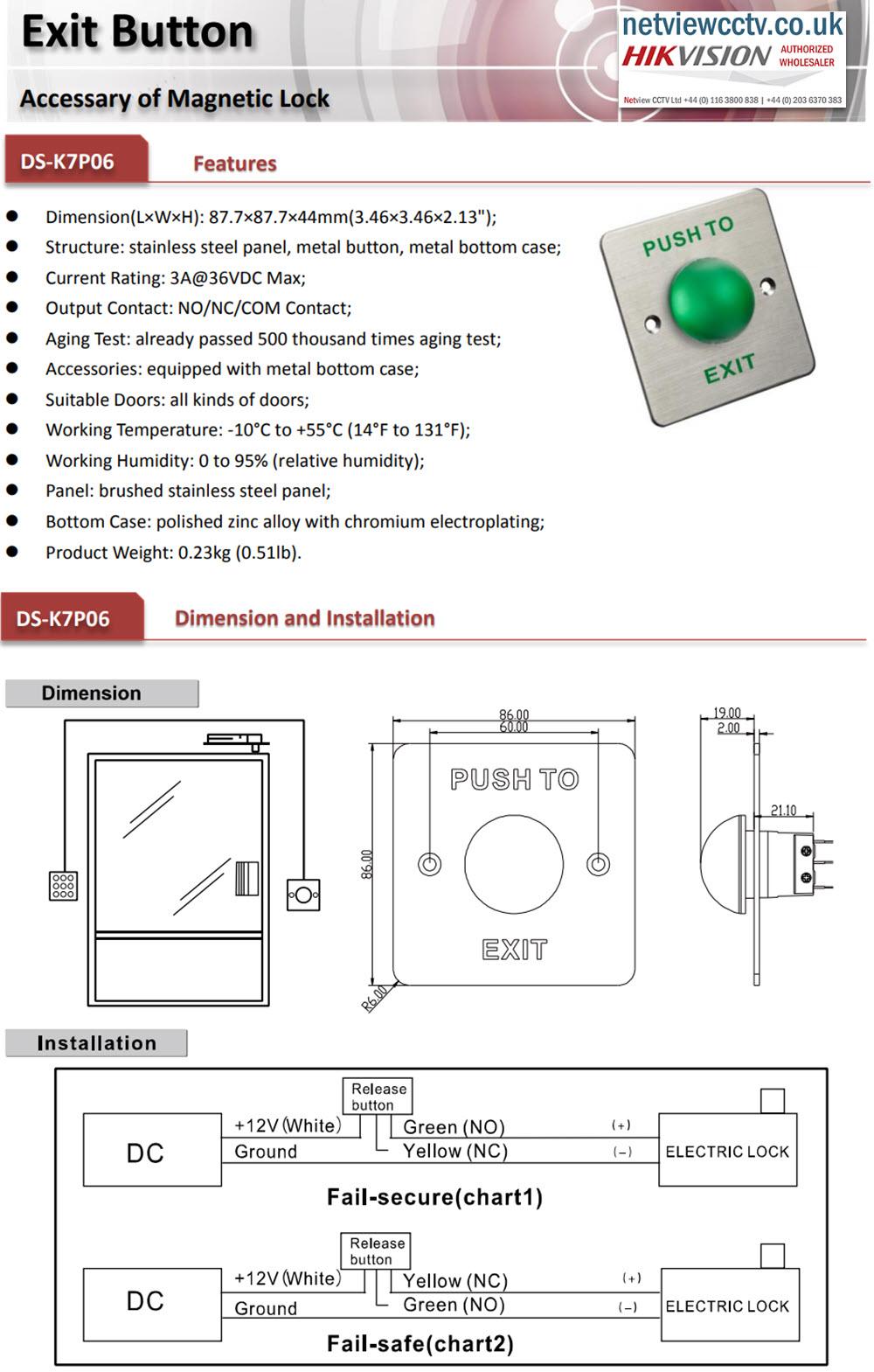

Hikvision brushed stainless steel panel push to exit button. Suitable for all kinds of narrow doorframes. Dimensions of this button is 87.7×87.7×44mm(3.46×3.46×2.13").
Feature:
- Dimension(L×W×H): 87.7×87.7×44mm(3.46×3.46×2.13")
- Structure: stainless steel panel, metal button, metal bottom case
- Current Rating: 3A@36VDC Max
- Output Contact: NO/NC/COM Contact
- Aging Test: already passed 500 thousand times aging test
- Accessories: equipped with metal bottom case
- Suitable Doors: all kinds of doors
- Working Temperature: -10°C to +55°C (14°F to 131°F)
- Working Humidity: 0 to 95% (relative humidity)
- Panel: brushed stainless steel panel
- Bottom Case: polished zinc alloy with chromium electroplating
- Product Weight: 0.23kg (0.51lb)
MPN: 302900567EAN: 6954273636098UPC: 6954273636098
Building a Martyn’s Law lockdown system?
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →
| General | |
| Output Contact: | NO/NC/COM Contact |
| Aging Test: | already passed 500 thousand times aging test |
| Structure: | stainless steel panel, metal button, metal bottom case |
| Current Rating: | 3A@36VDC Max |
| Accessories: | equipped with metal bottom case |
| Suitable Doors: | all kinds of narrow doorframes |
| Panel: | brushed stainless steel panel |
| Bottom Case: | polished zinc alloy with chromium electroplating |
| Working Humidity: | 0 to 95% (relative humidity) |
| Working Temperature: | -20°C to +65°C (-4°F to +149°F) |
| Dimensions (L×W×H): | 87.7mm × 87.7mm × 44mm(3.46''×3.46''×2.13") |
| Weight: | 0.23kg (0.51lb) |
